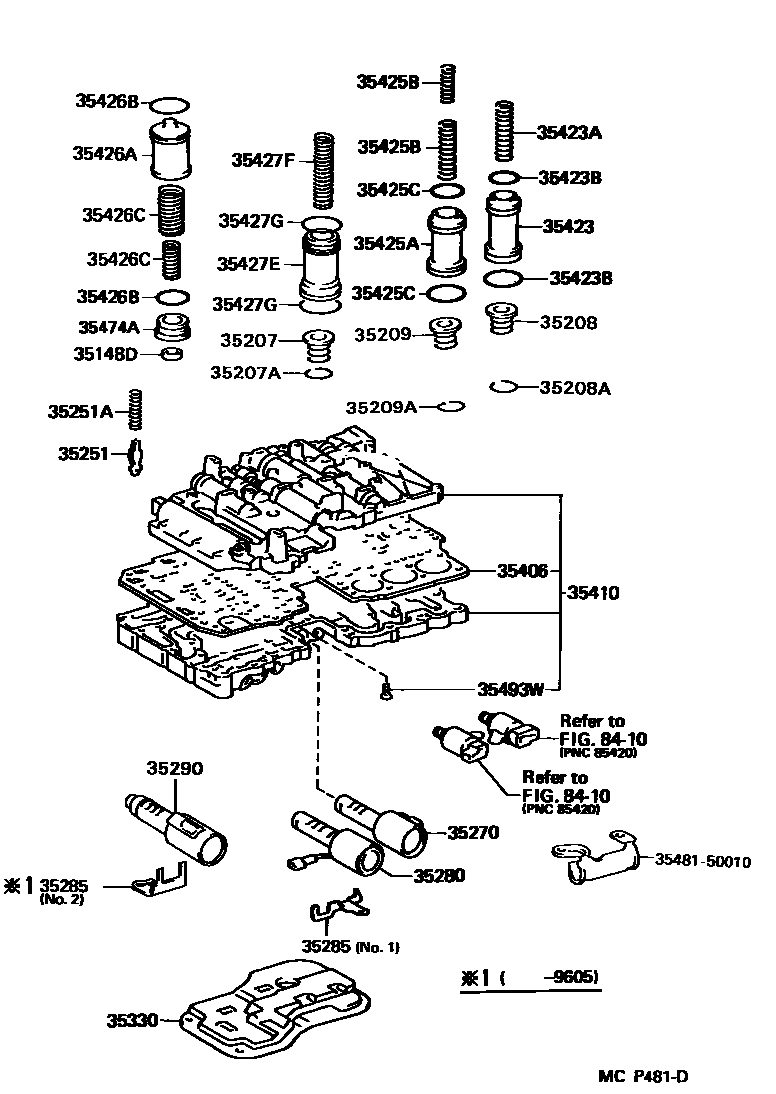

VALVE BODY & OIL STRAINER (ATM)
35148DGASKET (FOR C-O ACCUMULATOR PISTON)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270SOLENOID ASSY, SHIFT CONTROL
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
NO.1
NO.2
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35406PLATE SUB-ASSY, VALVE BODY
35410BODY ASSY, TRANSMISSION VALVE
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPR
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
OUTER
INNER
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
sub90301-24010
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
OUTER
INNER
INNER
OUTER
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPR
35474ACOVER, ACCUMULATOR
sub35474-30010
35493WSEAT, VALVE BODY
8410
3548150010BODY, GOVERNOR
main35481-50010
32 parts on this diagram · 8 diagrams in section
