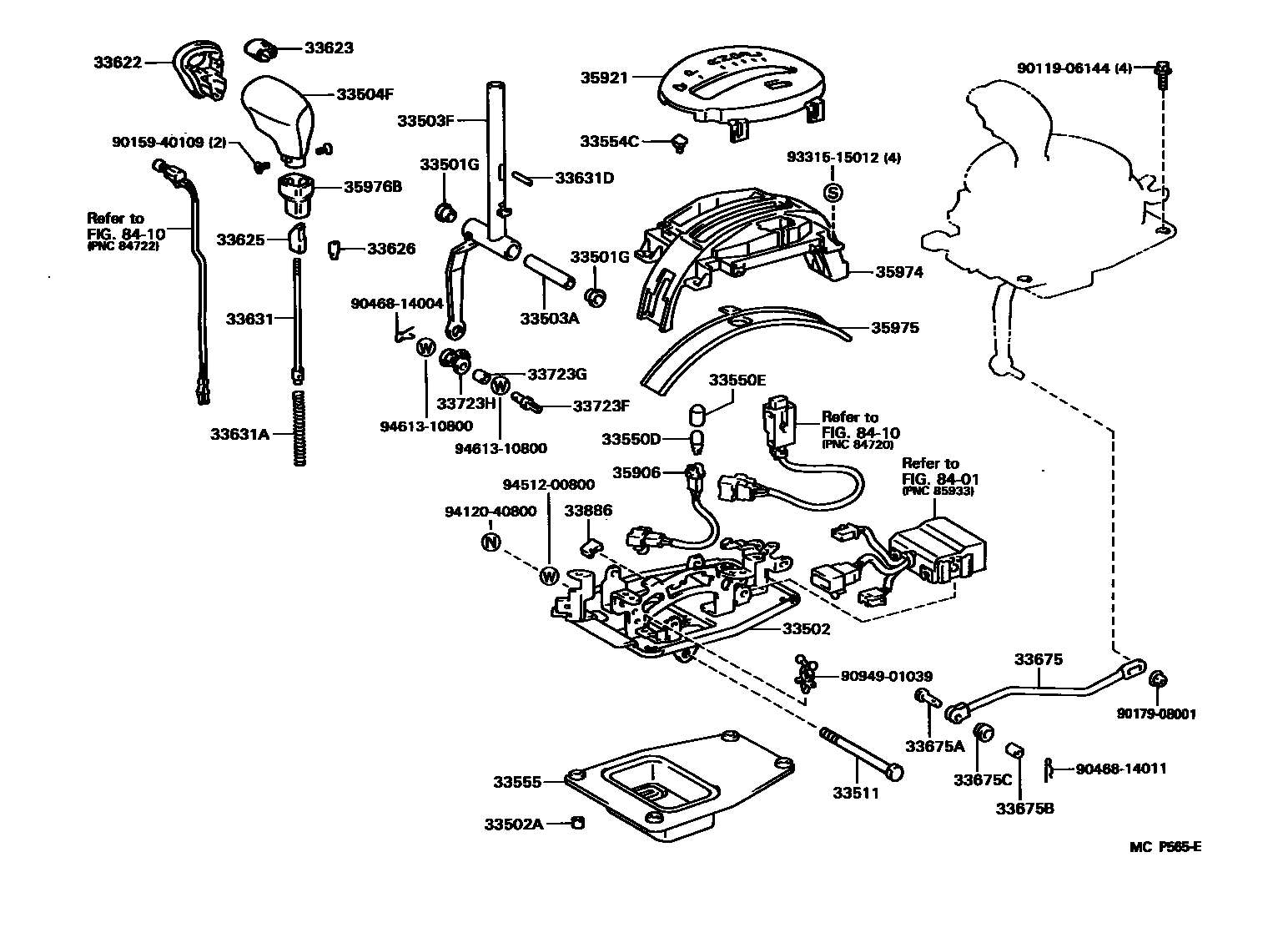

SHIFT LEVER & RETAINER
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33503ACOLLAR(FOR SHIFT LEVER)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,2#
BLACK,TRIM2#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
12V 1.7W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33555BOOT, SHIFT LEVER
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33675ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33886STOPPER, SHIFT LEVER
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-12130
35921PLATE, CONTROL POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8401
8410
9011906144
main90119-06144
9015940109
main90159-40109
9017908001
main90179-08001
9046814004
main90468-14004
9046814011
main90468-14011
9094901039
main90949-01039
9331515012
main93315-15012
9412040800
main94120-40800
9451200800
main94512-00800
9461310800
main94613-10800
43 parts on this diagram · 3 diagrams in section
