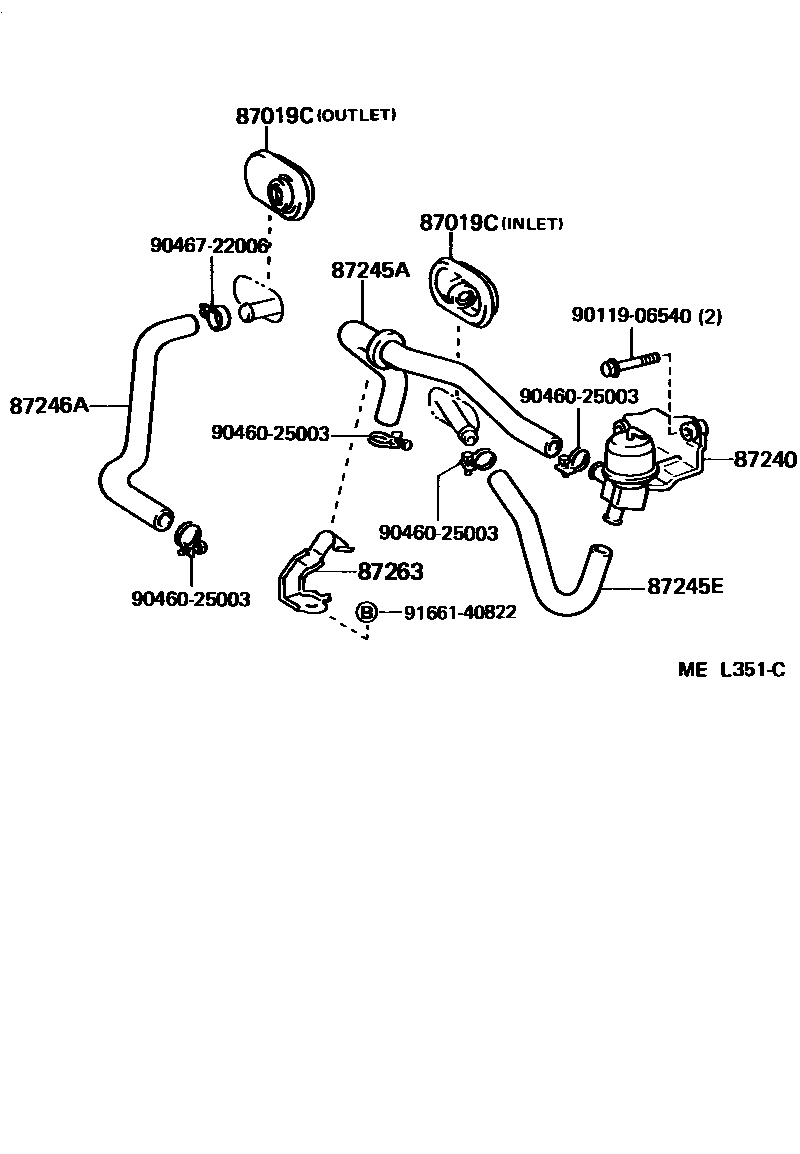

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01272iMA70198808-199305

INLET

main90480-01337iMA70..RHD198808-199305

OUTLET

main90480-31007iMA70..LHD198808-199305

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-14140iMA70..LHD198808-199305

main87240-24020iMA70..RHD198808-199305

87245AHOSE, HEATER WATER, INLET A

main87245-1B251iMA70..LHD198808-199305

main87245-24180iMA70..RHD198808-199305

87245EHOSE, HEATER WATER, INLET E

main87245-1B220iMA70..LHD198808-199305

main87245-24130iMA70..RHD198808-199305

87246AHOSE, HEATER WATER, OUTLET A

main87245-1B262iMA70..LHD198808-199305

main87245-24190iMA70..RHD198808-199305

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-14170iMA70198808-199305

9011906540

main90119-06540

9046025003

main90460-25003

9046722006

main90467-22006

9166140822

main91661-40822

10 parts on this diagram · 2 diagrams in section
