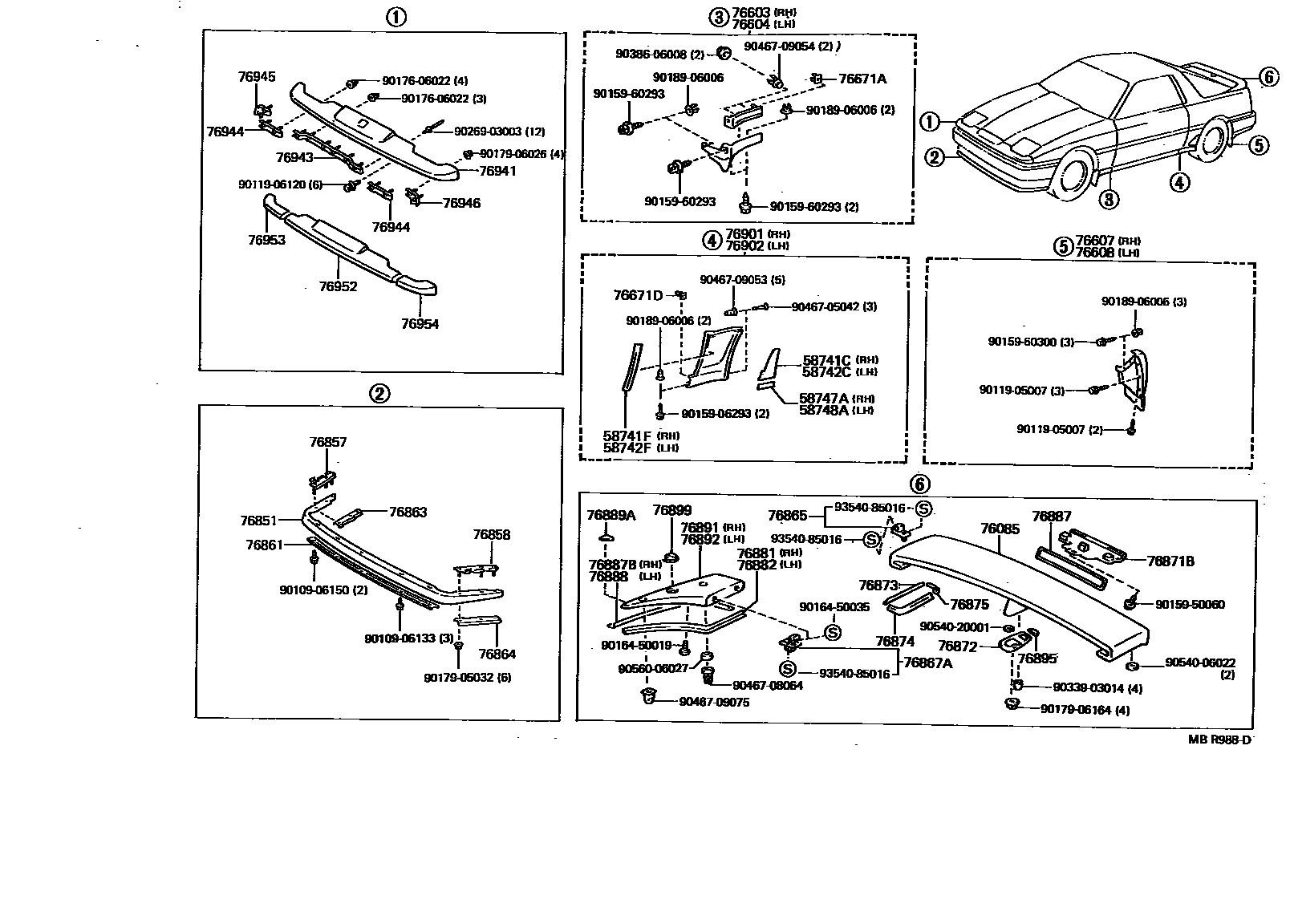

MUDGUARD & SPOILER
58741CPROTECTOR, QUARTER PANEL, RH
58741FPROTECTOR, REAR WHEEL EXTENSION, RH
58742CPROTECTOR, QUARTER PANEL, LH
58742FPROTECTOR, REAR WHEEL EXTENSION, LH
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76671ACLIP, FRONT FENDER MUDGUARD
sub76671-14020
76671DCLIP, SIDE MUDGUARD
sub76671-14020
76851COVER, FRONT SPOILER
W/O(BRAKE DUCT)
W(BRAKE DUCT)
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76861RETAINER, FRONT SPOILER, LOWER NO.1
W/O(BRAKE DUCT)
W(BRAKE DUCT)
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76865RETAINER, REAR SPOILER, NO.1
76867ARETAINER, REAR SPOILER, NO.3
76871BCOVER, REAR SPOILER
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
sub90999-91055
76874PROTECTOR, REAR SPOILER, NO.3
sub90999-91055
76875PROTECTOR, REAR SPOILER, NO.4
sub90999-91053
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
sub90999-91055
76887SEAL, REAR SPOILER
76888PROTECTOR, REAR SPOILER SIDE, NO.3
sub90999-91056
76889APROTECTOR, REAR SPOILER SIDE, NO.4
76891SPOILER, REAR NO.1
76892SPOILER, REAR NO.2
76895PROTECTOR, REAR SPOILER, NO.5
76899PROTECTOR, REAR SPOILER, SIDE NO.6
76901MUDGUARD SUB-ASSY, SIDE, RH
BLACK MICA,206
SUPER RED 2,3E5
GRAY M,167
BLUE MICA,8E3
BEIGE M,4K9
DARK BROWN MICA,4J7
DARK GREEN MICA,6L9
BLACK,202
RED MICA,3H4
SUPER SILVER 3 M,176
SUPER WHITE 3,043
RED MICA,3H8
BLUEISH GRAY M,182
DARK BLUE M M,8G5
SUPER WHITE 4,050
BLUE M,8J3
RED MICA,3K3
MEDIUM TORQUOISE M.,749
76902MUDGUARD SUB-ASSY, SIDE, LH
BLACK MICA,206
SUPER RED 2,3E5
GRAY M,167
BLUE MICA,8E3
BEIGE M,4K9
DARK BROWN MICA,4J7
DARK GREEN MICA,6L9
BRACK,202
RED MICA,3H4
SUPER SILVER 3 M,176
SUPER WHITE 3,043
RED MICA,3H8
BLUEISH GRAY M,182
DARK BLUE M M,8G5
SUPER WHITE 4,050
BLUE M.,8J3
RED MICA,3K3
MEDIUM TORQUOISE M.,749
76943RETAINER, FRONT FACIA, NO.1
76945RETAINER, FRONT FACIA, NO.3 RH
76946RETAINER, FRONT FACIA, NO.3 LH
76952ABSORBER, FRONT FACIA, NO.1
76953ABSORBER, FRONT FACIA, NO.2 RH
76954ABSORBER, FRONT FACIA, NO.2 LH
9010906133
main90109-06133
9010906150
main90109-06150
9011905007
main90119-05007
9011906120
main90119-06120
9015906293
main90159-06293
9015950060
main90159-50060
9015960293
main90159-60293
9015960300
main90159-60300
9016450019
main90164-50019
9016450035
main90164-50035
9017606022
main90176-06022
9017905032
main90179-05032
9017906026
main90179-06026
9017906164
main90179-06164
9018906006
main90189-06006
9026903003
main90269-03003
9033903014
main90339-03014
9038606008
main90386-06008
9046705042
main90467-05042
9046708064
main90467-08064
9046709053
main90467-09053
9046709054
main90467-09054
9046709075
main90467-09075
9054006022
main90540-06022
9054020001
main90540-20001
9056006027
main90560-06027
9354085016
main93540-85016
73 parts on this diagram · 1 diagram in section
