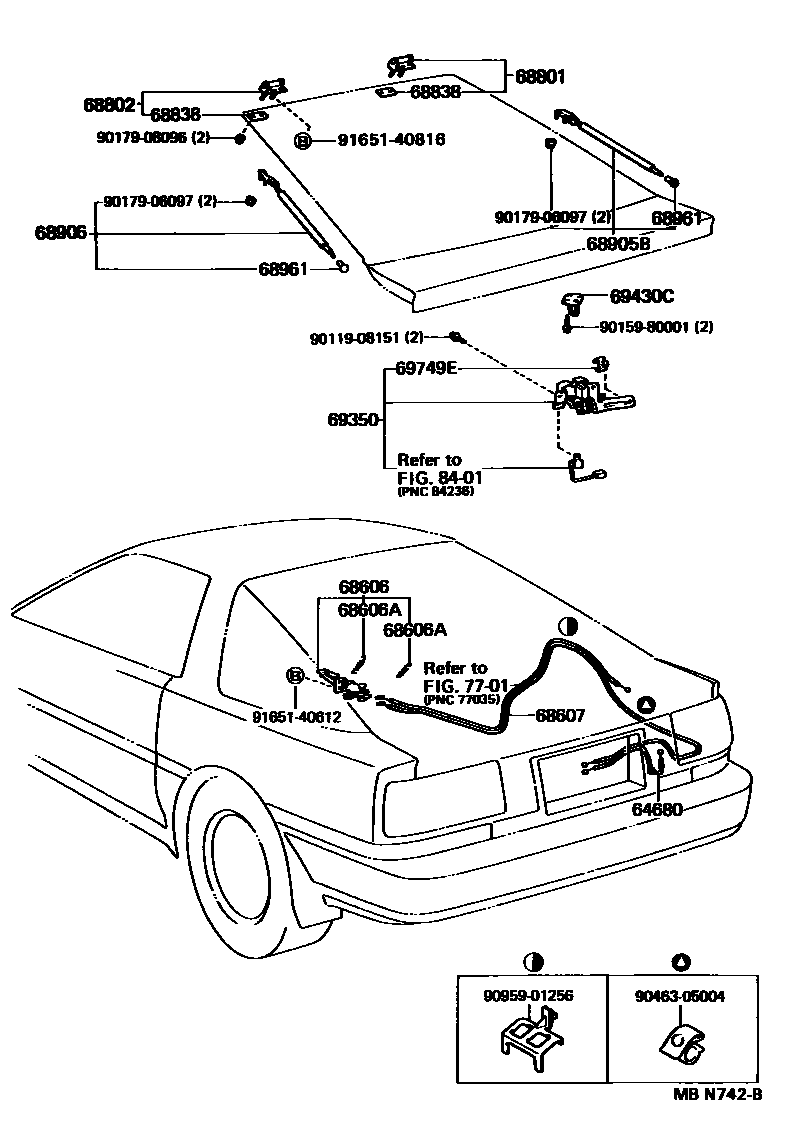

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-14020iMA70..C,EUR,GEN198808-199305

main64680-14080iMA70..ARL,V198808-199305

W(*LPL=SIDE)

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14060iMA70..LHD..TWT;MA70..LHD..(GEN,V)198808-199305

main64606-14070iMA70..RHD..(ARL,GEN)198808-199305

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004iMA70..LHD..TWT;MA70..ARL,GEN,V198808-199305

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14220iMA70..LHD..TWT;MA70..LHD..(GEN,V)198808-199305

main64607-14240iMA70..RHD..(ARL,GEN)198808-199305

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-14040iMA70198808-198810

sub68801-14041

main68801-14041iMA70198810-199305

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-14040iMA70198808-198810

sub68801-14041

main68801-14041iMA70198810-199305

68838PAD, BACK DOOR HINGE, NO.1

main68838-14031iMA70198808-199305

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-19036iMA70198808-199305

main68905-19046iMA70..C,GEN198808-199305

W(REAR SPOILER)

main68905-19046iMA70..ARL199008-199108

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-19016iMA70198808-199305

main68906-19026iMA70..C,EUR,GEN,V198808-199305

W(REAR SPOILER)

main68906-19026iMA70..ARL199008-199108

68961BOLT, BACK DOOR STAY

main68961-14030iMA70198808-199305

69350LOCK ASSY, BACK DOOR

main69350-14130iMA70198808-199008

sub69350-14120

main69350-14131iMA70199008-199305

sub69350-14121

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-14090iMA70198808-199305

69749ECLAMP, BACK DOOR LOCK LINK

main69749-12030iMA70198808-199305

7701

8401

9011908151

main90119-08151

9015980001

main90159-80001

9017906097

main90179-06097

9017908096

main90179-08096

9046305004

main90463-05004

9095901256

main90959-01256

9165140612

main91651-40612

9165140816

main91651-40816

23 parts on this diagram · 1 diagram in section
