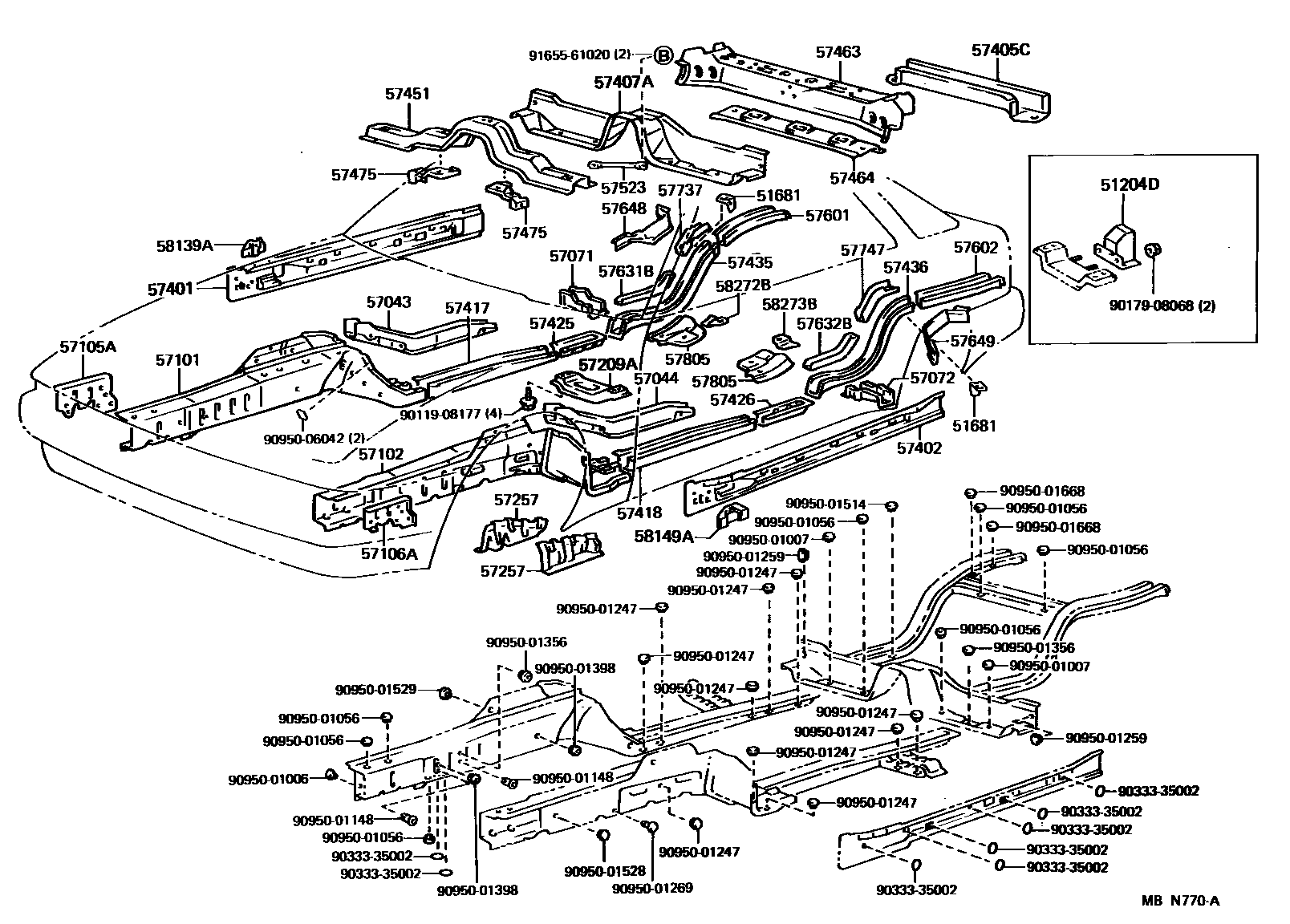

FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-24010iMA70..ARL,C¥6,000198808-199305

51681BRACKET, FLEXIBLE HOSE

main51681-14010iMA70¥620198808-199305

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-14010iMA70..SPR;MA70..LB..V¥16,100198808-199305

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-14010iMA70..SPR;MA70..LB..V¥16,100198808-199305

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14040iMA70¥9,900198808-199305

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14040iMA70¥9,900198808-199305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14901iMA70..V¥33,300198808-199305

main57101-14902iMA70..LB..(ARL,C,EUR,GEN)¥33,300198808-199305

main57101-14904iMA70..SPR..(ARL,C,EUR,GEN)¥33,300198808-199305

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14901iMA70..V¥33,700198808-199008

sub57102-14906¥42,700

main57102-14902iMA70..LB..(ARL,C,EUR,GEN)¥33,700198808-199008

sub57102-14905¥35,600

main57102-14904iMA70..SPR..(ARL,C,EUR,GEN)¥33,700198808-199008

sub57102-14907¥35,600

main57102-14905iMA70..LB..(ARL,C,GEN)¥35,600199008-199305

main57102-14906iMA70..V¥42,700199008-199305

main57102-14907iMA70..SPR..(ARL,C,GEN)¥35,600199008-199305

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14020iMA70¥3,400198808-199305

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14010iMA70¥3,400198808-199305

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-14310iMA70..5F..(EUR,GEN,V)¥4,310198808-198901

main57209-14311iMA70..5F..(EUR,GEN,V)¥7,400198901-199305

main57209-14320iMA70..4FC..(EUR,GEN,V)¥5,400198808-198901

main57209-24030iMA70..5F..TWC..ARL¥7,700198808-198901

main57209-24031iMA70..5F..TWC..(ARL,C)¥7,500198901-199305

main57209-24040iMA70..5F..TWT;MA70..4FC..ARL;MA70..LHD..4FC..C¥7,700198808-198901

main57209-24041iMA70..5F..TWT¥7,500198901-199305

main57209-24050iMA70..4FC..(ARL,C)¥7,500198901-199305

main57209-24060iMA70..4FC..(EUR,GEN,V)¥7,500198901-199305

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14060iMA70¥1,850198808-199305

RH

main57258-14060iMA70¥1,850198808-199305

LH

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14230iMA70..LB¥22,000198808-199305

main57401-14240iMA70..SPR¥28,000198808-199305

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14210iMA70..LB¥22,000198808-199305

main57402-14220iMA70..SPR¥28,000198808-199305

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-14070iMA70¥6,500198808-199305

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-14020iMA70¥14,400198808-199305

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-14060iMA70¥6,300198808-199305

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-14060iMA70¥6,300198808-199305

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57426-14030iMA70¥1,570198808-199305

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14030iMA70¥1,570198808-199305

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14060iMA70¥10,900198808-199305

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14050iMA70¥10,900198808-199305

57451MEMBER, FRONT FLOOR CROSS

main57451-14040iMA70¥6,700198808-199305

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14050iMA70¥12,800198808-199305

57464STRENGTH, CENTER FLOOR CROSSMEMBER

main57464-14020iMA70¥5,200198808-199305

57475PLATE, FRONT FLOOR CROSSMEMBER

main58103-14010iMA70¥1,430198808-199305

RH

main58104-14010iMA70¥2,020198808-199305

LH

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-14010iMA70¥1,410198808-199305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14150iMA70¥18,600198808-199305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14140iMA70¥18,600198808-199305

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-14030iMA70..V¥4,680198808-199305

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-14040iMA70..V¥4,680198808-199305

57648GUSSET, QUARTER WHEEL HOUSE, NO.1 RH

main57648-14010iMA70¥2,360198808-199305

57649GUSSET, QUARTER WHEEL HOUSE, NO.1 LH

main57649-14010iMA70¥2,360198808-199305

57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH

main57737-14020iMA70¥5,100198808-199305

57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH

main57747-14020iMA70¥5,100198808-199305

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-14040iMA70¥2,600198808-199305

RH

main57806-14040iMA70¥2,600198808-199305

LH

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-14010iMA70..RHD¥470198808-199305

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-14010iMA70..LHD¥470198808-199305

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58272-14020iMA70..V¥520198808-199305

main58272-14030iMA70..ARL¥520198808-199305

58273BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.5

main58273-14080iMA70..V¥520198808-199305

main58273-14090iMA70..ARL¥520198808-199305

9011908177

main90119-08177¥140

9017908068

main90179-08068¥100

9033335002

main90333-35002¥80

9095001006

main90950-01006¥260

9095001007

main90950-01007¥250

9095001056

main90950-01056¥230

9095001148

main90950-01148¥120

9095001247

main90950-01247¥170

9095001259

main90950-01259¥120

9095001269

main90950-01269¥170

9095001356

main90950-01356¥120

9095001398

main90950-01398¥100

9095001514

main90950-01514¥190

9095001528

main90950-01528¥300

9095001529

main90950-01529¥410

9095001668

main90950-01668¥120

9095006042

main90950-06042¥190

9165561020

main91655-61020¥190

58 parts on this diagram · 1 diagram in section
