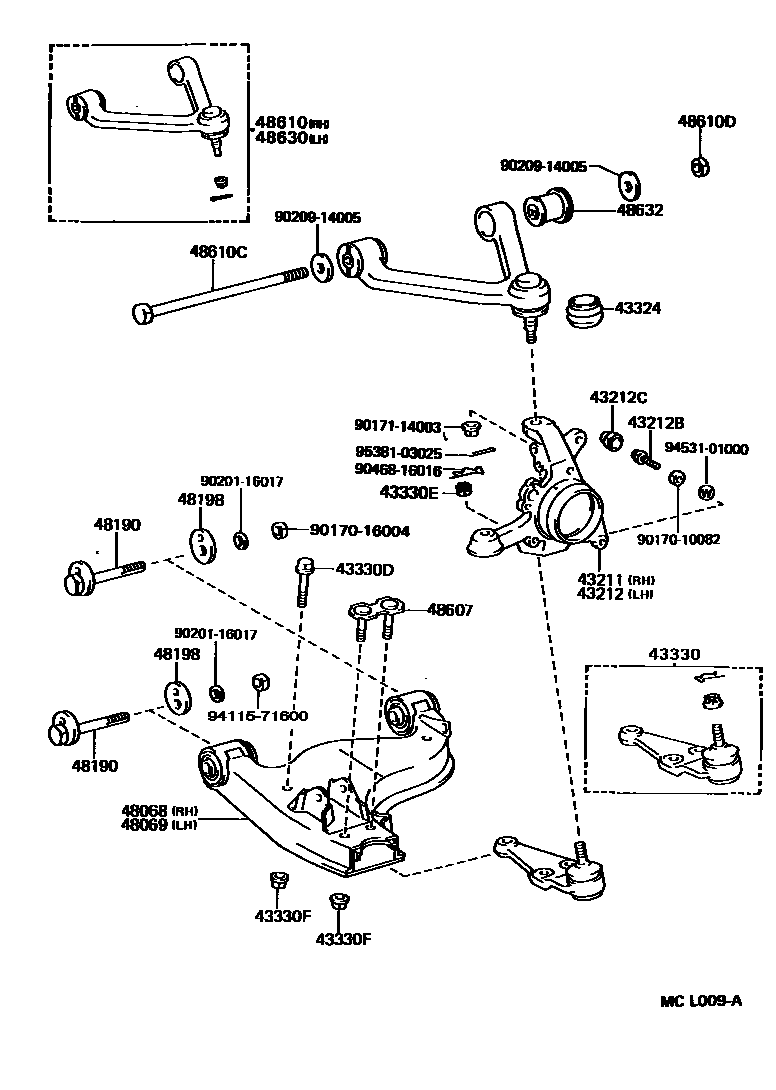

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-14051iMA70..EUR;MA70..LHD..C198808-198811

W(*66)

main43211-14052iMA70..EUR;MA70..LHD..C198811-199305

W(*66)

main43211-14052iMA70..C198908-199305

FINLAND SPEC OR W(*66)

main43211-14061iMA70..LHD..C;MA70..ARL,EUR,GEN,V198808-198811

main43211-14062iMA70..LHD..C;MA70..ARL,EUR,GEN,V198811-199305

43212KNUCKLE, STEERING, LH

main43212-14021iMA70..EUR;MA70..LHD..C198808-198811

W(*66)

main43212-14022iMA70..EUR;MA70..LHD..C198811-199305

W(*66)

main43212-14031iMA70..LHD..C;MA70..ARL,EUR,GEN,V198808-198811

main43212-14032iMA70..LHD..C;MA70..ARL,EUR,GEN,V198811-199305

43212BBOLT (FOR FRONT KNUCKLE STOPPER)

main90106-10002iMA70198808-199305

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020iMA70..LHD..C;MA70..ARL,EUR,GEN,V198808-199305

43324COVER, UPPER JOINT DUST

main43324-14010iMA70..LHD..C;MA70..ARL,EUR,GEN,V198808-199305

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19056iMA70198808-199305

sub43330-19057

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-14045iMA70198808-199305

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-16003iMA70198808-199305

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-14025iMA70198808-199305

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-14041iMA70198808-199008

main48068-14060iMA70..RHD..(ARL,C)199008-199305

main48068-14070iMA70..GEN,V;MA70..LHD..C199008-199305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-14041iMA70198808-199008

main48069-14060iMA70..RHD..(ARL,C)199008-199305

main48069-14070iMA70..GEN,V;MA70..LHD..C199008-199305

48190CAM ASSY, CAMBER ADJUST

main48190-14020iMA70198808-199305

RR

main48190-14030iMA70198808-199305

FR

48198CAM, CAMBER ADJUST, NO.2

main48198-14020iMA70198808-199305

RR

main48198-14030iMA70198808-199305

FR

48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT

main48607-14011iMA70198808-199305

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-19015iMA70198808-199305

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90101-14029iMA70198808-199305

48610DNUT(FOR SUSPENSION UPPER ARM)

main90170-14006iMA70198808-199112

main90170-14026iMA70199112-199305

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-19015iMA70198808-199305

48632BUSH, UPPER ARM

main48632-14010iMA70198808-199305

9017010082

main90170-10082

9017016004

main90170-16004

9017114003

main90171-14003

9020116017

main90201-16017

9020914005

main90209-14005

9046816016

main90468-16016

9411571600

main94115-71600

9453101000

main94531-01000

9538103025

main95381-03025

28 parts on this diagram · 1 diagram in section
