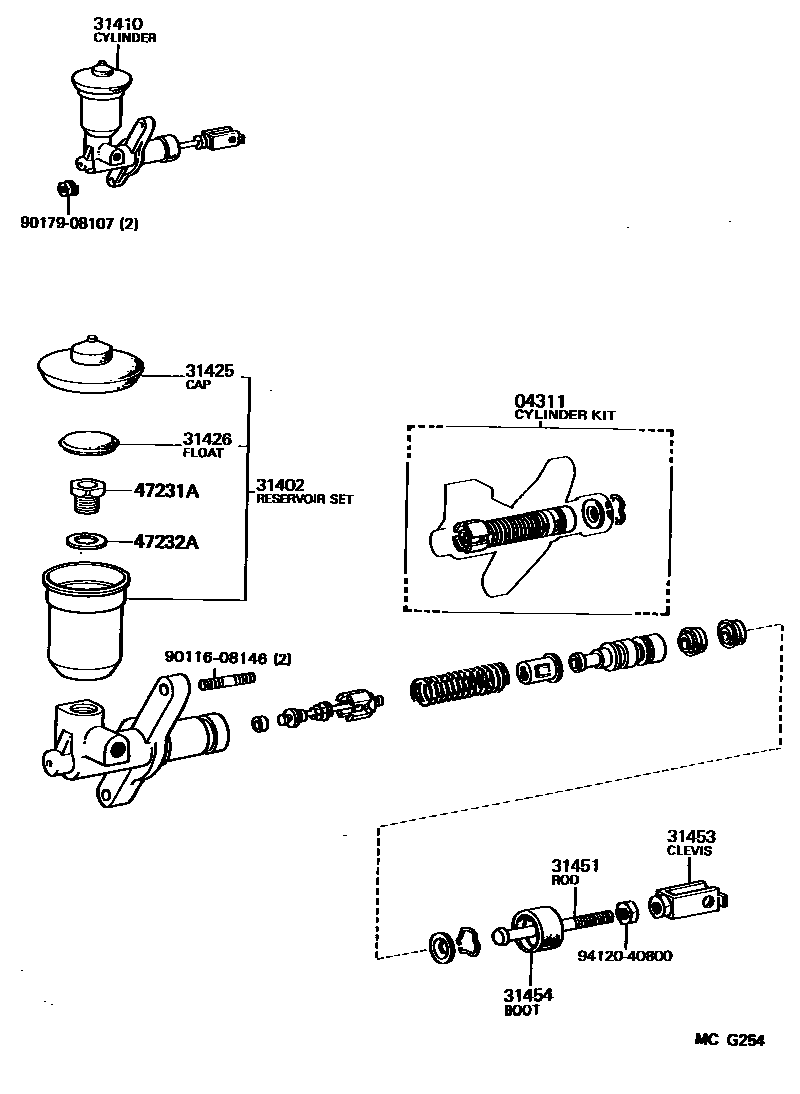

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iMA70..5F199008-199203

sub04311-12080

main04311-12080iMA70..5F199203-199305

main04311-22050iMA70..5F198808-199008

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iMA70..5F..TWC;MA70..LHD..5F..TWT198808-199008

main31402-14020iMA70..RHD..5F..TWT198808-199008

main31402-14030iMA70..RHD..5F..TWT199008-199305

main31402-14040iMA70..5F..TWC;MA70..LHD..5F..C199008-199305

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14192iMA70..5F..TWC;MA70..LHD..5F..C198808-198811

sub31410-14193

main31410-14193iMA70..5F..TWC;MA70..LHD..5F..TWT198811-199008

main31410-14212iMA70..RHD..5F..TWT198808-198811

sub31410-14213

main31410-14213iMA70..RHD..5F..TWT198811-199008

main31410-14280iMA70..RHD..5F..TWT199008-199305

main31410-14290iMA70..5F..TWC;MA70..LHD..5F..C199008-199305

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iMA70..5F198808-199305

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iMA70..5F198808-199305

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iMA70..5F198808-199008

main31451-35080iMA70..5F199008-199305

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iMA70..5F198808-198809

sub31404-14011

main31404-14011iMA70..5F198809-199008

main31404-14030iMA70..5F199008-199305

sub31404-22020

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iMA70..5F198808-199305

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iMA70..RHD..5F..TWT198808-199008

main47231-30010iMA70..5F..TWC;MA70..LHD..5F..TWT198808-199008

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iMA70..5F..TWC;MA70..LHD..5F..TWT198808-199008

9011608146

main90116-08146

9017908107

main90179-08107

9412040800

main94120-40800

13 parts on this diagram · 4 diagrams in section
