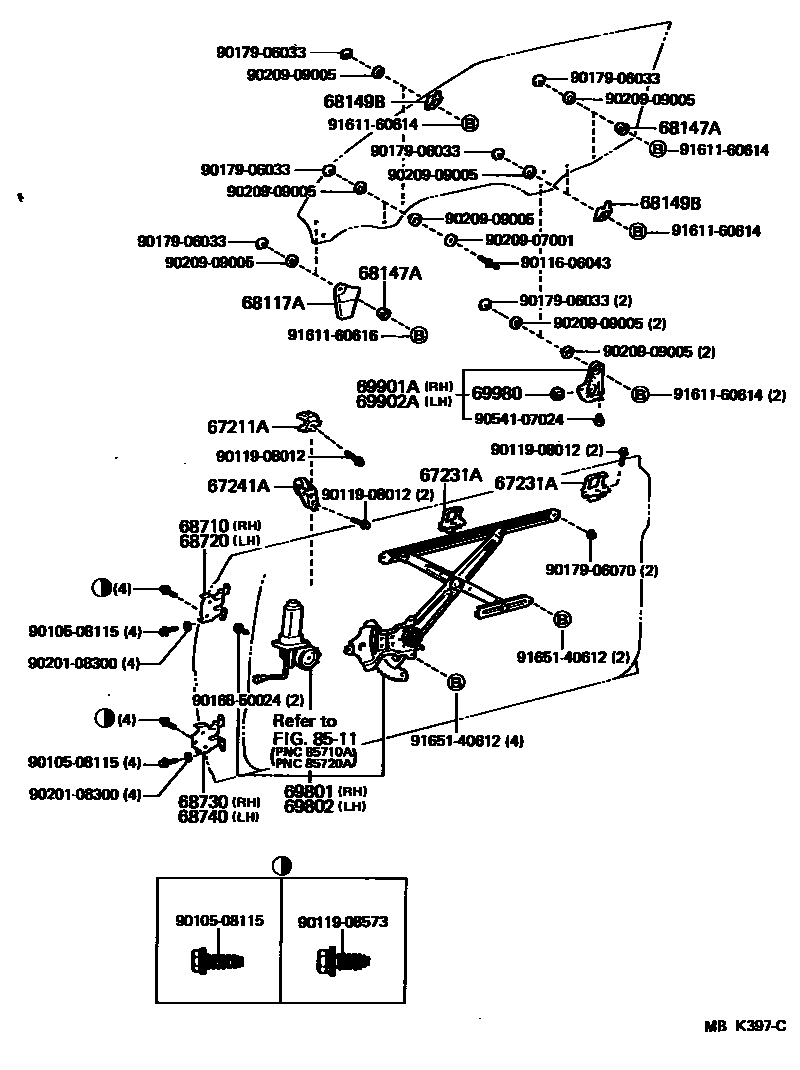

FRONT DOOR WINDOW REGULATOR & HINGE
67211ASTOP, FRONT DOOR WINDOW, UPPER
67231ASUPPORT, FRONT DOOR TRIM
RH
LH
67241ASTABILIZER, DOOR GLASS, INNER
sub67241-14021
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69980ROLLER ASSY, FRONT DOOR GLASS GUIDE
8511
9010508115
main90105-08115
9011606043
main90116-06043
9011908012
main90119-08012
9011908573
main90119-08573
9016850024
main90168-50024
9017906033
main90179-06033
9017906070
main90179-06070
9020108300
main90201-08300
9020907001
main90209-07001
9020909005
main90209-09005
9054107024
main90541-07024
9161160614
main91611-60614
9161160616
main91611-60616
9165140612
main91651-40612
30 parts on this diagram · 1 diagram in section
