MAT & CARPET

58520CARPET ASSY, FRONT FLOOR

main58510-14880-02iMA70..RHD..(ARL,GEN)198601-198602

MAROON,MAROON,TRIM3#

main58510-14880-03iMA70..RHD198601-198602

GRAY,MEDIUM GRAY,TRIM1#

main58510-14880-04iMA70..RHD198601-198602

BLUE,DEEP BLUE,TRIM8#

main58510-14880-05iMA70..RHD198601-198602

BEIGE,DARK BEIGE,TRIM4#

main58510-1B010-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub58510-1B010¥68,200

main58510-1B010-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub58510-1B010¥68,200

main58510-1B010-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub58510-1B010¥68,200

main58510-1B010-05iMA70..LHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub58510-1B010¥68,200

main58510-1B020-02iMA70..RHD..(ARL,GEN)198602-198808

MAROON,MAROON,TRIM3#

sub58510-1B020¥68,200

main58510-1B020-03iMA70..RHD198602-198808

GRAY,MEDIUM GRAY,TRIM1#

sub58510-1B020¥68,200

main58510-1B020-04iMA70..RHD198602-198808

BLUE,DEEP BLUE,TRIM8#

sub58510-1B020¥68,200

main58510-1B020-05iMA70..RHD198602-198808

BEIGE,DARK BEIGE,TRIM4#

sub58510-1B020¥68,200

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01iMA70198601-198808

BLACK,BLACK

sub90467-06016¥230

sub90467-07049¥90

58564CARPET, REAR FLOOR

main58570-14290-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub58570-14290¥52,200

main58570-14290-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub58570-14290¥52,200

main58570-14290-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub58570-14290¥52,200

main58570-14290-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub58570-14290¥52,200

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06070-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub90467-06070¥140

main90467-06070-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub90467-06070¥140

main90467-06070-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub90467-06070¥140

main90467-06070-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub90467-06070¥140

9046706068

main90467-06068¥170

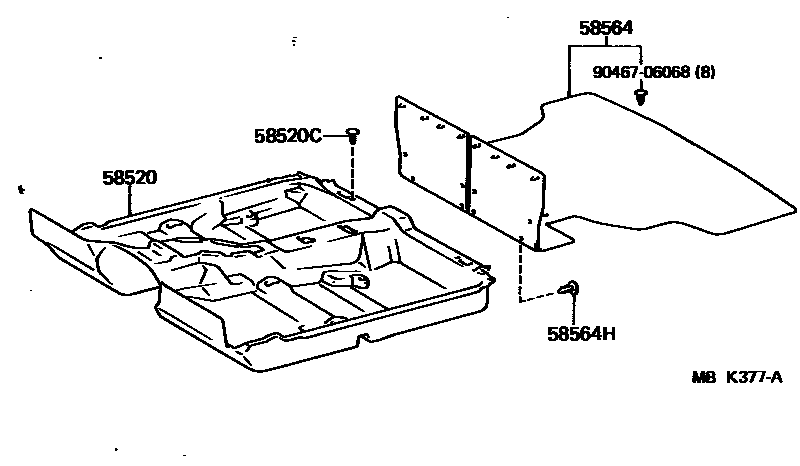

5 parts on this diagram · 1 diagram in section
