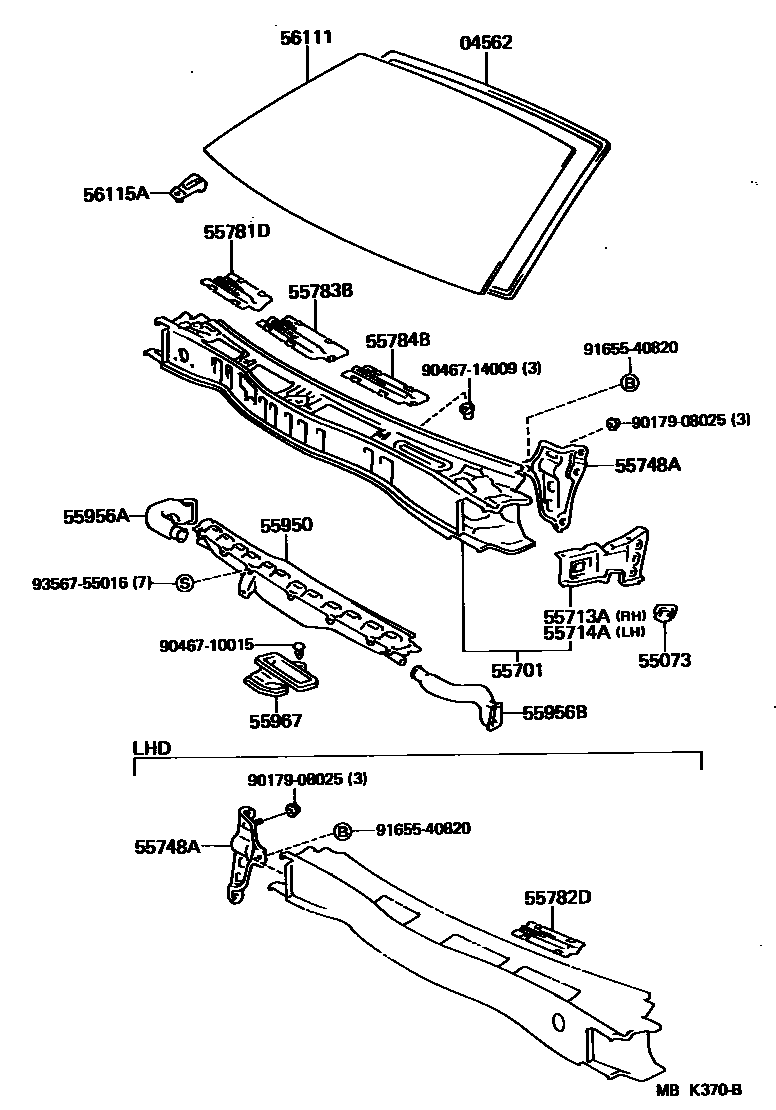

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iMA70¥2,390198601-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iMA70¥740198601-198808

55701PANEL SUB-ASSY, COWL

main55700-14770iMA70..RHD¥42,500198601-198808

sub55700-14760¥43,300

main55700-14780iMA70..LHD¥42,500198601-198808

55713APANEL, COWL TOP SIDE, RH

main55713-14100iMA70¥3,030198601-198808

55714APANEL, COWL TOP SIDE, LH

main55714-14100iMA70¥3,030198601-198808

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-14040iMA70..RHD¥2,840198601-198808

main55748-14050iMA70..LHD¥2,840198601-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14130iMA70..RHD¥820198601-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55781-14140iMA70..LHD¥810198601-198610

sub55781-14160

main55781-14160iMA70..LHD..EUR198606-198808

COLD SPEC

main55781-14160iMA70..LHD198610-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14090iMA70..RHD¥790198601-198808

main55783-14100iMA70..LHD¥3,700198601-198610

sub55783-14120¥3,680

main55783-14120iMA70..LHD..EUR¥3,680198606-198808

COLD SPEC

main55783-14120iMA70..LHD¥3,680198610-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14100iMA70..LHD¥3,700198601-198610

sub55784-14120¥3,680

main55784-14110iMA70..RHD¥860198601-198808

main55784-14120iMA70..LHD..EUR¥3,680198606-198808

COLD SPEC

main55784-14120iMA70..LHD¥3,680198610-198808

55950NOZZLE ASSY, DEFROSTER

main55951-14170iMA70..RHD¥4,160198601-198808

sub55951-14171¥4,140

main55951-14180iMA70..LHD¥4,160198601-198808

sub55951-14181¥4,140

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14040iMA70¥1,190198601-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14050iMA70¥1,190198601-198808

55967NOZZLE, DEFROSTER, LOWER

main55967-14010iMA70..RHD¥1,400198601-198808

main55967-14020iMA70..LHD¥1,400198601-198808

56111GLASS, WINDSHIELD

main56111-14410iMA70..LHD..EUG¥55,700198601-198701

*TZT,T=5.0,*TZT,T=5.0

sub56111-14420¥105,000

main56111-14411iMA70..LHD..EUG¥64,200198701-198808

*TZT,T=5.0,*TZT,T=5.0

sub56111-14451¥84,000

main56111-14420iMA70..GEN¥105,000198601-198701

*TL,T=5.3,*TL,T=5.3

sub56111-14440¥113,000

main56111-14421iMA70..GEN¥113,000198701-198808

*TL,T=5.3,*TL,T=5.3

sub56111-14441¥121,000

main56111-14430iMA70..ARL¥99,700198601-198701

*LAM,T=5.3,*LAM,T=5.3,SUN SHADE

main56111-14431iMA70..ARL¥108,000198701-198808

*LAM,T=5.3,*LAM,T=5.3,SUN SHADE

sub56111-14441¥121,000

main56111-14440iMA70..RHD..EUG¥113,000198601-198701

*TL,T=5.3,*TL,T=5.3,SUN SHADE

main56111-14441iMA70..GCC,GEN,SA¥121,000198701-198808

*TL,T=5.3,*TL,T=5.3,SUN SHADE

sub56111-14442¥121,000

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14010iMA70¥610198601-198808

9017908025

main90179-08025¥80

9046710015

main90467-10015¥120

9046714009

main90467-14009¥90

9165540820

main91655-40820¥140

9356755016

main93567-55016¥110

21 parts on this diagram · 1 diagram in section
