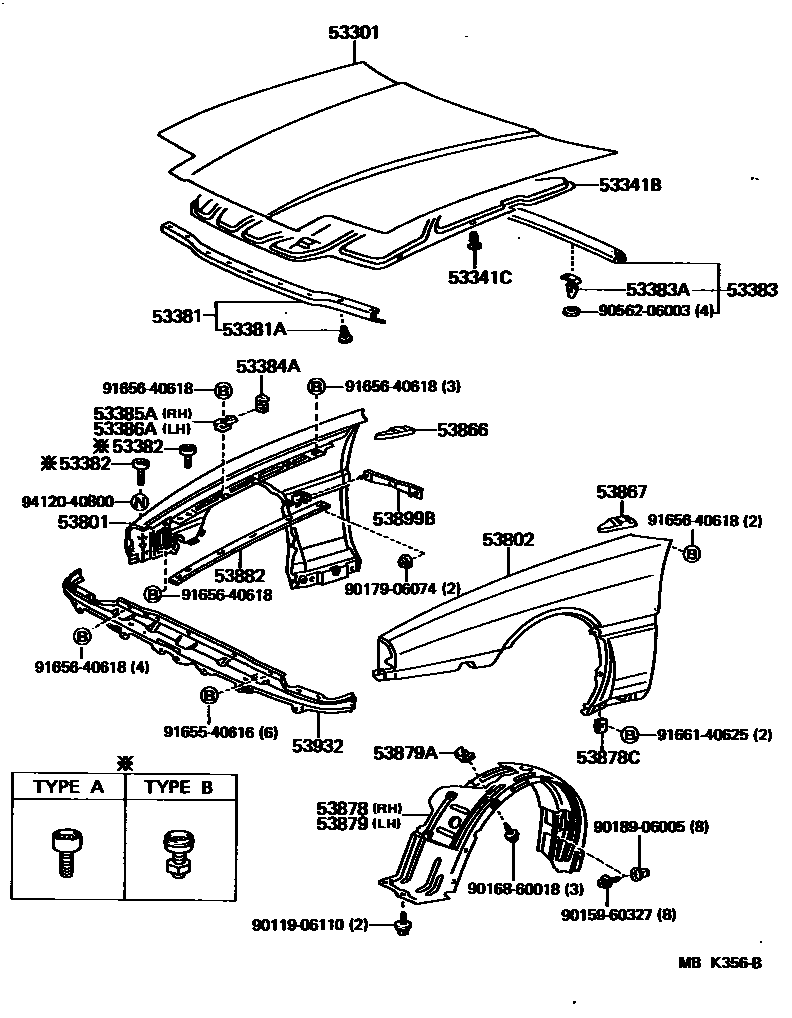

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
TYPE A
TYPE B
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
OD=13
OD=15
53382BUMPER, HOOD, FRONT
TYPE B
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
OUTSIDE
53384ABUMPER, FENDER TO HOOD
53385ARETAINER, HOOD BUMPER, RH
53386ARETAINER, HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878LINER, FRONT FENDER, RH
53878CSPACER, FRONT FENDER
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882PACKING, FRONT FENDER MAIN
53899BSUPPORT, FRONT FENDER PANEL
53932PANEL SUB-ASSY, FRONT END
9011906110
main90119-06110
9015960327
main90159-60327
9016860018
main90168-60018
9017906074
main90179-06074
9018906005
main90189-06005
9056206003
main90562-06003
9165540616
main91655-40616
9165640618
main91656-40618
9166140625
main91661-40625
9412040800
main94120-40800
32 parts on this diagram · 1 diagram in section
