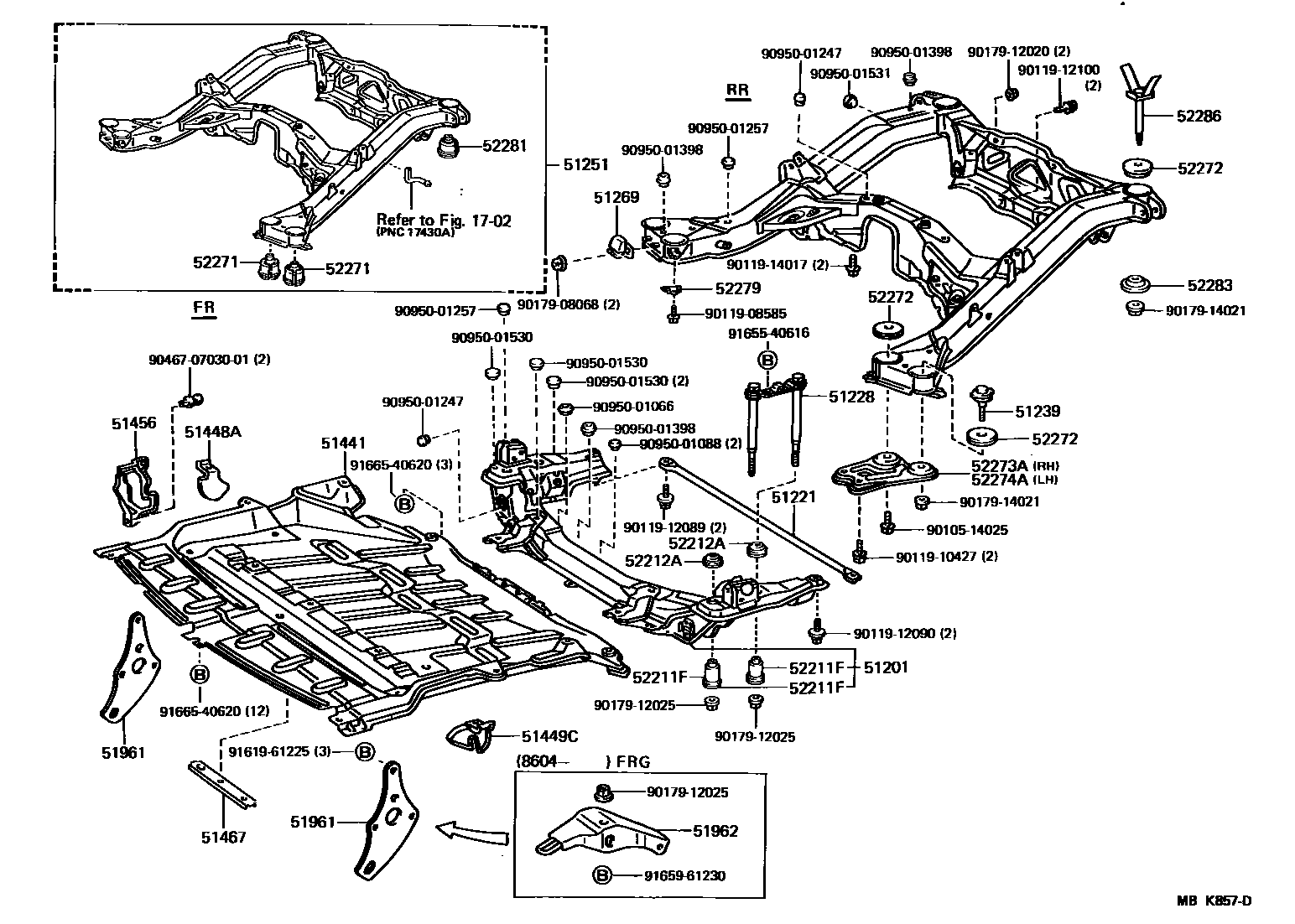

SUSPENSION CROSSMEMBER & UNDER COVER

1702

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14360iMA70..RHD198601-198703

sub51210-14020¥89,300

main51201-14370iMA70..LHD198601-198703

sub51210-14030¥89,300

main51210-14020iMA70..RHD¥89,300198703-198808

main51210-14030iMA70..LHD¥89,300198703-198808

51221CROSSMEMBER, FRONT SUSPENSION, NO.1

main51221-14010iMA70¥5,900198601-198808

sub51221-14012¥5,900

51228PLATE, SUSPENSION MEMBER SET

main51229-14040iMA70¥2,490198601-198808

51239PLATE, REAR SUSPENSION MEMBER SET

main51239-14010iMA70¥940198601-198808

51251MEMBER SUB-ASSY, REAR SUSPENSION

main51206-14060iMA70198601-198703

sub51270-14020¥78,100

main51270-14020iMA70¥78,100198703-198712

sub51270-14021¥77,700

main51270-14021iMA70¥77,700198712-198808

51269DAMPER, DIFFERENTIAL SUPPORT MEMBER

main51269-14010iMA70¥5,400198601-198808

51441COVER, ENGINE UNDER, NO.1

main51441-14110iMA70¥17,000198601-198808

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-14010iMA70..TWC¥650198601-198808

51449CCOVER, ENGINE SIDE UNDER, LH

main51449-14010iMA70..TWC¥690198601-198808

51456SEAL, ENGINE SIDE COVER, UPPER

main51456-14010iMA70..EUR¥670198601-198808

51467RETAINER, ENGINE UNDER COVER

main51467-14010iMA70..TWT¥400198708-198808

51961HOOK, NO.1

main51963-14100iMA70¥1,610198601-198808

51962HOOK, NO.2

main51093-14010iMA70..LHD..EUG¥4,500198604-198808

*FRG

main51093-14010iMA70..TWT¥4,500198708-198808

52211FCUSHION, BODY MOUNTING, FRONT UPPER

main52211-14010iMA70¥2,490198601-198808

52212ACUSHION, BODY MOUNTING, NO.2

main52212-14010iMA70¥660198601-198808

52271CUSHION, REAR SUSPENSION MEMBER

main52271-14020iMA70¥5,200198601-198808

INNER

main52271-14030iMA70¥5,400198601-198808

OUTER

sub52271-14050¥4,730

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-14020iMA70¥1,060198601-198808

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-14020iMA70¥2,840198601-198808

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-14010iMA70¥2,840198601-198808

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-14010iMA70¥470198601-198808

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-14020iMA70¥5,400198601-198808

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-14020iMA70¥1,090198601-198808

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-14020iMA70¥3,440198601-198808

sub52286-14021¥3,400

9010514025

main90105-14025¥670

9011908585

main90119-08585¥170

9011910427

main90119-10427¥230

9011912089

main90119-12089¥190

9011912090

main90119-12090¥190

9011912100

main90119-12100¥320

9011914017

main90119-14017¥410

9017908068

main90179-08068¥100

9017912020

main90179-12020¥160

9017912025

main90179-12025¥110

9017914021

main90179-14021¥260

904670703001

main90467-0703001

9095001066

main90950-01066¥210

9095001088

main90950-01088¥110

9095001247

main90950-01247¥170

9095001257

main90950-01257¥200

9095001398

main90950-01398¥100

9095001530

main90950-01530¥300

9095001531

main90950-01531¥310

9161961225

main91619-61225¥200

9165540616

main91655-40616¥120

9165961230

main91659-61230¥200

9166540620

main91665-40620¥120

47 parts on this diagram · 1 diagram in section
