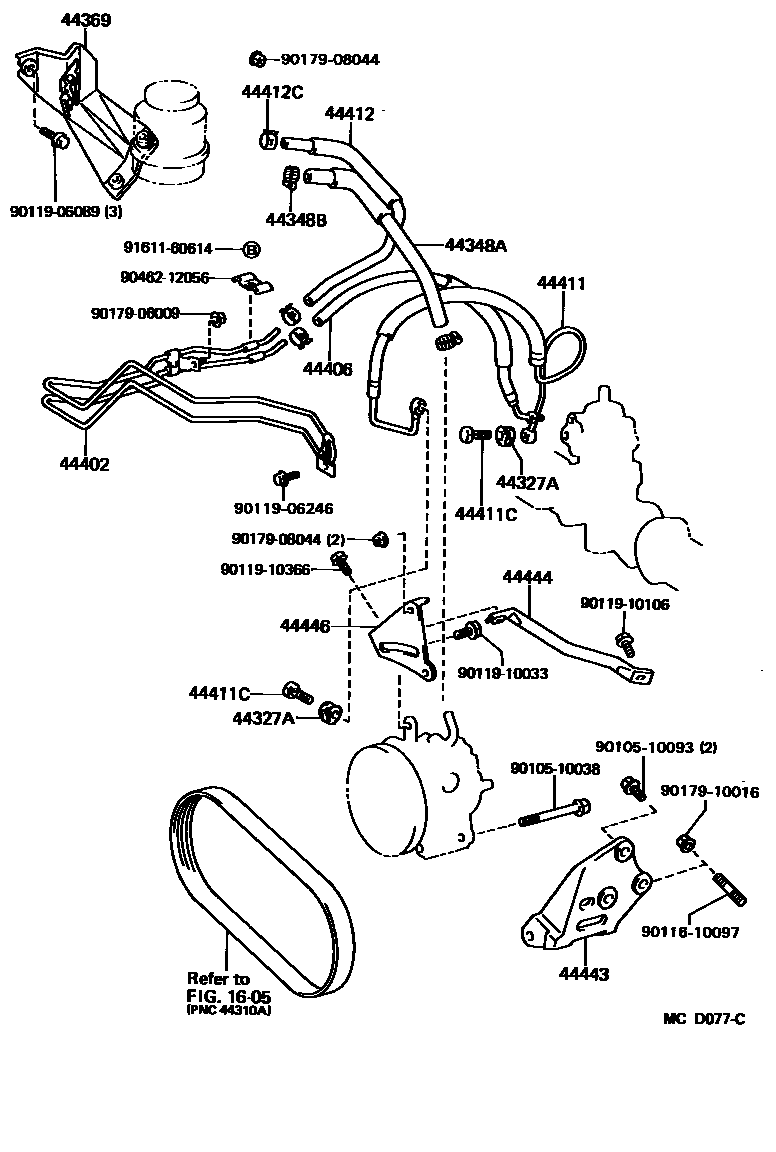

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMA70198601-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-14100iMA70..TWC198601-198808

main44348-14120iMA70..TWT198708-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iMA70198601-198712

main90467-21005iMA70198712-198808

sub90467-21010

44369BRACKET, OIL RESERVOIR, NO.1

main44369-14020iMA70..TWT198708-198808

main44390-14010iMA70..TWC198601-198808

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14150iMA70198601-198808

44406TUBE SUB-ASSY, RETURN

main44406-14050iMA70..RHD198601-198808

44411HOSE, PRESSURE FEED

main44411-14210iMA70..RHD198601-198808

sub44411-14211

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iMA70198601-198703

main90401-16013iMA70198703-198808

44412HOSE, RETURN

main44412-14200iMA70..TWC198601-198808

main44412-14220iMA70..TWT198708-198808

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iMA70198601-198808

sub90467-16019

44443BRACKET, PUMP

main44443-14010iMA70198601-198808

44444STAY, PUMP, REAR

main44444-14020iMA70198601-198808

44446STRUT, ADJUSTING

main44446-14020iMA70198601-198808

9010510038

main90105-10038

9010510093

main90105-10093

9011610097

main90116-10097

9011906089

main90119-06089

9011906246

main90119-06246

9011910033

main90119-10033

9011910106

main90119-10106

9011910366

main90119-10366

9017906009

main90179-06009

9017908044

main90179-08044

9017910016

main90179-10016

9046212056

main90462-12056

9161160614

main91611-60614

27 parts on this diagram · 2 diagrams in section
