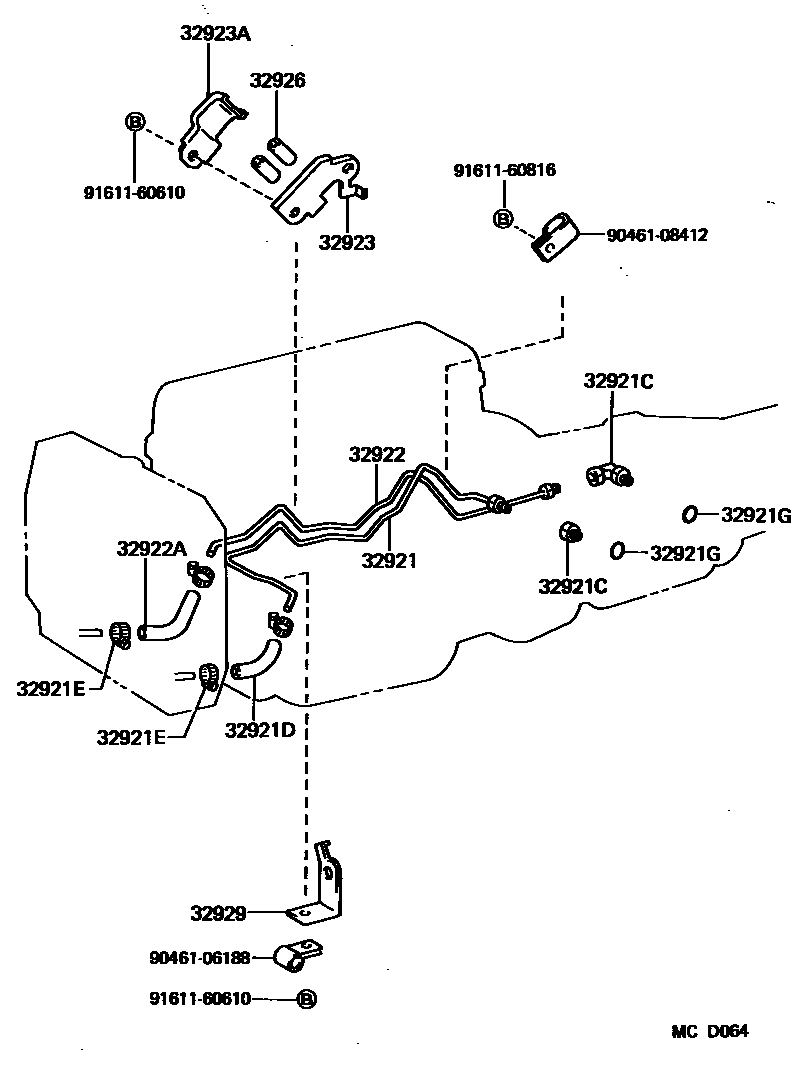

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-14220iMA70..4FC..TWC198601-198808

main32921-14230iMA70..4FC..TWT198708-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-16020iMA70..4FC198601-198808

INLET

sub90404-16029

main90407-16009iMA70..4FC198601-198808

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-16017iMA70..4FC198601-198701

sub90445-16030

main90445-17065iMA70..4FC..TWT198708-198808

sub90445-17102

main90445-17066iMA70..4FC..TWC198701-198808

sub90445-17104

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iMA70..4FC198601-198701

main90467-16013iMA70..4FC198701-198808

sub90467-16022

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iMA70..4FC198601-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14220iMA70..4FC..TWC198601-198808

main32922-14230iMA70..4FC..TWT198708-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16022iMA70..4FC198601-198701

main90445-17065iMA70..4FC..TWC198701-198808

sub90445-17102

main90445-17066iMA70..4FC..TWT198708-198808

sub90445-17104

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14030iMA70..4FC198601-198808

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-14040iMA70..4FC198601-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iMA70..4FC198601-198808

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-14010iMA70..4FC198601-198808

main32929-24050iMA70..4FC198601-198808

W/COOLER

9046106188

main90461-06188

9046108412

main90461-08412

9161160610

main91611-60610

9161160816

main91611-60816

15 parts on this diagram · 2 diagrams in section
