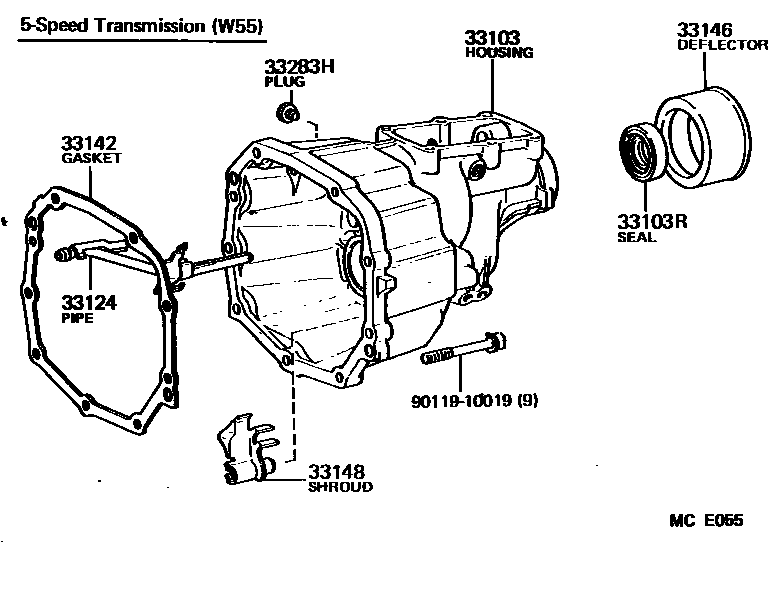

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14050iMA70..5F..(EUR,GCC,GEN,SA)198604-198808

W/*66

sub33103-14051

main33103-14060iMA70..5F..TWT198708-198808

sub33103-14061

main33103-22090iMA70..5F..TWC198601-198808

sub33103-22091

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38040iMA70..5F..TWC198609-198808

sub90311-38030

main90311-38043iMA70..5F198601-198609

sub90311-38040

main90311-40001iMA70..5F..TWT198708-198808

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iMA70..5F..TWC198601-198808

sub33106-35030

main33124-36010iMA70..5F..TWT198708-198808

33142GASKET, EXTENSION HOUSING(MTM)

main33142-22010iMA70..5F..TWC198601-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iMA70..5F198601-198808

sub33146-30020

33148SHROUD, GEAR, NO.1

main33148-22010iMA70..5F..TWC198601-198808

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iMA70..5F..TWC198601-198808

9011910019

main90119-10019

8 parts on this diagram · 2 diagrams in section
