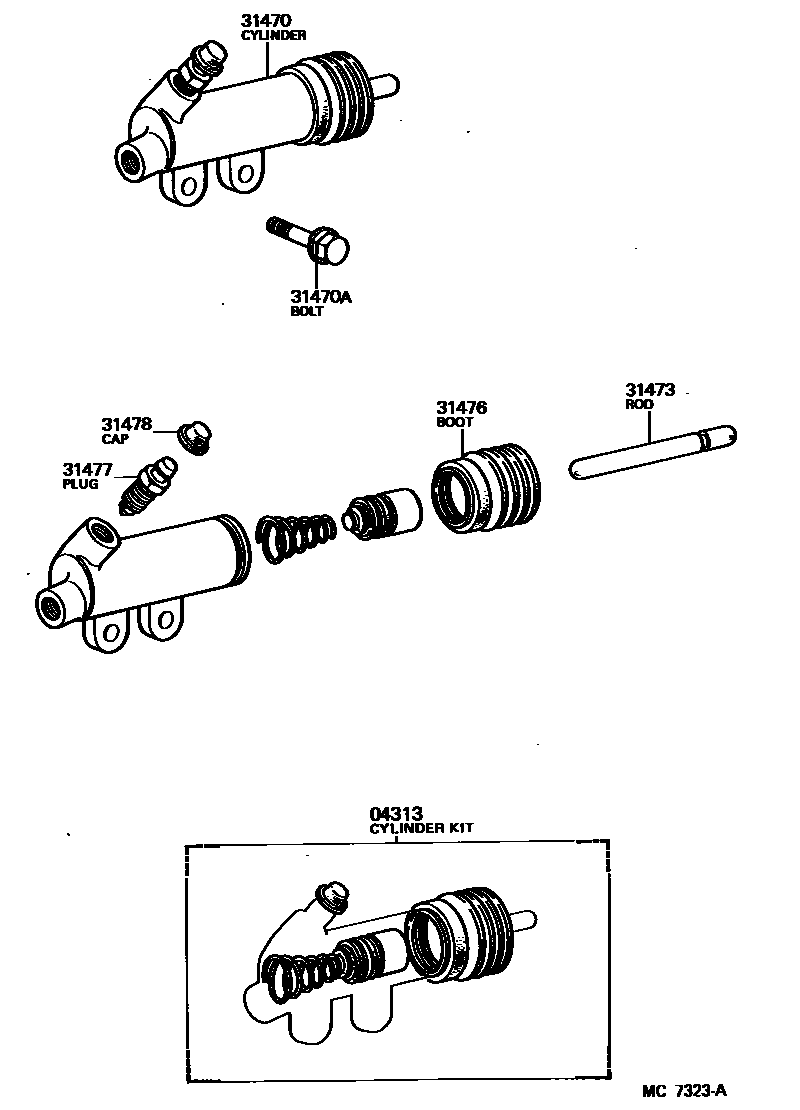

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14010iMA70..5F..TWT198708-198808

sub04313-14011

main04313-22020iMA70..5F..TWC198802-198808

sub04313-12030

main04313-30120iMA70..5F..TWC198601-198802

sub04313-26020

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iMA70..5F..TWT198708-198808

main31470-22090iMA70..5F..TWC198601-198802

main31470-30220iMA70..5F..TWC198802-198808

sub31470-30221

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iMA70..5F..TWT198708-198808

*8-1.25PX22-17.1

main91611-60825iMA70..5F..TWC198601-198808

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iMA70..5F..TWT198708-198808

main31473-22010iMA70..5F..TWC198601-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iMA70..5F198601-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iMA70..5F198601-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMA70..5F198601-198808

7 parts on this diagram · 1 diagram in section
