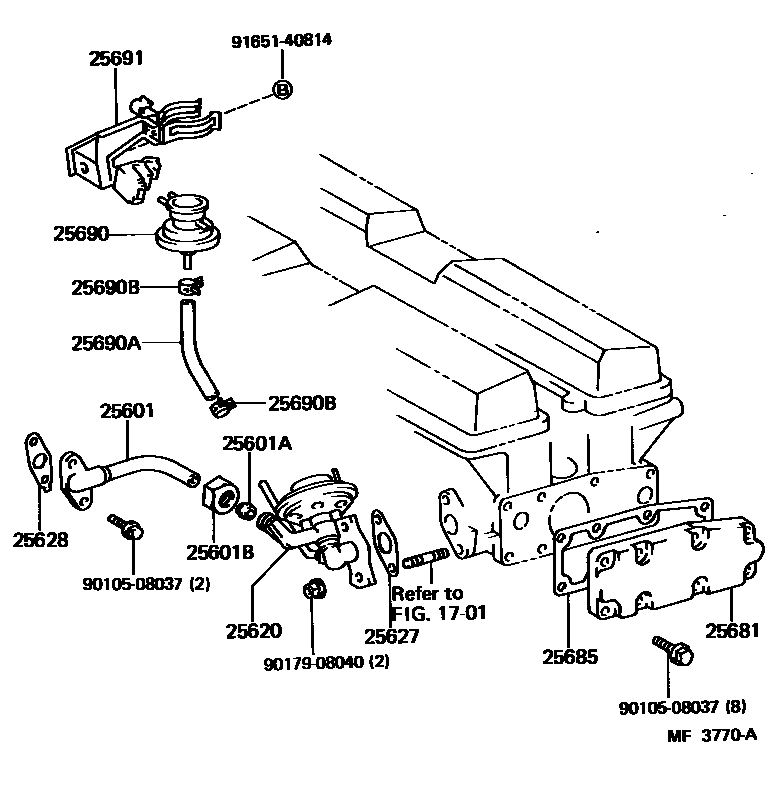

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-42010i7MG#..MA70..SDZ198601-198808

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i7MG#..MA70..SDZ198601-198808

sub90410-14003

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i7MG#..MA70..SDZ198601-198808

25620VALVE ASSY, EGR

main25620-42010i7MGTE..MA70198708-198808

main25620-42020i7MGE..MA70..SDZ198601-198808

25627GASKET, EGR VALVE

main25627-42010i7MG#..MA70..SDZ198601-198808

sub25627-42030

main25627-43030i7MGE..MA70..RHD;7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN)198601-198808

sub25627-42040

25628GASKET, EGR INLET

main25628-42010i7MG#..MA70198601-198808

sub25628-42020

25681COOLER, EGR, NO.1

main25681-42010i7MG#..MA70..SDZ198601-198808

25685GASKET, EGR COOLER, NO.1

main25685-42010i7MGE..MA70..SDZ198601-198607

sub25685-42011

main25685-42011i7MG#..MA70..SDZ198607-198808

25690MODULATOR ASSY, EGR VACUUM

main25690-42010i7MGTE..MA70198708-198808

main25870-42010i7MGE..MA70..SDZ198601-198808

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-42010i7MG#..MA70..SDZ198601-198808

25690BCLIP(FOR EGR VACUUM MODULATOR)

main90467-11009i7MG#..MA70..SDZ198601-198802

sub96135-51100

main90467-11049i7MG#..MA70..SDZ198802-198808

sub90467-11009

25691BRACKET, EGR VACUUM MODULATOR

main25691-42010i7MG#..MA70..SDZ198601-198808

9010508037

main90105-08037

9017908040

main90179-08040

9165140814

main91651-40814

16 parts on this diagram · 2 diagrams in section
