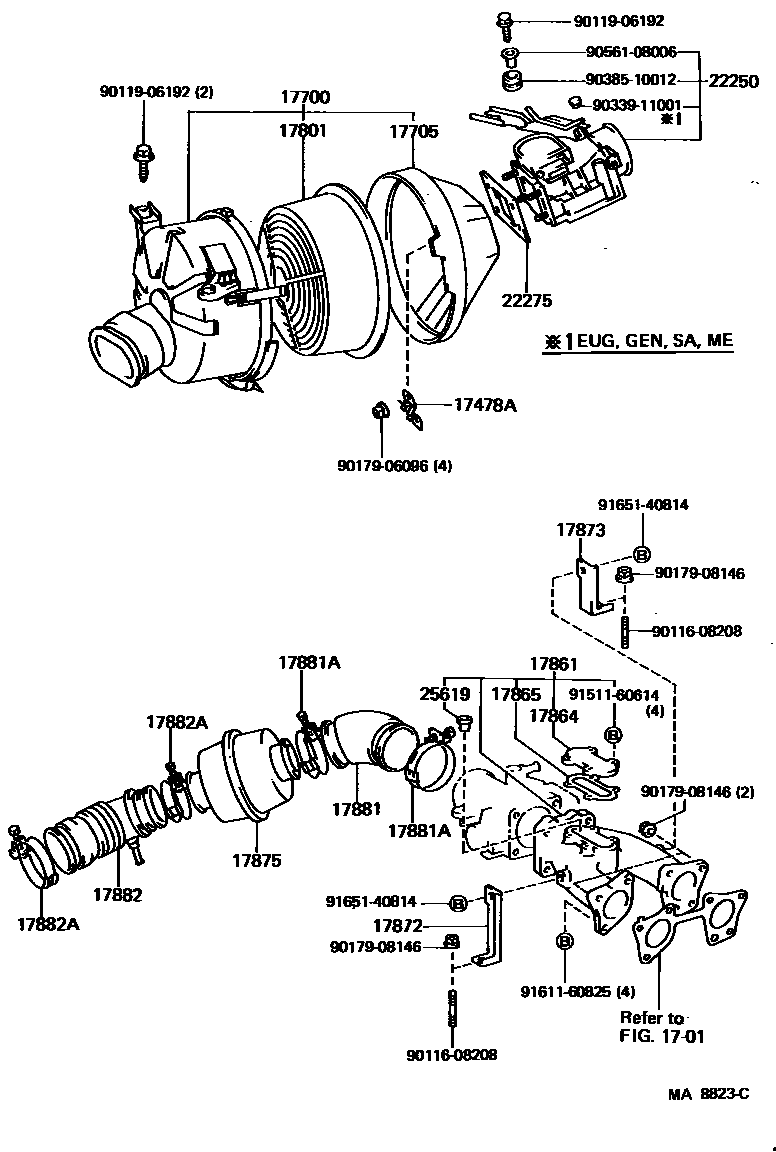

AIR CLEANER
1701
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
17864COVER, INTAKE AIR CONNECTOR
17865GASKET, INTAKE AIR CONNECTOR COVER
sub17865-42020
17873BRACKET, INTAKE AIR CONNECTOR, NO.2
sub17873-42021
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
ENGINE SIDE;PIPE SIDE
ENGINE SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
AIR FLOW METER SIDE;PIPE SIDE
PIPE SIDE
AIR FLOW METER SIDE
22250METER ASSY, INTAKE AIR FLOW
main22250-42040i7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN);7MGE..MA70..RHD..(EUR,GEN,SA)198601-198808
22275GASKET, AIR FLOW METER
25619TUBE, EGR INLET
9011608208
main90116-08208
9011906192
main90119-06192
9017906096
main90179-06096
9017908146
main90179-08146
9033911001
main90339-11001
9038510012
main90385-10012
9056108006
main90561-08006
9151160614
main91511-60614
9161160825
main91611-60825
9165140814
main91651-40814
28 parts on this diagram · 2 diagrams in section
