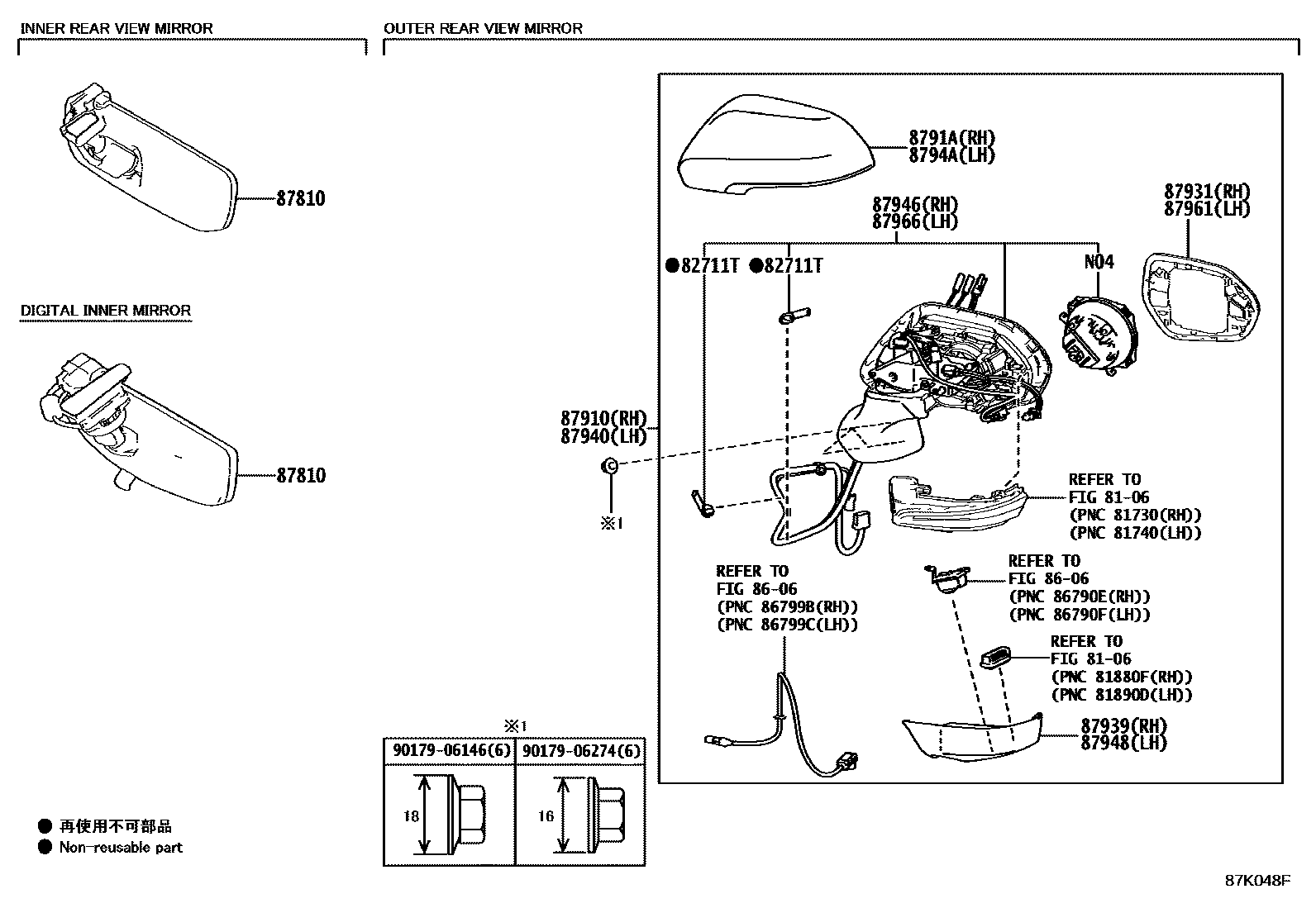

MIRROR

0001 1 0002 1

8106

82711TCLAMP, WIRING HARNESS

main82711-2C280iJPD20202108-202411

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WS30iJPD20202108-202212

main87840-0W460iJPD20202212-202411

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-62170-A2iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87910-62170-B0iJPD20202108-202304

PRECIOUS SILVER,1J6

main87910-62170-B2iJPD20202108-202304

PRECIOUS METAL,1L5

main87910-62170-C0iJPD20202108-202304

PRECIOUS BLACK,219

main87910-62170-C1iJPD20202108-202304

BLACK,202

main87910-62170-D0iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87910-62170-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main87910-62170-J1iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

main87910-62260-A0iJPD20202401-202411

PRECIOUS WHITE PEARL,090

main87910-62260-B0iJPD20202401-202411

PRECIOUS SILVER,1J6

main87910-62260-B1iJPD20202401-202411

PRECIOUS METAL,1L5

main87910-62260-C0iJPD20202401-202411

PRECIOUS BLACK,219

main87910-62260-C1iJPD20202401-202411

BLACK,202

main87910-62260-D0iJPD20202401-202411

EMOTIONAL RED 2,3U5

main87910-62260-J0iJPD20202401-202411

DK.BLUE MC.,8S6

main87910-62260-J1iJPD20202401-202411

FORCE BLUE MULTIPLE LAYER,8Y7

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30F70-A1iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main8791A-30F70-B1iJPD20202108-202304

PRECIOUS SILVER,1J6

main8791A-30F70-B3iJPD20202108-202304

PRECIOUS METAL,1L5

main8791A-30F70-C0iJPD20202108-202304

BLACK,202

main8791A-30F70-C1iJPD20202108-202304

PRECIOUS BLACK,219

main8791A-30F70-D3iJPD20202108-202304

EMOTIONAL RED 2,3U5

main8791A-30F70-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main8791A-30F70-J3iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

87931OUTER MIRROR, RH

main87931-10860iJPD20202108-202304

87939COVER, OUTER MIRROR HOLE, RH

main87939-30F90-A1iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87939-30F90-B1iJPD20202108-202304

PRECIOUS SILVER,1J6

main87939-30F90-B3iJPD20202108-202304

PRECIOUS METAL,1L5

main87939-30F90-C0iJPD20202108-202304

BLACK,202

main87939-30F90-C1iJPD20202108-202304

PRECIOUS BLACK,219

main87939-30F90-D3iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87939-30F90-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main87939-30F90-J3iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-62170-A2iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87940-62170-B0iJPD20202108-202304

PRECIOUS SILVER,1J6

main87940-62170-B2iJPD20202108-202304

PRECIOUS METAL,1L5

main87940-62170-C0iJPD20202108-202304

PRECIOUS BLACK,219

main87940-62170-C1iJPD20202108-202304

BLACK,202

main87940-62170-D0iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87940-62170-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main87940-62170-J1iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

main87940-62260-A0iJPD20202401-202411

PRECIOUS WHITE PEARL,090

main87940-62260-B0iJPD20202401-202411

PRECIOUS SILVER,1J6

main87940-62260-B1iJPD20202401-202411

PRECIOUS METAL,1L5

main87940-62260-C0iJPD20202401-202411

PRECIOUS BLACK,219

main87940-62260-C1iJPD20202401-202411

BLACK,202

main87940-62260-D0iJPD20202401-202411

EMOTIONAL RED 2,3U5

main87940-62260-J0iJPD20202401-202411

DK.BLUE MC.,8S6

main87940-62260-J1iJPD20202401-202411

FORCE BLUE MULTIPLE LAYER,8Y7

87946RETRACTOR, OUTER MIRROR, RH

main87908-62140-A2iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87908-62140-B0iJPD20202108-202304

PRECIOUS SILVER,1J6

main87908-62140-B1iJPD20202108-202304

PRECIOUS METAL,1L5

main87908-62140-C0iJPD20202108-202304

BLACK,202

main87908-62140-C1iJPD20202108-202304

PRECIOUS BLACK,219

main87908-62140-D0iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87908-62140-J0iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

main87908-62140-J1iJPD20202108-202304

DK.BLUE MC.,8S6

87948COVER, OUTER MIRROR HOLE, LH

main87948-30G80-A1iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87948-30G80-B1iJPD20202108-202304

PRECIOUS SILVER,1J6

main87948-30G80-B3iJPD20202108-202304

PRECIOUS METAL,1L5

main87948-30G80-C0iJPD20202108-202304

BLACK,202

main87948-30G80-C1iJPD20202108-202304

PRECIOUS BLACK,219

main87948-30G80-D3iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87948-30G80-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main87948-30G80-J3iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30G60-A1iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main8794A-30G60-B1iJPD20202108-202304

PRECIOUS SILVER,1J6

main8794A-30G60-B3iJPD20202108-202304

PRECIOUS METAL,1L5

main8794A-30G60-C0iJPD20202108-202304

BLACK,202

main8794A-30G60-C1iJPD20202108-202304

PRECIOUS BLACK,219

main8794A-30G60-D3iJPD20202108-202304

EMOTIONAL RED 2,3U5

main8794A-30G60-J0iJPD20202108-202304

DK.BLUE MC.,8S6

main8794A-30G60-J3iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

87961MIRROR OUTER, LH

main87961-10850iJPD20202108-202304

87966RETRACTOR, OUTER MIRROR, LH

main87909-62140-A2iJPD20202108-202304

PRECIOUS WHITE PEARL,090

main87909-62140-B0iJPD20202108-202304

PRECIOUS SILVER,1J6

main87909-62140-B1iJPD20202108-202304

PRECIOUS METAL,1L5

main87909-62140-C0iJPD20202108-202304

BLACK,202

main87909-62140-C1iJPD20202108-202304

PRECIOUS BLACK,219

main87909-62140-D0iJPD20202108-202304

EMOTIONAL RED 2,3U5

main87909-62140-J0iJPD20202108-202304

FORCE BLUE MULTIPLE LAYER,8Y7

main87909-62140-J1iJPD20202108-202304

DK.BLUE MC.,8S6

9017906146

main90179-06146

9017906274

main90179-06274

16 parts on this diagram · 2 diagrams in section
