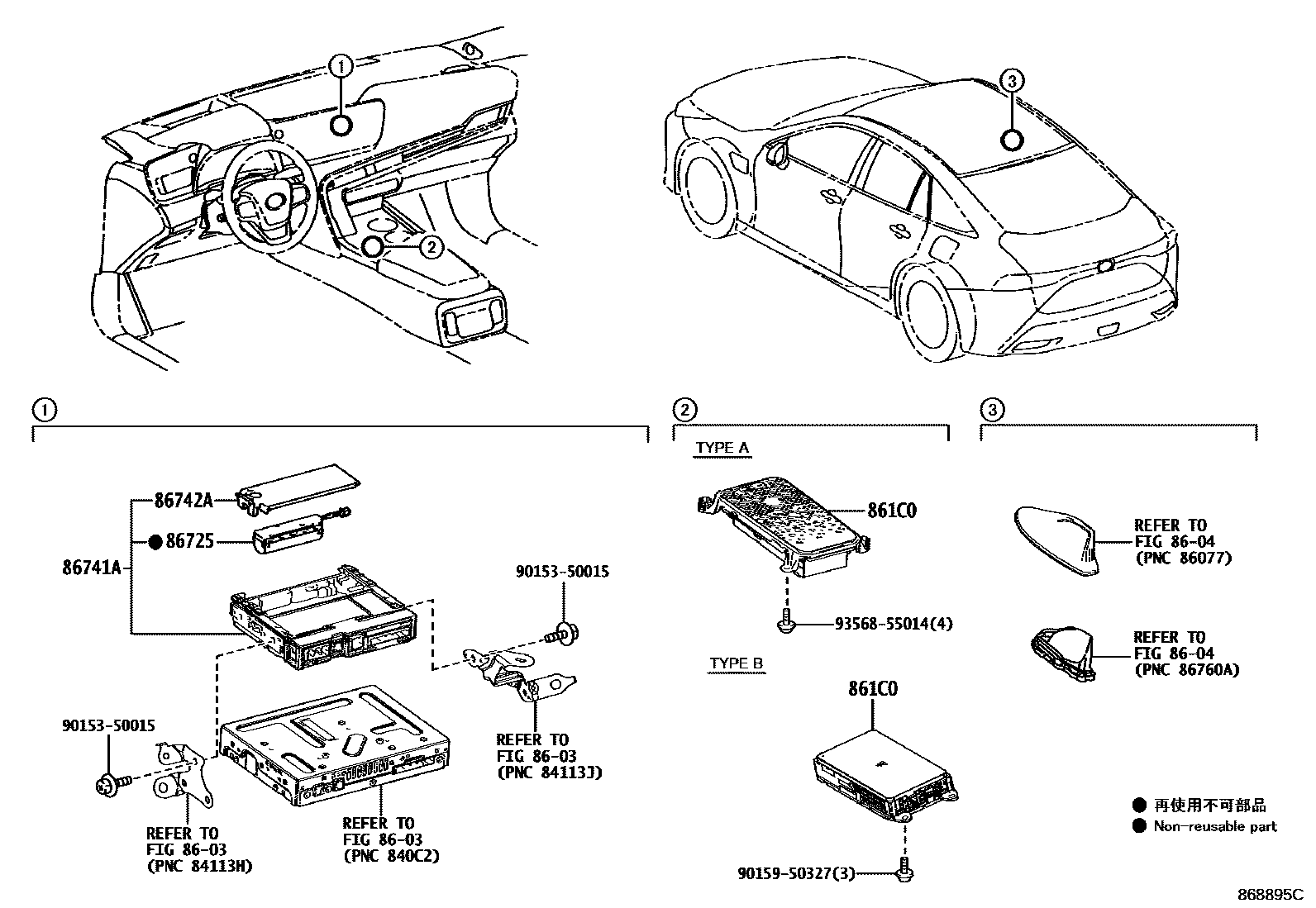

TELEPHONE & MAYDAY

8603

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-58040iJPD20202401-202411

TYPE B:REFER ILLUST.

main861C0-62030iJPD20202108-202304

TYPE A:REFER ILLUST.

86725BATTERY, MOBILEPHONE

main86725-26010iJPD20202108-202411

86741ATRANSCEIVER, TELEMATICS

main86741-62081iJPD20202108-202304

main86741-78090iJPD20202401-202411

86742ACOVER, TRANSCEIVER

main86742-26010iJPD20202108-202411

9015350015

main90153-50015

9015950327

main90159-50327

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
