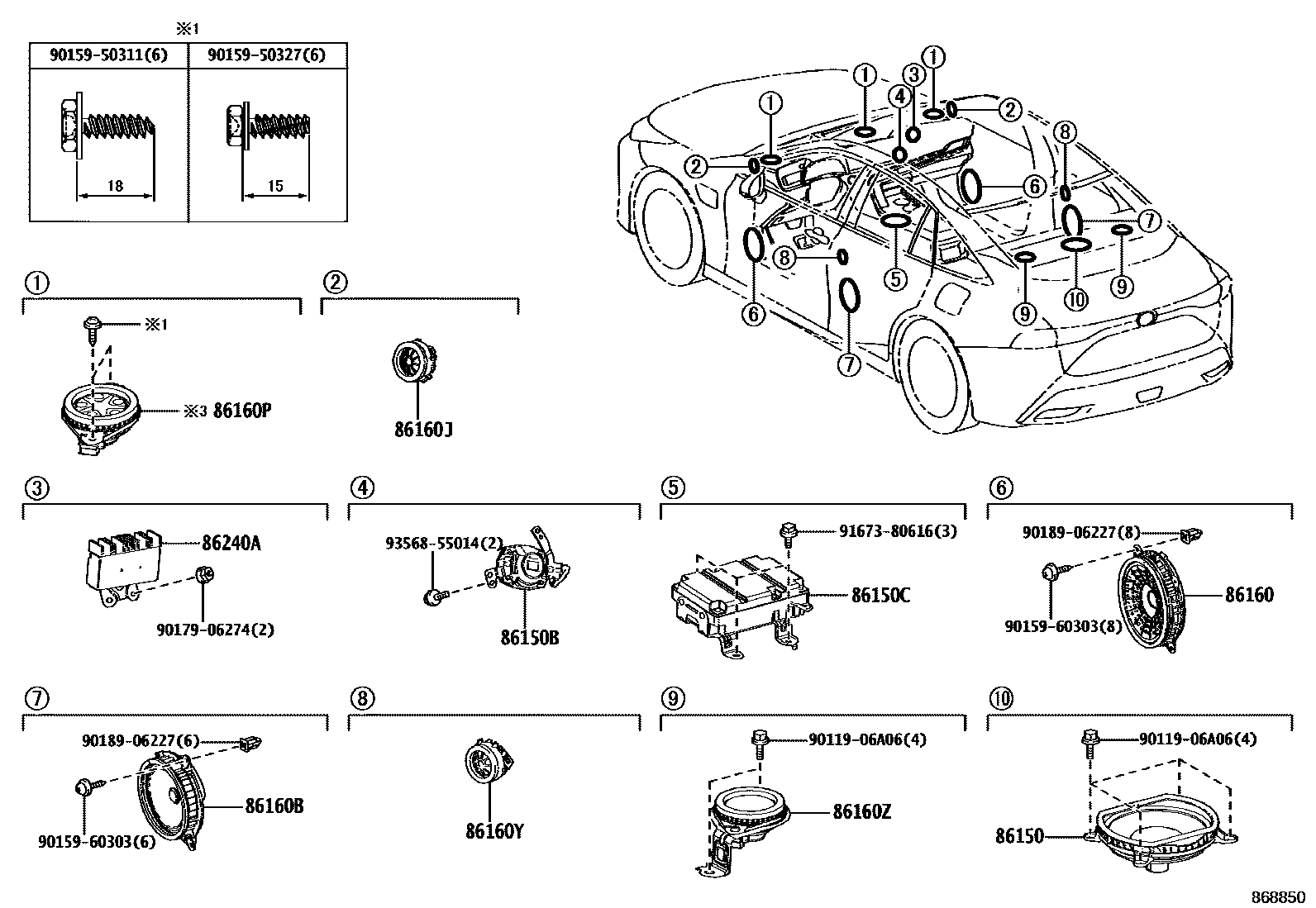

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-62100iJPD20¥29,600202108-202411

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-62030iJPD20202108-202304

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-62020iJPD20¥7,100202108-202304

86160SPEAKER ASSY, FRONT NO.1

main86160-33A10iJPD20¥23,500202108-202411

86160BSPEAKER ASSY, REAR

main86160-62020iJPD20¥20,000202108-202411

86160JSPEAKER ASSY, FRONT NO.3

main86150-33060iJPD20¥9,300202108-202411

86160PSPEAKER ASSY, FRONT NO.2

main86160-33A30iJPD20¥10,200202108-202411

86160YSPEAKER ASSY, REAR NO.2

main86150-33060iJPD20¥9,300202108-202411

86160ZSPEAKER ASSY, REAR NO.3

main86150-62060iJPD20¥10,600202108-202411

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-62010iJPD20¥31,500202108-202304

main86240-62060iJPD20¥28,600202401-202411

9011906A06

main90119-06A06¥60

9015950311

main90159-50311¥70

9015950327

main90159-50327¥70

9015960303

main90159-60303¥70

9017906274

main90179-06274¥70

9018906227

main90189-06227¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

18 parts on this diagram · 1 diagram in section
