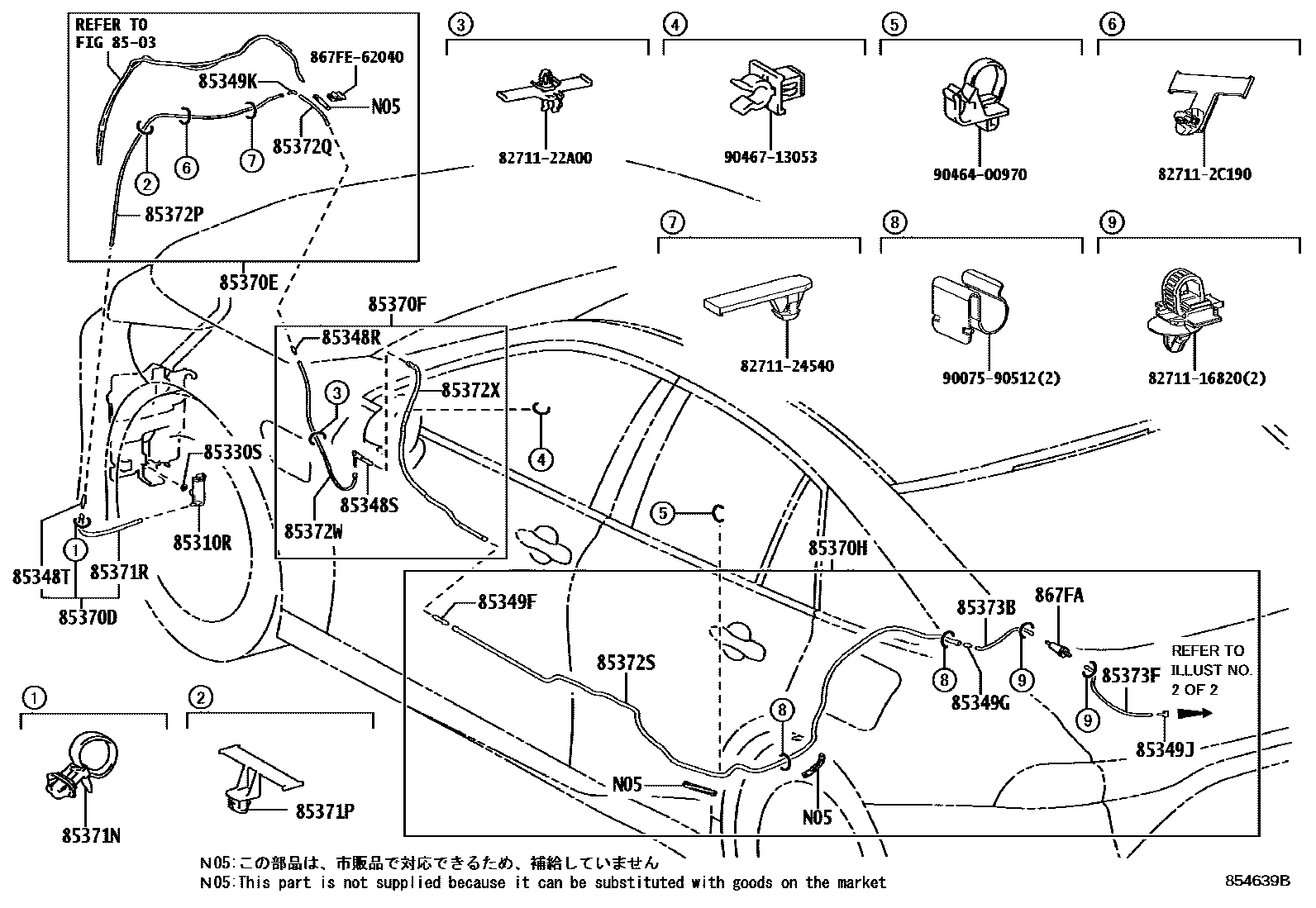

REAR WASHER

8503

85310RMOTOR ASSY, REAR WASHER

85330SBUSH, REAR WASHER JAR

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85349JJOINT, REAR WASHER HOSE, NO.4

85349KJOINT, REAR WASHER ELBOW, NO.2

85370DHOSE ASSY, REAR WASHER, NO.1

85370EHOSE ASSY, REAR WASHER, NO.2

85370FHOSE ASSY, REAR WASHER, NO.3

85370HHOSE ASSY, REAR WASHER, NO.4

85371NCLAMP, REAR WASHER HOSE

85371PCLAMP, REAR WASHER HOSE, NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8

867FAFILTER, CLEANER HOSE

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271122A00WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

867FE62040

9007590512

9046400970

9046713053

33 parts on this diagram · 2 diagrams in section
