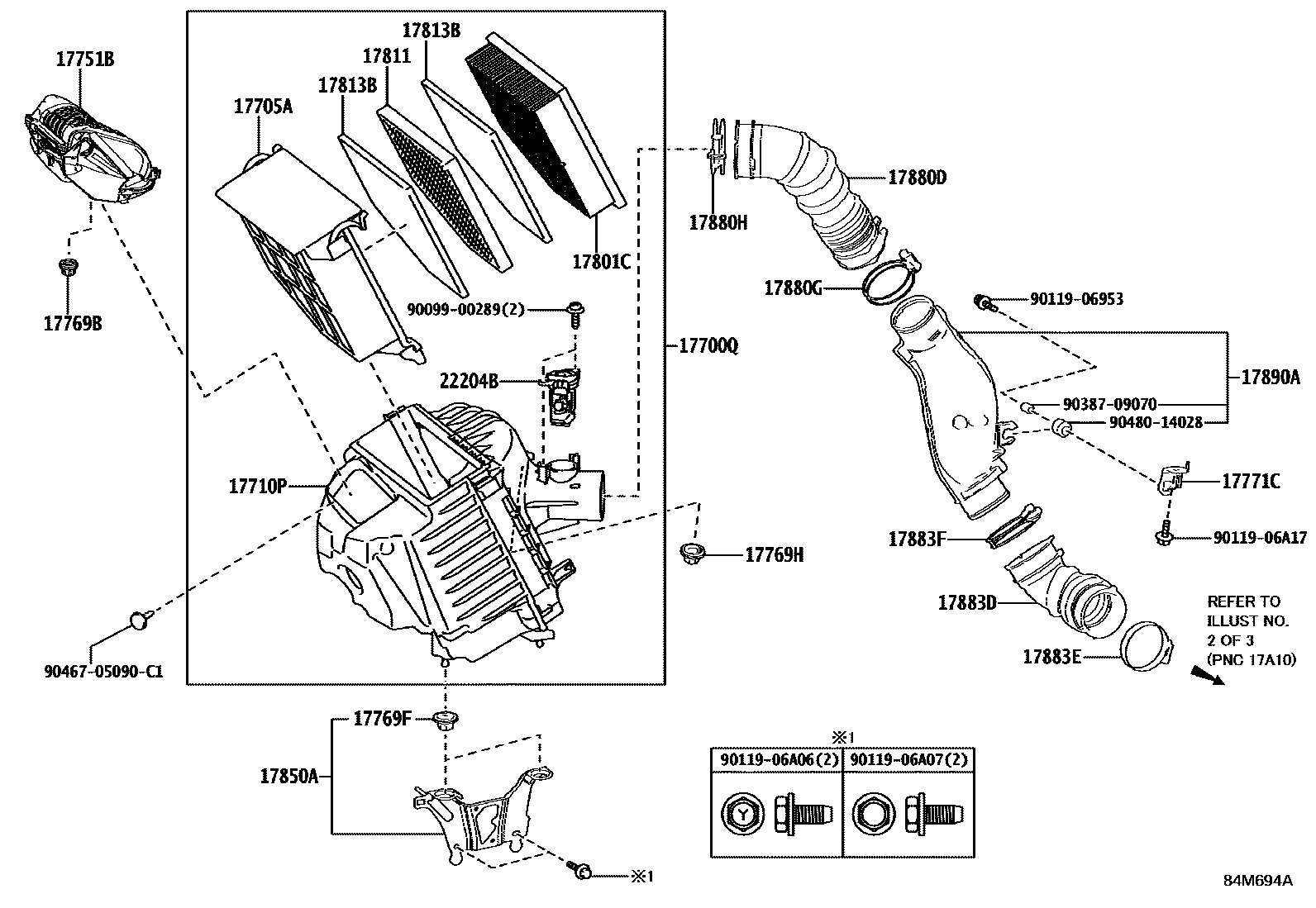

FCEV INTAKE & EXHAUST
17700QCLEANER ASSY, AIR W/ELEMENT
17705ACAP SUB-ASSY, AIR CLEANER
17710PCLEANER ASSY, AIR W/O ELEMENT
17751BINLET, AIR CLEANER
17769BSUPPORT, AIR CLEANER
17769FSUPPORT, AIR CLEANER, NO.2
17769HSUPPORT, AIR CLEANER, NO.3
17771CBRACKET, AIR CLEANER PIPE, NO.1 RH
17801CELEMENT SUB-ASSY, AIR CLEANER FILTER
17811FILTER, AIR CLEANER
17813BPREFILTER
17850ABRACKET ASSY, AIR CLEANER SUPPORT
17880DHOSE ASSY, AIR CLEANER
17880GCLAMP, NO.1(FOR AIR CLEANER HOSE ASSY)
17880HCLAMP, NO.2(FOR AIR CLEANER HOSE ASSY)
17883DHOSE, AIR CLEANER, NO.3
17883ECLAMP, NO.1(FOR AIR CLEANER HOSE)
17883FCLAMP, NO.2(FOR AIR CLEANER HOSE)
17890AHOSE ASSY, AIR CLEANER, NO.2
22204BMETER SUB-ASSY, INTAKE AIR FLOW
9009900289
main90099-00289
9011906953
main90119-06953
9011906A06
main90119-06A06
9011906A07
main90119-06A07
9011906A17
main90119-06A17
9038709070
main90387-09070
9046705090C1
main90467-05090C1
9048014028
main90480-14028
28 parts on this diagram · 3 diagrams in section
