TIRE PRESSURE WARNING SYSTEM

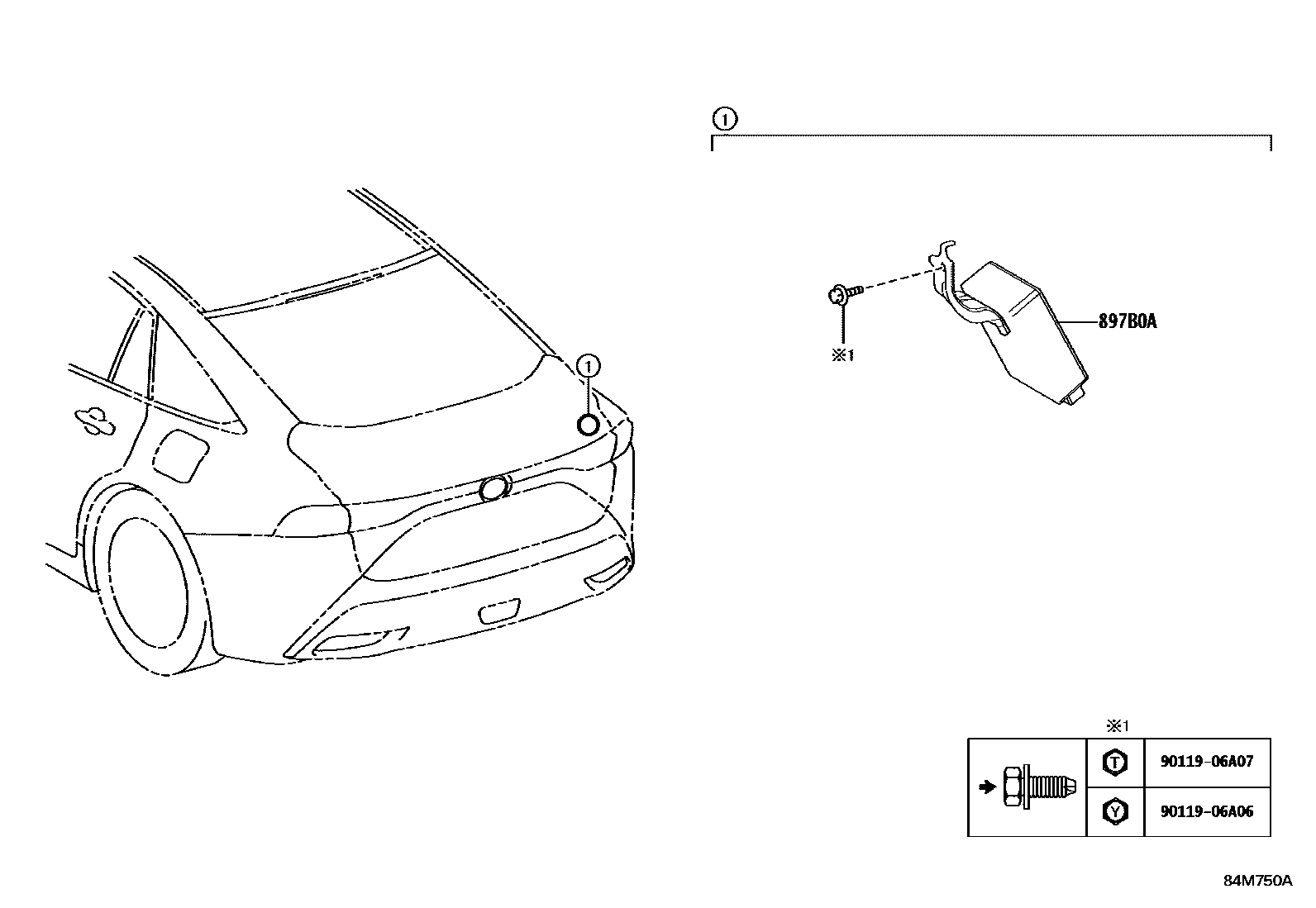

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-62140i202108-202304

main897B0-62190i202401-202411

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

3 parts on this diagram · 1 diagram in section
