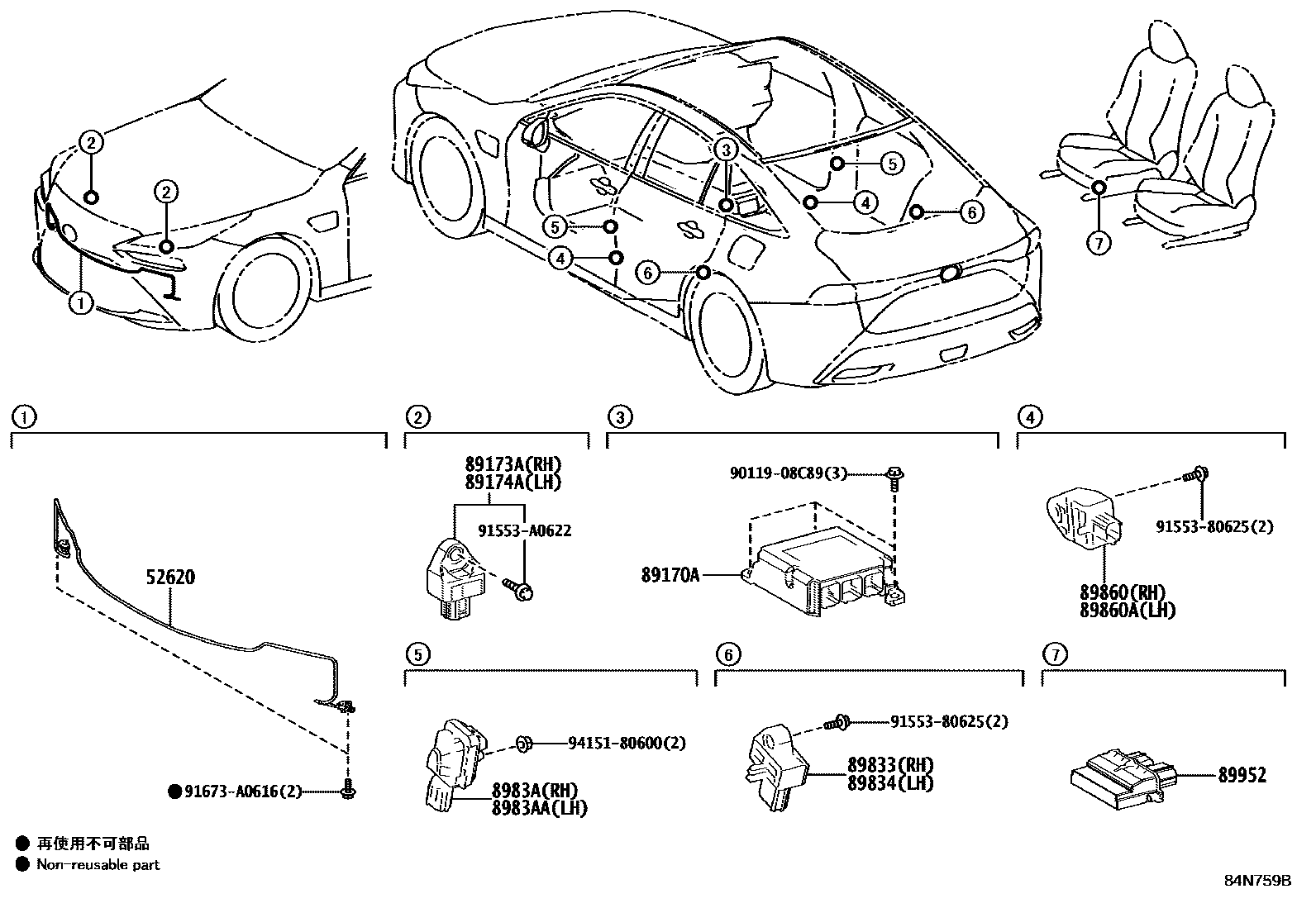

AIR BAG
52620CHAMBER ASSY, PEDESTRIAN DETECTION
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89952COMPUTER, OCCUPANT DETECTION
9011908C89
main90119-08C89
9155380625
main91553-80625
91553A0622
main91553-A0622
91673A0616
main91673-A0616
9415180600
main94151-80600
16 parts on this diagram · 1 diagram in section
