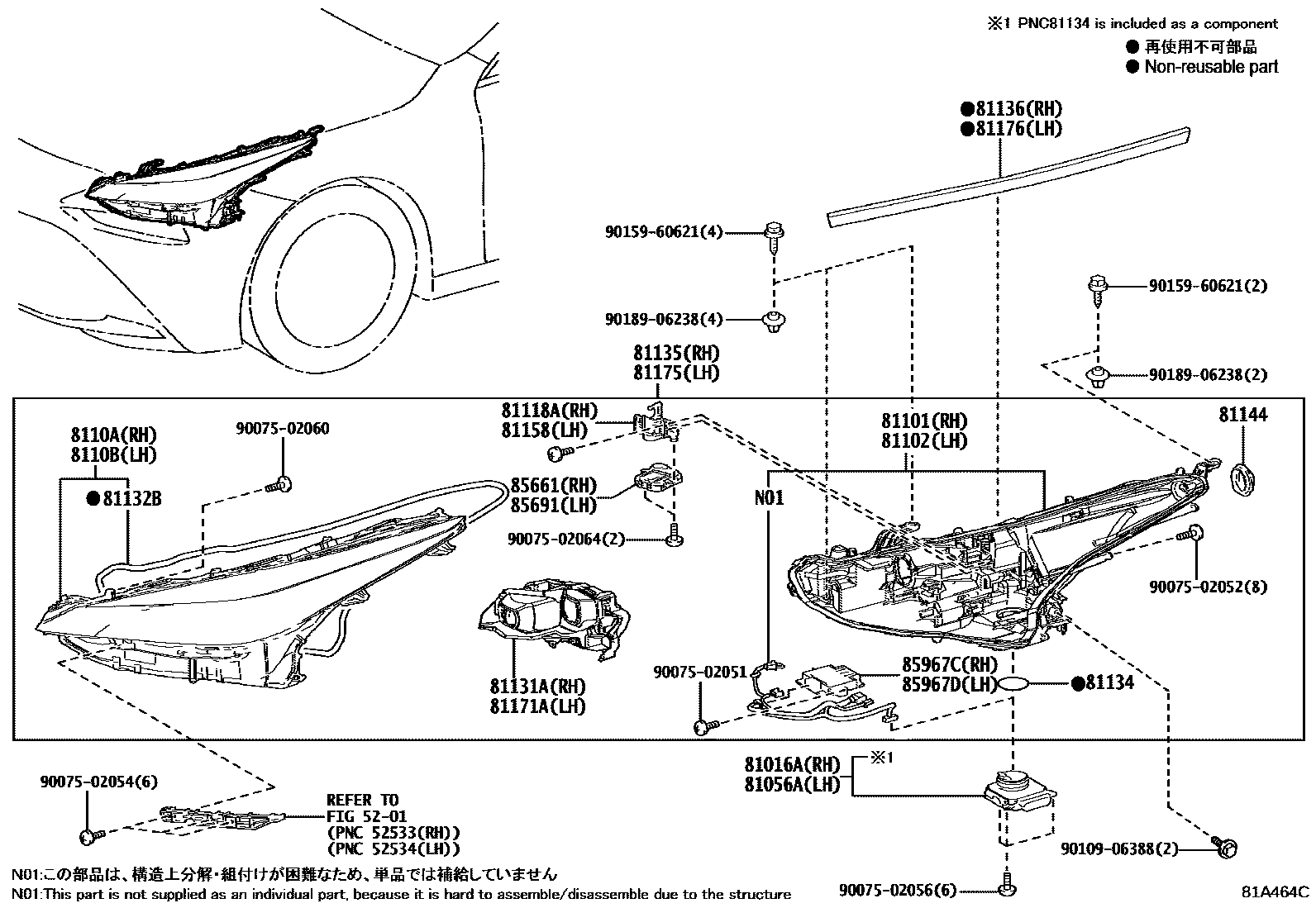

HEADLAMP
5201
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81118ABRACKET, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81136PROTECTOR, HEADLAMP, NO.1 RH
81144COVER, HEADLAMP, NO.1
81158BRACKET, HEADLAMP, LH
81176PROTECTOR, HEADLAMP, NO.1 LH
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
31 parts on this diagram · 1 diagram in section
