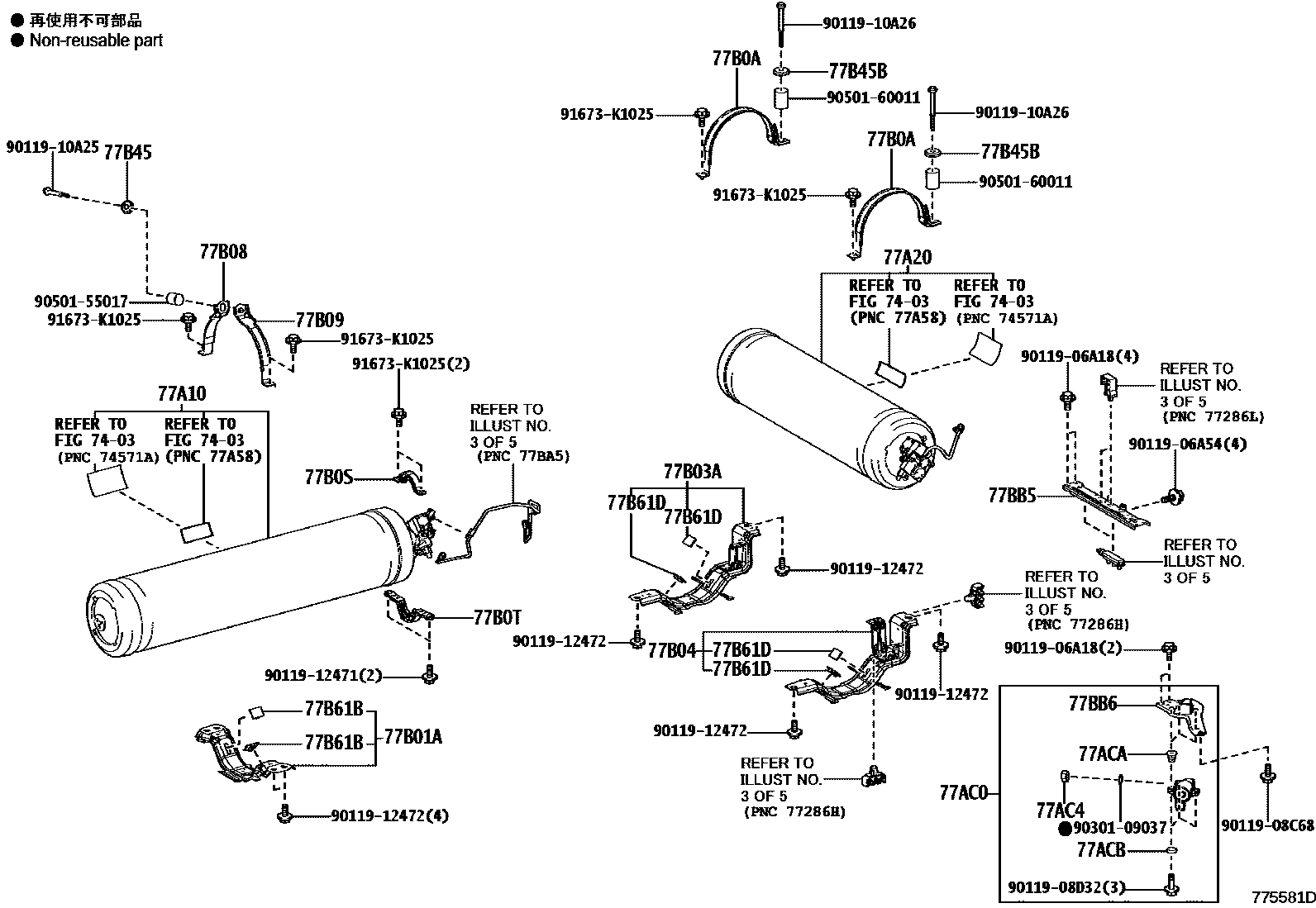

FUEL TANK & TUBE

0001 1FUEL TANK NO.1,NO.2 0002 1FUEL TANK NO.1,NO.2 0003 1FUEL TANK NO.3 0004 1FUEL TANK NO.3 0005 1FUEL TUBE 0006 1HYDROGEN SUPPLY SYSTEM 0007 1FUEL LID OPENER

7403

77A10TANK ASSY, HYDROGEN, NO.1

main77A10-62130iJPD20202108-202207

sub77A10-62131

main77A10-62131iJPD20202208-202402

main77A10-62133iJPD20202403-202410

main77A10-62134iJPD20202411

77A20TANK ASSY, HYDROGEN, NO.2

main77A20-62120iJPD20202108-202207

sub77A20-62121

main77A20-62121iJPD20202208-202402

main77A20-62123iJPD20202403-202410

main77A20-62124iJPD20202411

77AC0REGULATOR ASSY, HYDROGEN SUPPLY

main77AC0-62040iJPD20202108-202411

77AC4PLUG, HYDROGEN SUPPLY REGULATOR, NO.1

main77AC4-62020iJPD20202108-202411

77ACACUSHION, HYDROGEN SUPPLY REGULATOR, UPPER

main77ACA-62010iJPD20202108-202411

77ACBCUSHION, HYDROGEN SUPPLY REGULATOR, LOWER

main77ACB-62010iJPD20202108-202411

77B01AFRAME SUB-ASSY, HYDROGEN TANK, NO.1

main77B01-62030iJPD20202108-202411

77B03FRAME SUB-ASSY, HYDROGEN TANK, REAR

main77B05-62030iJPD20202108-202411

77B03AFRAME SUB-ASSY, HYDROGEN TANK, NO.2 RH

main77B03-62020iJPD20202108-202411

77B04FRAME SUB-ASSY, HYDROGEN TANK, NO.2 LH

main77B04-62010iJPD20202108-202411

77B08BAND SUB-ASSY, HYDROGEN TANK, NO.1 RH

main77B08-62010iJPD20202108-202411

77B09BAND SUB-ASSY, HYDROGEN TANK, NO.1 LH

main77B09-62010iJPD20202108-202411

77B0ABAND SUB-ASSY, HYDROGEN TANK, NO.2

main77B0A-62010iJPD20202108-202411

77B0SBRACKET SUB-ASSY, HYDROGEN TANK, UPPER

main77B0S-62010iJPD20202108-202411

77B0TBRACKET SUB-ASSY, HYDROGEN TANK, LOWER

main77B0T-62010iJPD20202108-202411

77B45CUP, HYDROGEN TANK SPRING BOLT, FRONT

main77B45-62020iJPD20202108-202411

77B45BCUP, HYDROGEN TANK SPRING BOLT, NO.2

main77B45-62030iJPD20202108-202411

77B61BSEAT, HYDROGEN TANK FRAME, NO.1

main77B61-62021iJPD20202108-202411

77B61DSEAT, HYDROGEN TANK FRAME, NO.3

main77B61-62021iJPD20202108-202411

77BB5BRACKET, HYDROGEN TANK, NO.1

main77BB5-62010iJPD20202108-202411

77BB6BRACKET, HYDROGEN TANK, NO.2

main77BB6-62010iJPD20202108-202411

9011906A18

main90119-06A18

9011906A54

main90119-06A54

9011908C68

main90119-08C68

9011908D32

main90119-08D32

9011910A25

main90119-10A25

9011910A26

main90119-10A26

9011912471

main90119-12471

9011912472

main90119-12472

9030109037

main90301-09037

9050155017

main90501-55017

9050160011

main90501-60011

91673K1025

main91673-K1025

34 parts on this diagram · 7 diagrams in section
