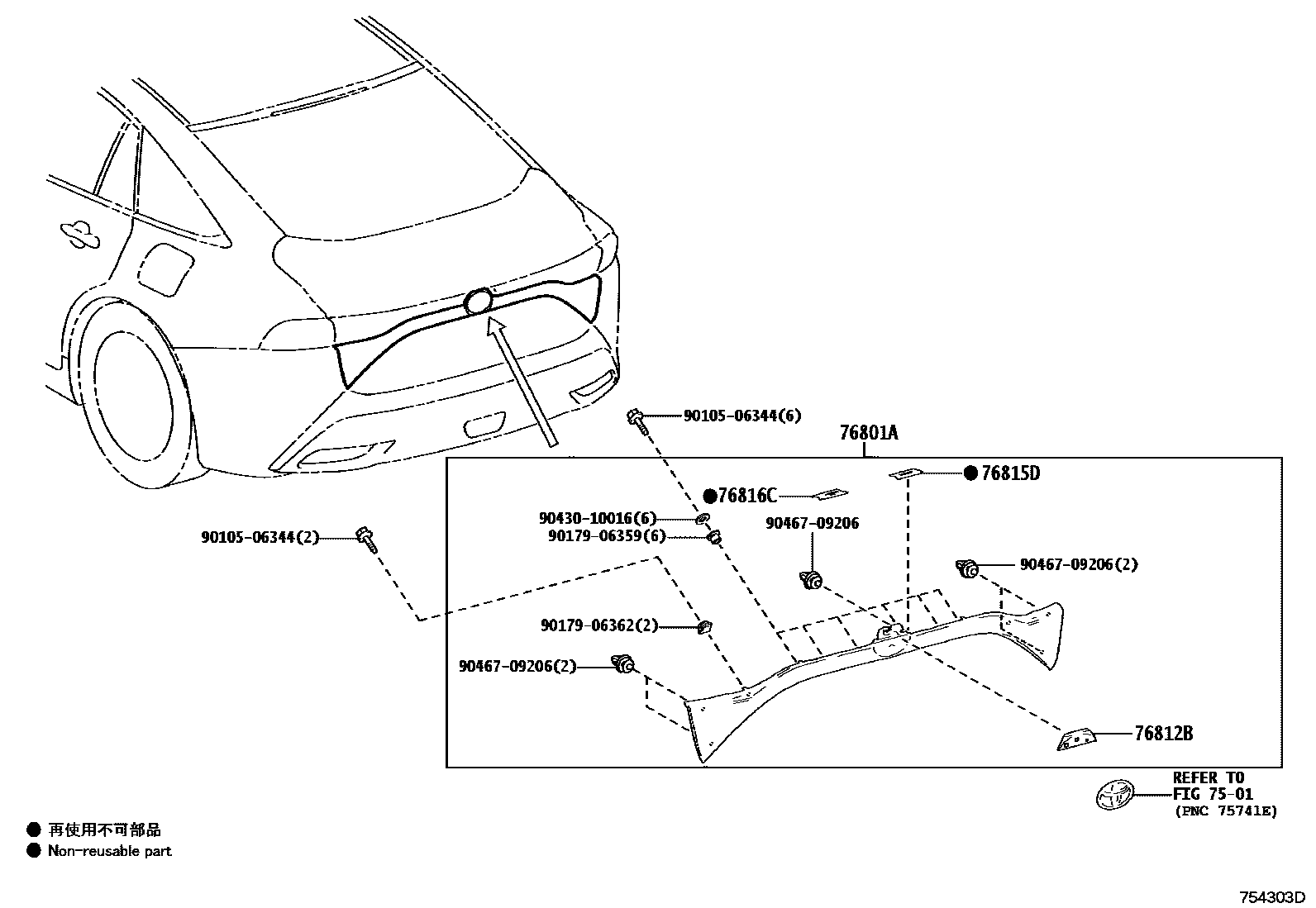

REAR MOULDING
7501
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.,PRECIOUS WHITE PEARL,090
NO PAINT REQ.,PRECIOUS SILVER,1J6
NO PAINT REQ.,PRECIOUS METAL,1L5
NO PAINT REQ.,BLACK,202
NO PAINT REQ.,PRECIOUS BLACK,219
NO PAINT REQ.,EMOTIONAL RED 2,3U5
NO PAINT REQ.,DK.BLUE MC.,8S6
NO PAINT REQ.,FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS METAL,1L5
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS METAL,1L5
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
FORCE BLUE MULTIPLE LAYER,8Y7
76812BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76815DMOULDING, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, LOWER RH
76816CMOULDING, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, LOWER LH
9010506344
main90105-06344
9017906359
main90179-06359
9017906362
main90179-06362
9043010016
main90430-10016
9046709206
main90467-09206
10 parts on this diagram · 1 diagram in section
