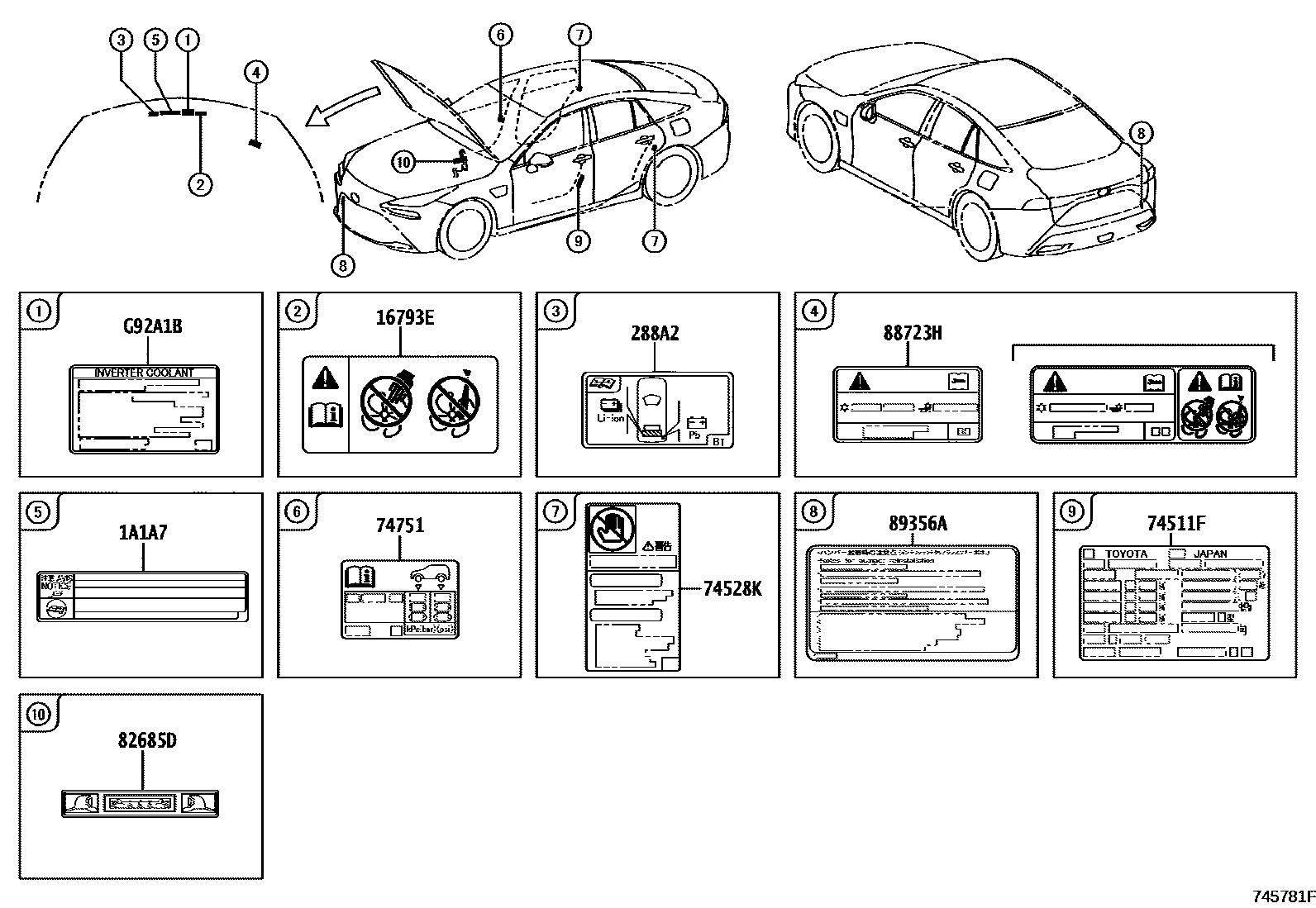

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1FUEL TANK & FUEL LID 0003 1INTERIOR

16793ELABEL, COOLING FAN CAUTION

main16793-36030i3KM..JPD20202108-202304

1A1A7LABEL, FC STACK NOTICE

main1A1A7-77010i3KM..JPD20202108-202411

288A2LABEL, BATTERY LOCATION

main288A2-77020i3KM..JPD20202108-202411

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-62080iJPD20202108-202411

*111

74528KLABEL, DOOR CLOSER CAUTION

main74528-50041iJPD20202108-202411

74751LABEL, TIRE PRESSURE INFORMATION

main42661-62100iJPD20202108-202411

82685DPLATE, CAUTION

main82684-48010iJPD20202401-202411

88723HLABEL, COOLER SERVICE CAUTION

main88723-48450iJPD20202401-202411

main88723-62050iJPD20202108-202304

89356ALABEL, CLEARANCE WARNING INFORMATION

main89356-47020iJPD20202108-202111

G92A1BLABEL, EV COOLANT SYSTEM INFORMATION

mainG92A111010iJPD20202108-202411

10 parts on this diagram · 3 diagrams in section
