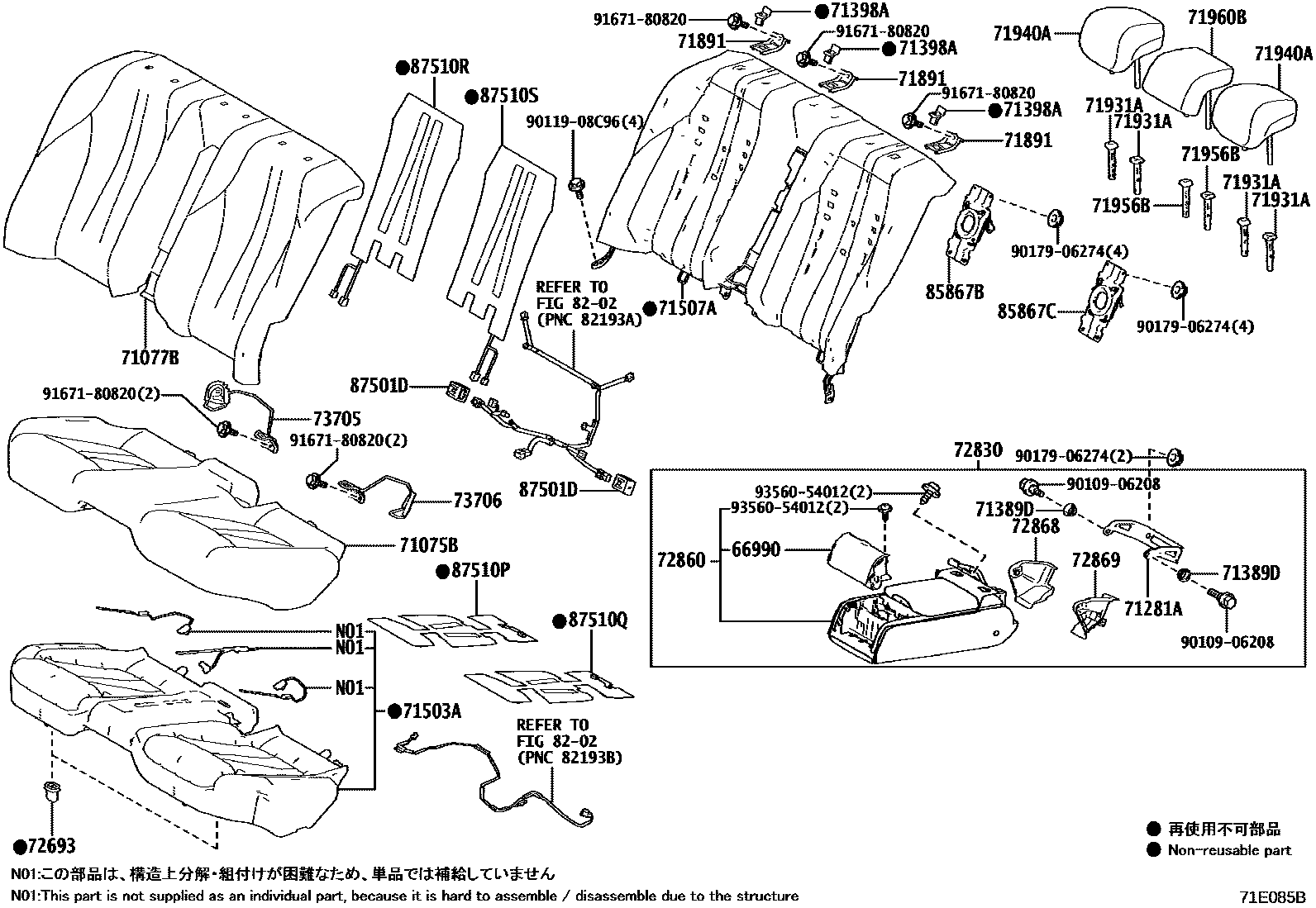

REAR SEAT & SEAT TRACK
66990HOLDER ASSY, CUP
BLACK,TRIM2#
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK&IVORY,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
BLACK&IVORY,TRIM2#
BLACK/IVORY,TRIM2#
71281AHINGE, REAR SEAT CENTER ARMREST
71389DPLATE, REAR SEAT STOPPER
71398AHOLDER, REAR SEATBACK
71503APAD SUB-ASSY, REAR SEAT CUSHION
71507APAD SUB-ASSY, REAR SEATBACK
71891BRACKET, REAR SEATBACK SET, NO.1
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
BLACK&IVORY,TRIM2#
BLACK/IVORY,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK&IVORY,TRIM2#
BLACK/IVORY,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
72830ARMREST ASSY, REAR SEAT, CENTER
BLACK&IVORY,TRIM2#
72860BOX ASSY, REAR SEAT CENTER ARMREST
BLACK&IVORY,TRIM2#
72868COVER, CENTER ARMREST HINGE, RH
BLACK,TRIM2#
72869COVER, CENTER ARMREST HINGE, LH
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
8202
85867BBLOWER, REAR SEATBACK CLIMATE CONTROL, RH
85867CBLOWER, REAR SEATBACK CLIMATE CONTROL, LH
87501DCONTROL SUB-ASSY, SEAT HEATER
87510PHEATER ASSY, SEAT
87510QHEATER ASSY, SEAT
87510RHEATER ASSY, SEAT
87510SHEATER ASSY, SEAT
9010906208
9011908C96
9017906274
9167180820
9356054012
33 parts on this diagram · 1 diagram in section
