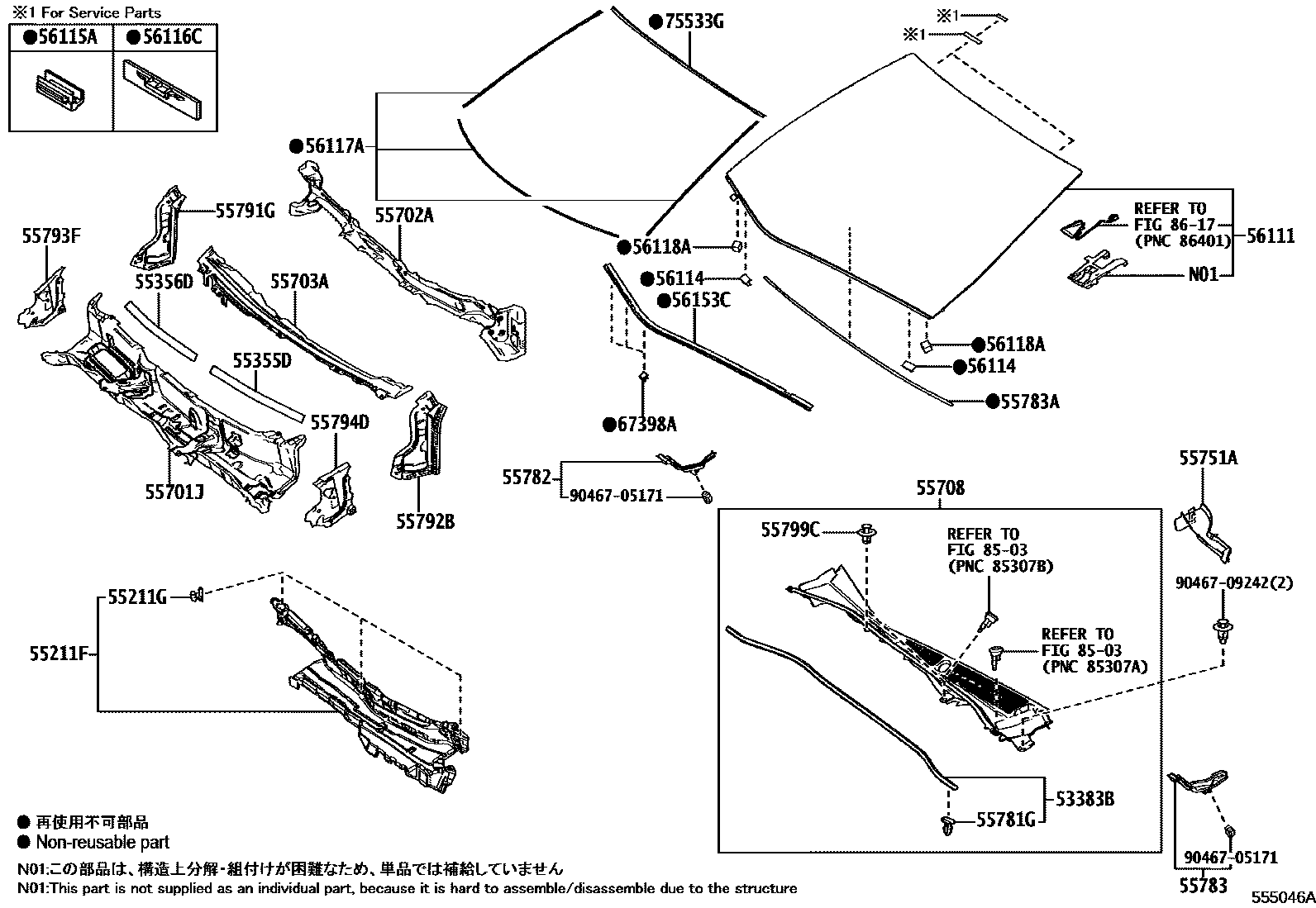

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55703APANEL SUB-ASSY, COWL TOP, INNER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55751ASHIELD, COWL VENTILATOR SPLASH, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55783APAD, COWL TOP SILENCER
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55799CCLIP, COWL TOP VENTILATOR LOUVER
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1387 OR 650,MOON ROOF-PANORAMA ROOF
*D,L=1387 OR 650
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
MOON ROOF-PANORAMA ROOF
56153CMOULDING, FRONT WINDOW, INNER CENTER
67398AGUIDE(FOR WINDOW DEFOGGER WIRE)
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9046705171
9046709242
32 parts on this diagram · 1 diagram in section
