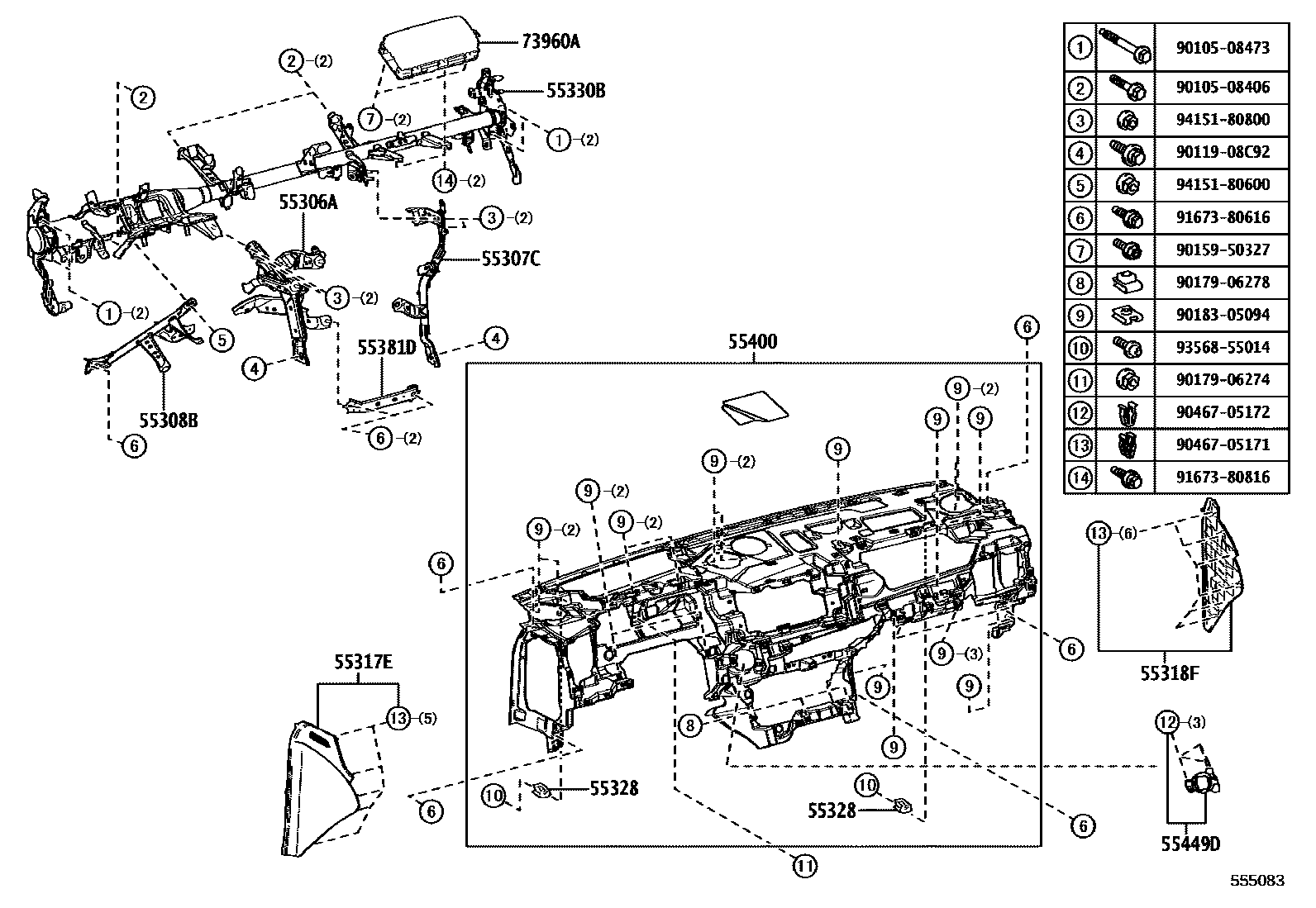

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-62040iJPD20202108-202411

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-62040iJPD20202108-202411

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-62020iJPD20202108-202411

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-62080-C0iJPD20202108-202411

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-62090-C0iJPD20202108-202411

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iJPD20202108-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-62040iJPD20202108-202411

55381DBRACKET, INSTRUMENT PANEL SHIFT MOUNTING, NO.1

main55381-62020iJPD20202108-202411

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-62050iJPD20202108-202411

55449DBASE, SWITCH

main55449-62040iJPD20202108-202304

main55449-62060iJPD20202401-202411

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-62040iJPD20202108-202411

9010508406

main90105-08406

9010508473

main90105-08473

9011908C92

main90119-08C92

9015950327

main90159-50327

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 4 diagrams in section
