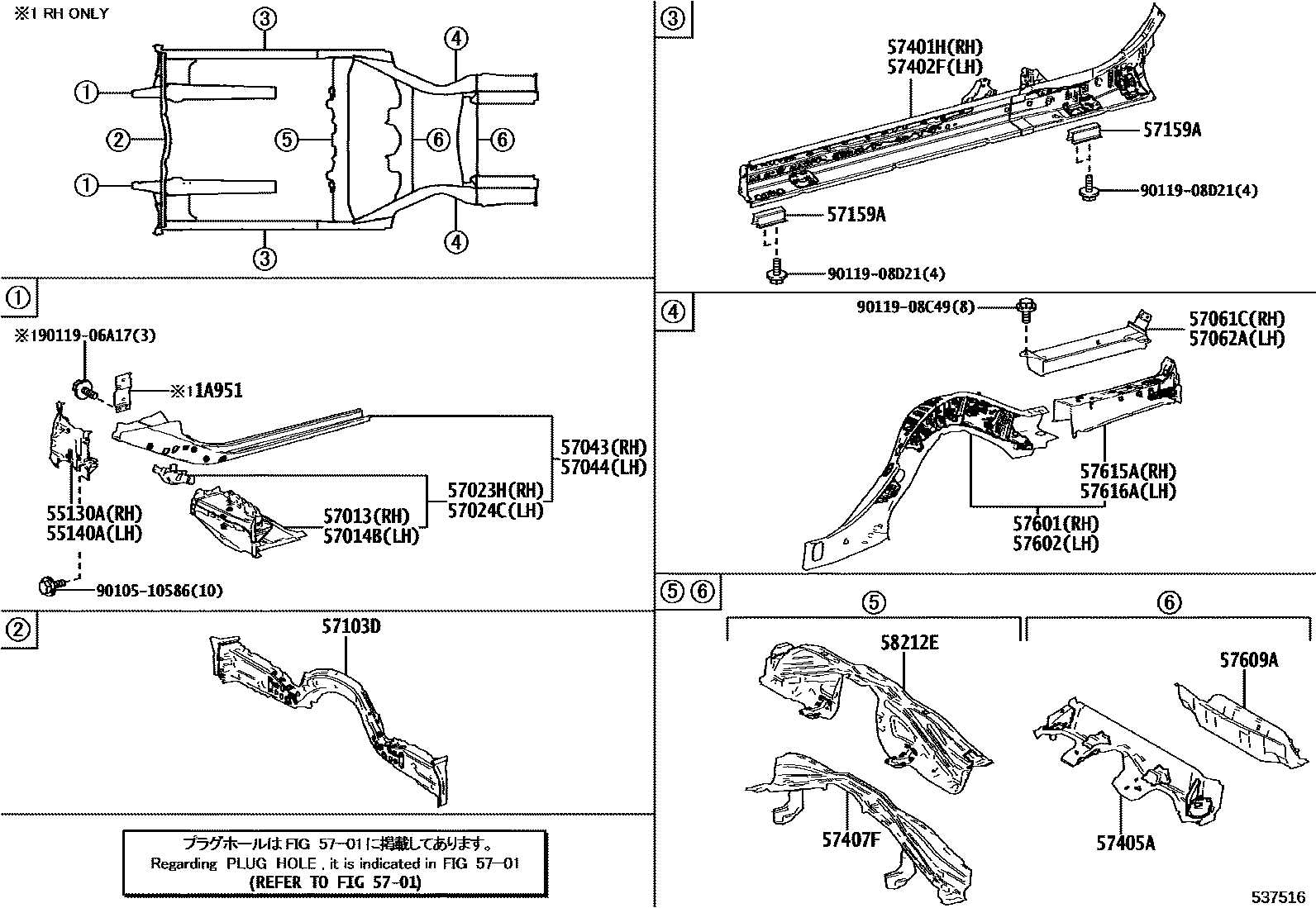

FLOOR SIDE MEMBER
1A951PROTECTOR, FC STACK, RH
55130APLATE ASSY, FENDER APRON SET, RH
55140APLATE ASSY, FENDER APRON SET, LH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57061CMEMBER SUB-ASSY, UNDER REAR, RH
57062AMEMBER SUB-ASSY, UNDER REAR, LH
57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL
57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407FMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
58212EPAN, CENTER FLOOR, FRONT
9010510586
main90105-10586
9011906A17
main90119-06A17
9011908C49
main90119-08C49
9011908D21
main90119-08D21
28 parts on this diagram · 1 diagram in section
