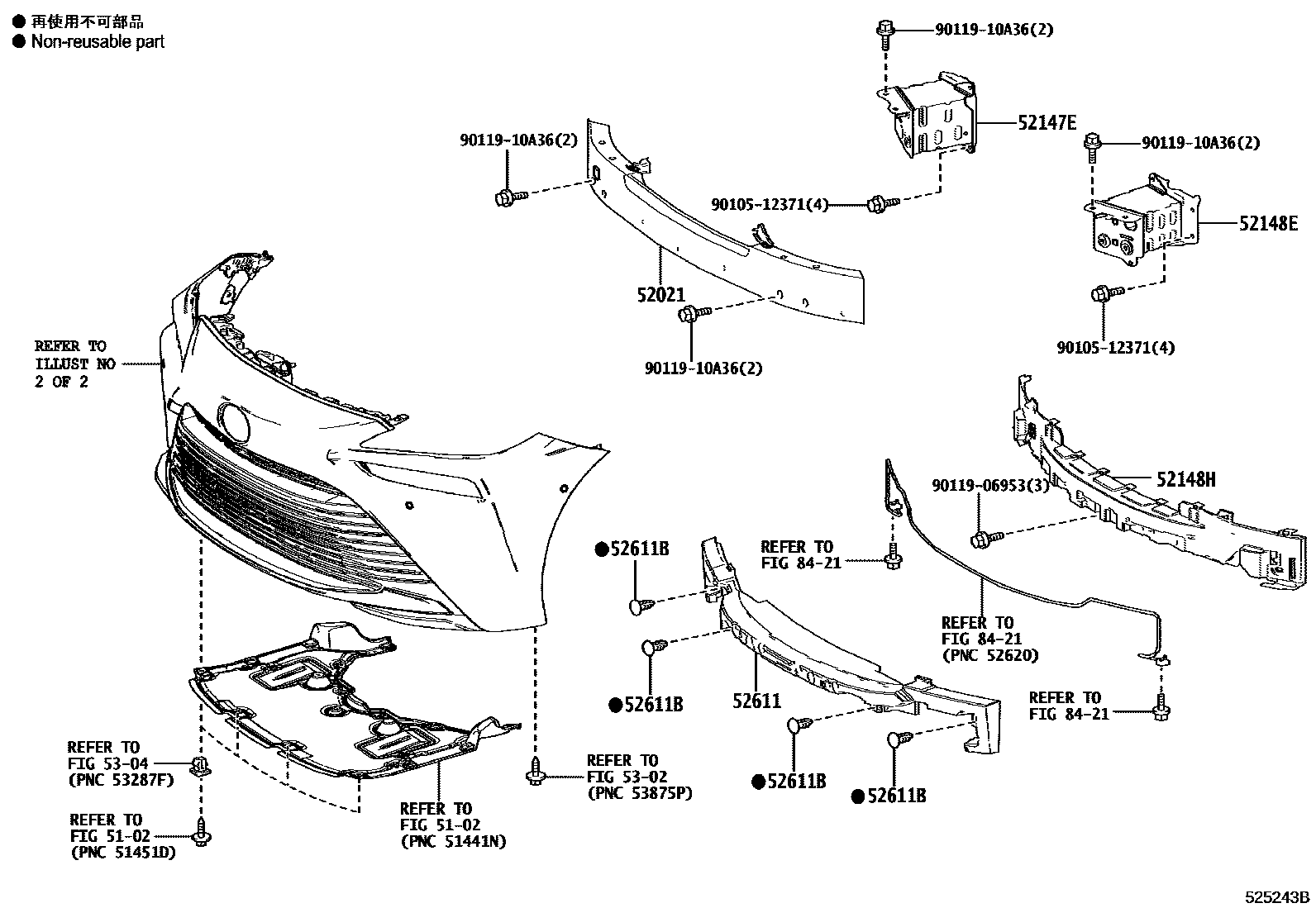

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-30250iJPD20202401-202411

main52021-62030iJPD20202108-202304

sub52021-30250

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main57107-62020iJPD20202108-202411

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main57108-62020iJPD20202108-202411

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-62010iJPD20202108-202411

52611ABSORBER, FRONT BUMPER ENERGY

main52611-62020iJPD20202108-202411

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049-23iJPD20202108-202411

BLACK

sub90467-07049

5302

5304

8421

9010512371

main90105-12371

9011906953

main90119-06953

9011910A36

main90119-10A36

13 parts on this diagram · 2 diagrams in section
