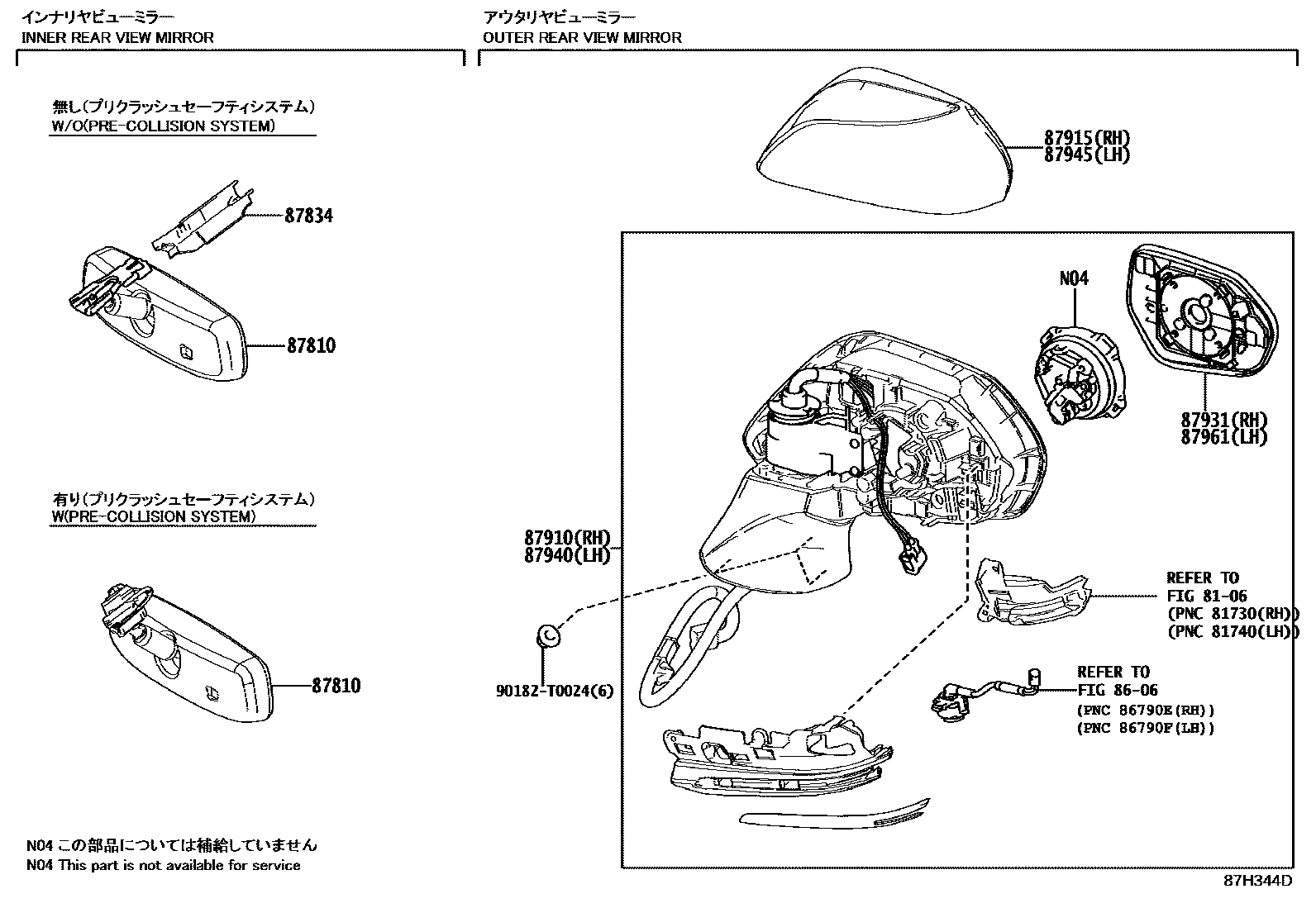

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WS50iASV70,AXVA70,AXVH71..(25,25V,HBDV)..(MA,TH)201810-202110

BRUNEI SPEC

main87810-0WS51iAXVA70,AXVH71,MXVA71..20Q,25G,25Q,25V,HBDG,HBDV202111

main87810-0WW40iASV71;ASV70,AXVH71..IDN,PH,VN201810-202112

main87810-0WW41iAXVA70,AXVH71,MXVA71..20G,25,25E,HBD202111

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-76010iAXVA70,AXVH71,MXVA71..20G,25,25E,HBD201810-202112

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-06770iASV70..25V..PH201810-202110

main87910-06B10iASV7#..LHD..(20G,25G)201810-202110

main87910-06B11iMXVA71..20G202111

PLATED

main87910-06B20iASV70..VN201810-202110

main87910-06B21iMXVA71..20Q202111

PLATED

main87910-06B60iASV70..IDN201810-202110

SINGAPORE SPEC

main87910-06B61iAXVA70..25202111

PLATED

main87910-06B80iAXVA70,AXVH71..(25,HBD)..(IND,TH)201810-202112

main87910-06B81iAXVH71..IND202112

PLATED

main87910-06B90iASV70..25V..IDN201810-202110

BRUNEI SPEC

main87910-06B91iAXVA70,AXVH71..25G,HBDG202111

PLATED

main87910-06D70iAXVA70,AXVH71..LHD202111-202210

PLATED

main87910-06D71iAXVA70,AXVH71..LHD202210

PLATED

main87910-06D80iAXVA70..25E202111

PLATED

main87910-06D90iAXVA70,AXVH71..RHD..(25V,HBDV)202111-202210

PLATED

main87910-06D91iAXVA70,AXVH71..RHD..(25V,HBDV)202210

PLATED

87915COVER, OUTER MIRROR, RH

main87915-06915iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main87915-06915iAXVA70,AXVH71,MXVA71202111

PAINT REQ.

87931OUTER MIRROR, RH

main87902-02090iMXVA71..20G202111

main87902-02100iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main87902-06110iASV7#..LHD..(20G,25G,25V)201810-202110

main87902-06120iASV70..VN201810-202110

main87902-06200iAXVA70,AXVH71..(25,HBD)..(IND,TH)201810-202112

main87902-06200iASV70..IDN201810-202110

SINGAPORE SPEC

main87902-06201iAXVA70,AXVH71..(25,HBD)..(IND,TH)202111

main87902-06220iASV70..25V..IDN201810-202110

BRUNEI SPEC

main87902-06221iAXVA70,AXVH71..RHD..(25E,25G,25V,HBDG,HBDV)202111

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-06770iASV70..25V..PH201810-202110

main87940-06B10iASV7#..LHD..(20G,25G)201810-202110

main87940-06B11iMXVA71..20G202111

PLATED

main87940-06B20iASV70..VN201810-202110

main87940-06B21iMXVA71..20Q202111

PLATED

main87940-06B60iASV71..20201810-202110

SINGAPORE SPEC

main87940-06B61iAXVA70..25202111

PLATED

main87940-06B80iAXVA70,AXVH71..(25,HBD)..(IND,TH)201810-202112

main87940-06B81iAXVH71..IND202112

PLATED

main87940-06B90iASV70..25V..IDN201810-202110

BRUNEI SPEC

main87940-06B91iAXVA70,AXVH71..25G,HBDG202111

PLATED

main87940-06D40iAXVA70,AXVH71..LHD202111-202210

PLATED

main87940-06D41iAXVA70,AXVH71..LHD202210

PLATED

main87940-06D50iAXVA70..25E202111

PLATED

main87940-06D60iAXVA70,AXVH71..RHD..(25V,HBDV)202111-202210

PLATED

main87940-06D61iAXVA70,AXVH71..RHD..(25V,HBDV)202210

PLATED

87945COVER, OUTER MIRROR, LH

main87945-06915iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main87945-06915iAXVA70,AXVH71,MXVA71202111

PAINT REQ.

87961MIRROR OUTER, LH

main87907-02100iAXVA70,AXVH71..(25,HBD)..(IND,TH)202111

main87907-02110iAXVA70,AXVH71..RHD..(25E,25G,25V,HBDG,HBDV)202111

main87907-06090iASV7#..LHD..(20G,25G,25V)201810-202110

main87907-06091iMXVA71..20G202111

main87907-06100iASV70..VN201810-202110

main87907-06101iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main87907-06180iAXVA70,AXVH71..(25,HBD)..(IND,TH)201810-202112

main87907-06180iASV71..20201810-202110

SINGAPORE SPEC

main87907-06200iASV70..25V..IDN201810-202110

BRUNEI SPEC

90182T0024

main90182-T0024

11 parts on this diagram · 1 diagram in section
