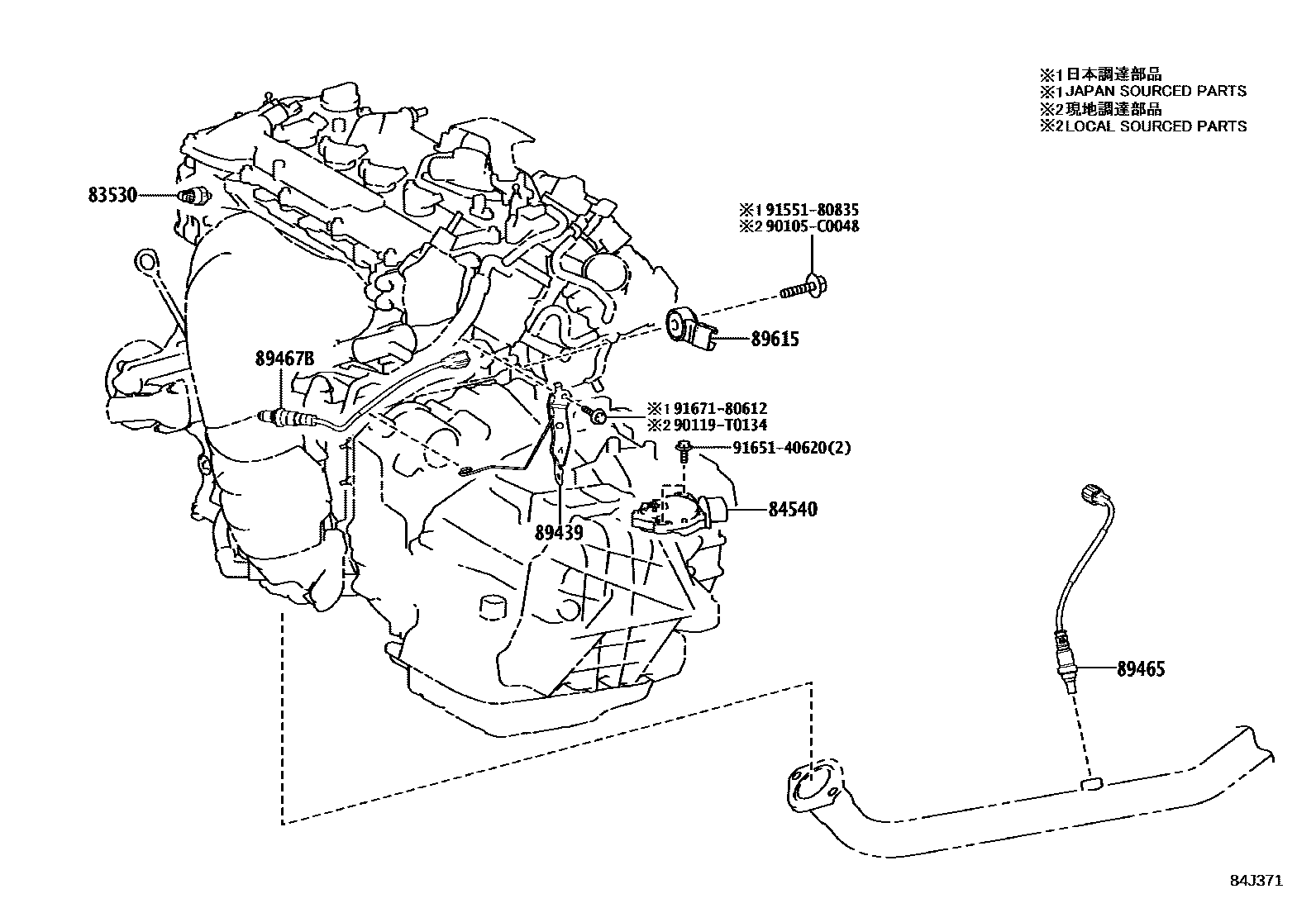

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1COWL 0013 1COWL 0014 1COWL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1INSTRUMENT PANEL 0019 1STEERING 0020 1SEAT 0021 1DOOR,FLOOR & LUGGAGE 0022 1DOOR,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASV70201810-202110

DENSO

main83530-60020iASV70201810-202110

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXVA71202111

main84540-33010iASV7#201810-202110

main84540-33020iAXVA70201810-202202

sub84540-33021

sub35572-48051

main84540-33021iAXVA70202202

89439BRACKET, SENSOR

main82715-33T60iASV70201810-202110

main82715-33T70iASV71201810-202110

89465SENSOR, OXYGEN

main89465-33650iASV71201810-202110

main89465-33660iASV70201810-202110

89467BSENSOR, AIR FUEL RATIO

main89467-06220iASV71201810-202110

main89467-12280iMXVA71202111

main89467-33290iAXVH71..IDN201810-202110

main89467-48270iASV70201810-202110

89615SENSOR, KNOCK CONTROL

main89615-20090iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

90105C0048

main90105-C0048

90119T0134

main90119-T0134

9155180835

main91551-80835

9165140620

main91651-40620

9167180612

main91671-80612

11 parts on this diagram · 22 diagrams in section
