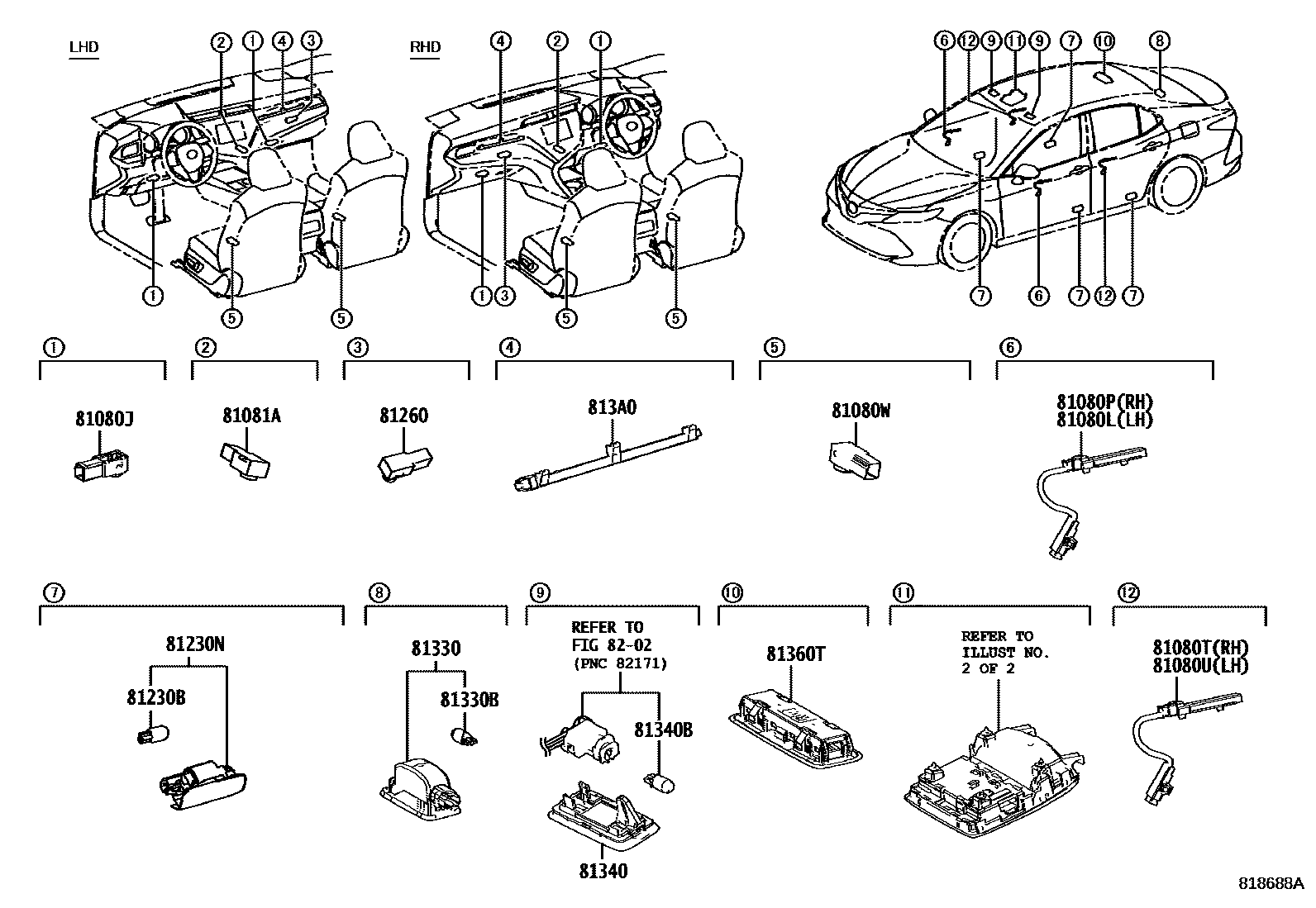

INTERIOR LAMP

0001 1 0002 1 0004 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-06400iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-06390iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH

main81080-06390iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH

main81080-06400iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-12080iASV7#,AXVH71..(20,20G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33300iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81230BBULB(FOR COURTESY LAMP)

main90981-12010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

12V 5W

81230NLAMP ASSY, COURTESY, LH

main81230-30200iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

81260LAMP ASSY, GLOVE BOX

main81080-33290iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXVA70,AXVH71,MXVA71201810-202112

12V 5W

81340LAMP ASSY, VANITY

main81340-0K030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main81340-33170iAXVA70,AXVH71,MXVA71202111

81340BBULB (FOR VANITY LAMP)

main90981-11062iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

12V 8W

81360TLAMP ASSY, SPOT

main81360-06100-B0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

GRAY,TRIM2#

main81360-06100-E0iAXVA70,AXVH71,MXVA71..(20G,20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

main81360-06130-B0iAXVA70..25202111

INDONESIA SPEC,GRAY,TRIM2#

sub81360-06100

main81360-06130-B0iAXVH71..RHD..HBDV202111

GRAY,TRIM2#

sub81360-06100

main81360-06130-E0iAXVH71..RHD..HBDV202111

NEUTRAL BEIGE,TRIM4#

sub81360-06100

main81360-06130-E0iAXVA70..25202111

INDONESIA SPEC,NEUTRAL BEIGE,TRIM4#

sub81360-06100

813A0LAMP ASSY, INSTRUMENT PANEL

main813A0-33010iASV7#..LHD..(20G,25Q,25V)201810-202110

main813A0-33020iASV7#,AXVH71..(20,20G,25V,HBD)..(IDN,MA,TH)201810-202112

8202

17 parts on this diagram · 3 diagrams in section
