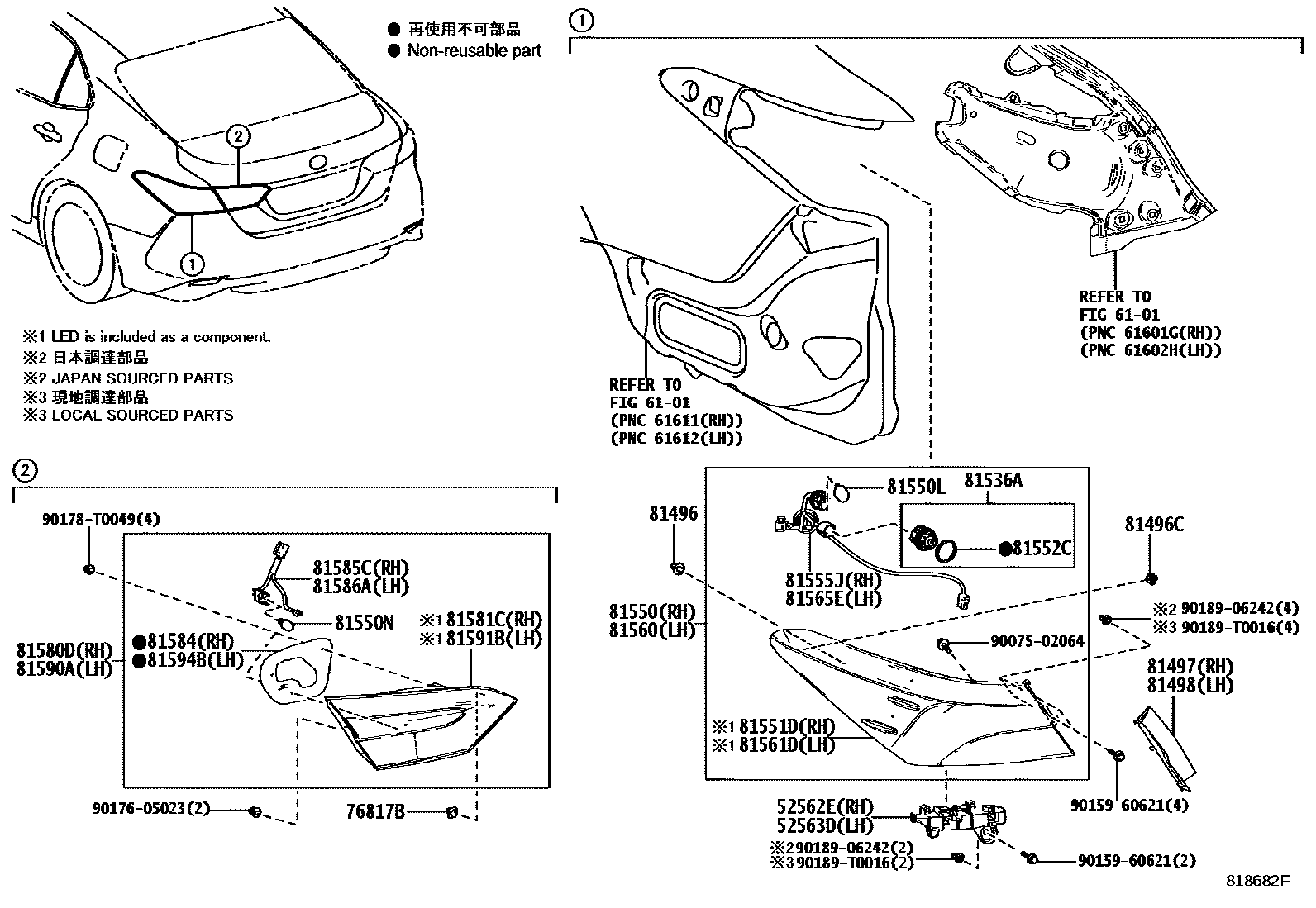

REAR COMBINATION LAMP

0001 1 0003 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-06150iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-06150iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

6101

76817BCLIP, REAR LAMP

main76817-26040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81497COVER, REAR COMBINATION LAMP, RH

main81497-06020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81498COVER, REAR COMBINATION LAMP, LH

main81498-06020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

81536ALED, REAR COMBINATION LAMP

main81536-52C80iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81550-06790iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81550-06800iAXVH71..IDN201810-202112

main81550-06A90iAXVA70,MXVA71..20G,25202111

main81550-06B10iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81551-06790iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81551-06800iAXVH71..IDN201810-202112

main81551-06A90iAXVA70,MXVA71..20G,25202111

main81551-06B10iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81552CGASKET, REAR COMBINATION LAMP

main90075-68010iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81560-06790iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81560-06800iAXVH71..IDN201810-202112

main81560-06A90iAXVA70,MXVA71..20G,25202111

main81560-06B10iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81561-06790iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81561-06800iAXVH71..IDN201810-202112

main81561-06A90iAXVA70,MXVA71..20G,25202111

main81561-06B10iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-06780iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81580DLAMP ASSY, REAR, RH

main81580-06680iASV70..25G..PH;ASV7#..(20G,25G,25V)..(IDN,VN)201810-202110

main81580-06690iASV71,AXVA70..RHD201810-202110

BRUNEI SPEC

main81580-06700iASV70..LHD..(25Q,25V)201810-202110

main81580-06720iAXVH71..IDN201810-202112

main81580-06810iASV70..MA201810-202110

main81580-06890iAXVA70,MXVA71..20G,25202111

main81580-06A00iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main81580-06A20iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

81581CLENS AND BODY, REAR LAMP, RH

main81581-06680iASV70..25G..PH;ASV7#..(20G,25G,25V)..(IDN,VN)201810-202110

main81581-06690iASV71,AXVA70..RHD201810-202110

BRUNEI SPEC

main81581-06700iASV70..LHD..(25Q,25V)201810-202110

main81581-06720iAXVH71..IDN201810-202112

main81581-06810iASV70..MA201810-202110

main81581-06890iAXVA70,MXVA71..20G,25202111

main81581-06A00iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main81581-06A20iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

81584PACKING, REAR LAMP RH

main81582-06690iAXVA70,MXVA71..20G,25201810-202110

main81582-06700iAXVH71..RHD..(IND,TH)201810-202112

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-06690iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81586ASOCKET & WIRE, REAR LAMP, LH

main81585-06690iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

81590ALAMP ASSY, REAR, LH

main81590-06680iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81590-06700iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81590-06710iAXVH71..IDN201810-202112

main81590-06890iAXVA70,MXVA71..20G,25202111

main81590-06A00iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81591BLENS AND BODY, REAR LAMP, LH

main81591-06680iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81591-06700iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81591-06710iAXVH71..IDN201810-202112

main81591-06890iAXVA70,MXVA71..20G,25202111

main81591-06A00iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81594BPACKING, REAR LAMP LH

main81592-06690iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81592-06700iAXVH71..IDN;ASV70..(25Q,25V)..(MA,PH,VN)201810-202112

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

90178T0049

main90178-T0049

9018906242

main90189-06242

90189T0016

main90189-T0016

32 parts on this diagram · 2 diagrams in section
