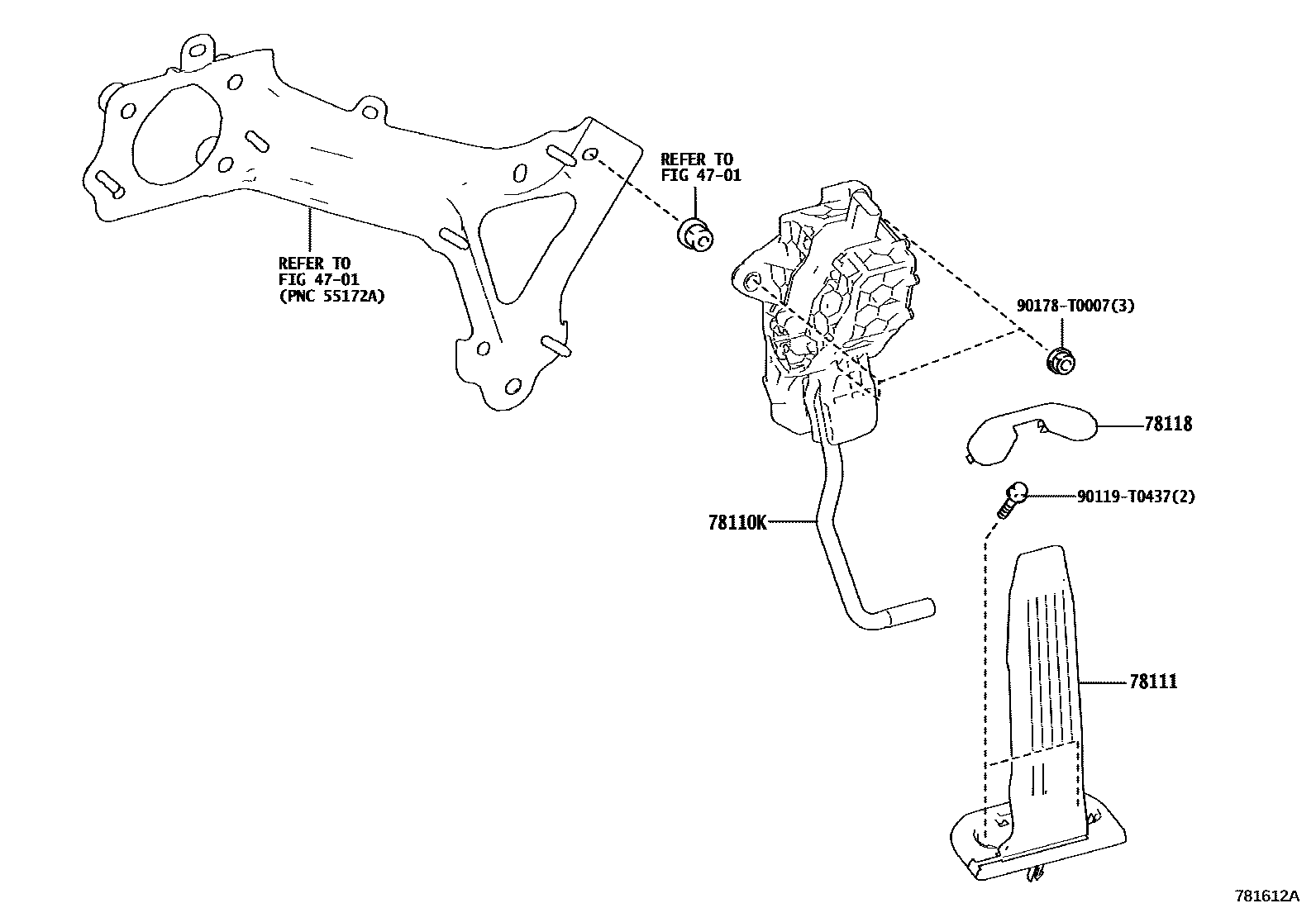

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06100iAXVA70..25Q202111

main78110-06140iASV7#..LHD201810-202103

sub78110-06141

main78110-06141iASV7#..LHD202104-202106

sub78110-06142

main78110-06142iAXVH71,MXVA71..LHD202107-202110

main78110-06150iASV7#,AXVH71..RHD201810-202103

sub78110-06151

main78110-06151iASV7#,AXVH71..RHD202104-202106

sub78110-06152

main78110-06152iAXVH71..RHD202107-202112

main78110-06160iAXVA70201810-202103

sub78110-06161

main78110-06161iAXVA70202104-202106

sub78110-06162

main78110-06162iAXVA70..RHD202107-202110

78111PEDAL, ACCELERATOR

main78101-33060iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202202

sub78101-33061

main78101-33061iAXVA70,AXVH71,MXVA71202203

78118PAD, ACCELERATOR PEDAL

main78117-33020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

90119T0437

main90119-T0437

90178T0007

main90178-T0007

6 parts on this diagram · 2 diagrams in section
