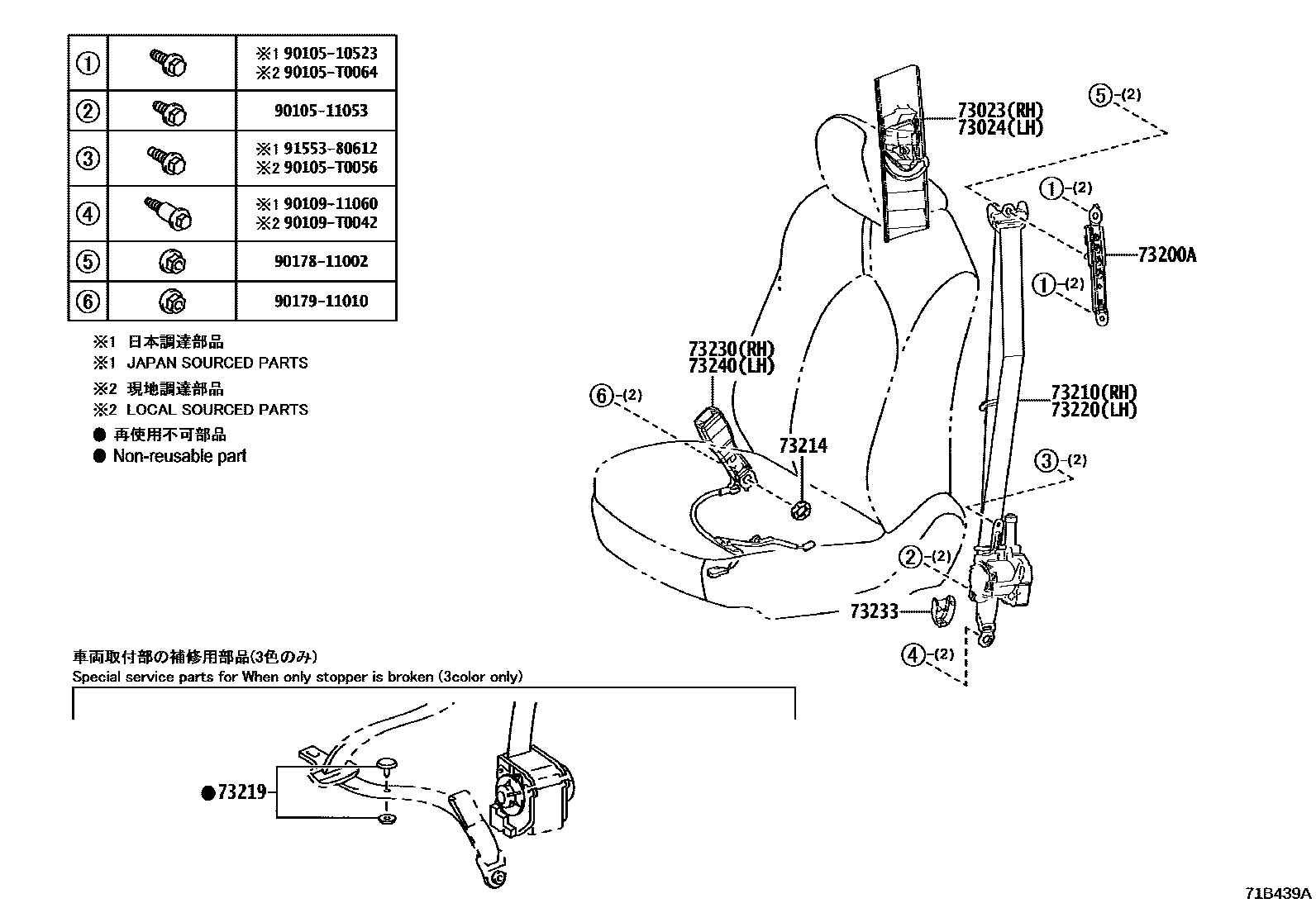

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-B0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

GRAY,TRIM1#,2#

main73023-06080-B0iAXVA70,AXVH71,MXVA71202111

GRAY,TRIM2#

main73023-06080-E0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-B0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

GRAY,TRIM1#,2#

main73024-06110-B0iAXVA70,AXVH71,MXVA71202111

GRAY,TRIM2#

main73024-06110-E0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06450-A0iASV7#,AXVA70,AXVH71201810-201904

NEUTRAL BEIGE,TRIM4#

sub73210-06450

main73210-06450-A1iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201904-202112

NEUTRAL BEIGE/IVORY,TRIM4#

sub73210-06450

main73210-06450-C1iASV7#,AXVA70,AXVH71..IDN,IND,PH,TH,VN201810-201904

BLACK,TRIM2#

sub73210-06450

main73210-06450-C1iASV7#..MA201810-201904

BLACK,TRIM1#,2#

sub73210-06450

main73210-06450-C4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201904-202112

BLACK,TRIM2#

sub73210-06450

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

(L)

main73214-75010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(J)

73219STOPPER, TONGUE PLATE

main73219-33010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK

main73219-33020iAXVA70,AXVH71,MXVA71201810-202112

GRAY

main73219-33030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06420-A0iASV7#,AXVA70,AXVH71201810-201904

NEUTRAL BEIGE,TRIM4#

sub73220-06420

main73220-06420-A1iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201904-202112

NEUTRAL BEIGE/IVORY,TRIM4#

sub73220-06420

main73220-06420-C1iASV7#,AXVA70,AXVH71..IDN,IND,PH,TH,VN201810-201904

BLACK,TRIM2#

sub73220-06420

main73220-06420-C1iASV7#..MA201810-201904

BLACK,TRIM1#,2#

sub73220-06420

main73220-06420-C4iAXVA70,AXVH71,MXVA71201904-202112

BLACK,TRIM2#

sub73220-06420

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06830-C0iASV70..25G..IDN201810-202110

BLACK,TRIM2#

main73230-06830-E0iASV70..25G..IDN201810-202110

NEUTRAL BEIGE,TRIM4#

main73230-06840-C0iASV7#..MA201810-202110

BLACK,TRIM1#,2#

main73230-06840-C0iASV7#..MA201810-202112

BLACK,TRIM2#

main73230-06840-E0iASV7#,AXVH71..(20,20G,25V,HBD)..(IDN,MA,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

main73230-06860-C0iMXVA71..20G201810-202110

BLACK,TRIM2#

main73230-06860-E0iASV70..25G..PH201810-202110

NEUTRAL BEIGE,TRIM4#

main73230-06870-C0iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)201810-202110

BLACK,TRIM2#

main73230-06870-E0iASV7#..LHD..(20G,25Q,25V)201810-202110

NEUTRAL BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

BLACK,TRIM2#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06830-C0iASV70..25G..PH201810-202110

BLACK,TRIM2#

main73230-06830-E0iASV70..25G..PH201810-202110

NEUTRAL BEIGE,TRIM4#

main73230-06840-C0iASV7#..LHD..(20G,25Q,25V)201810-202110

BLACK,TRIM2#

main73230-06840-E0iASV7#..LHD..(20G,25Q,25V)201810-202110

NEUTRAL BEIGE,TRIM4#

main73230-06860-C0iASV70..25G..IDN201810-202110

BLACK,TRIM2#

main73230-06860-E0iASV70..25G..IDN201810-202110

NEUTRAL BEIGE,TRIM4#

main73230-06870-C0iASV7#,AXVH71..(20,20G,25V,HBD)..(IDN,TH)201810-202112

BLACK,TRIM2#

main73230-06870-C0iASV7#,AXVH71..(20,20G,25V,HBD)..(IDN,TH)201810-202110

BLACK,TRIM1#,2#

main73230-06870-E0iASV7#,AXVH71..(20,20G,25V,HBD)..(IDN,MA,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

9010510523

main90105-10523

9010511053

main90105-11053

90105T0056

main90105-T0056

90105T0064

main90105-T0064

9010911060

main90109-11060

90109T0042

main90109-T0042

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
