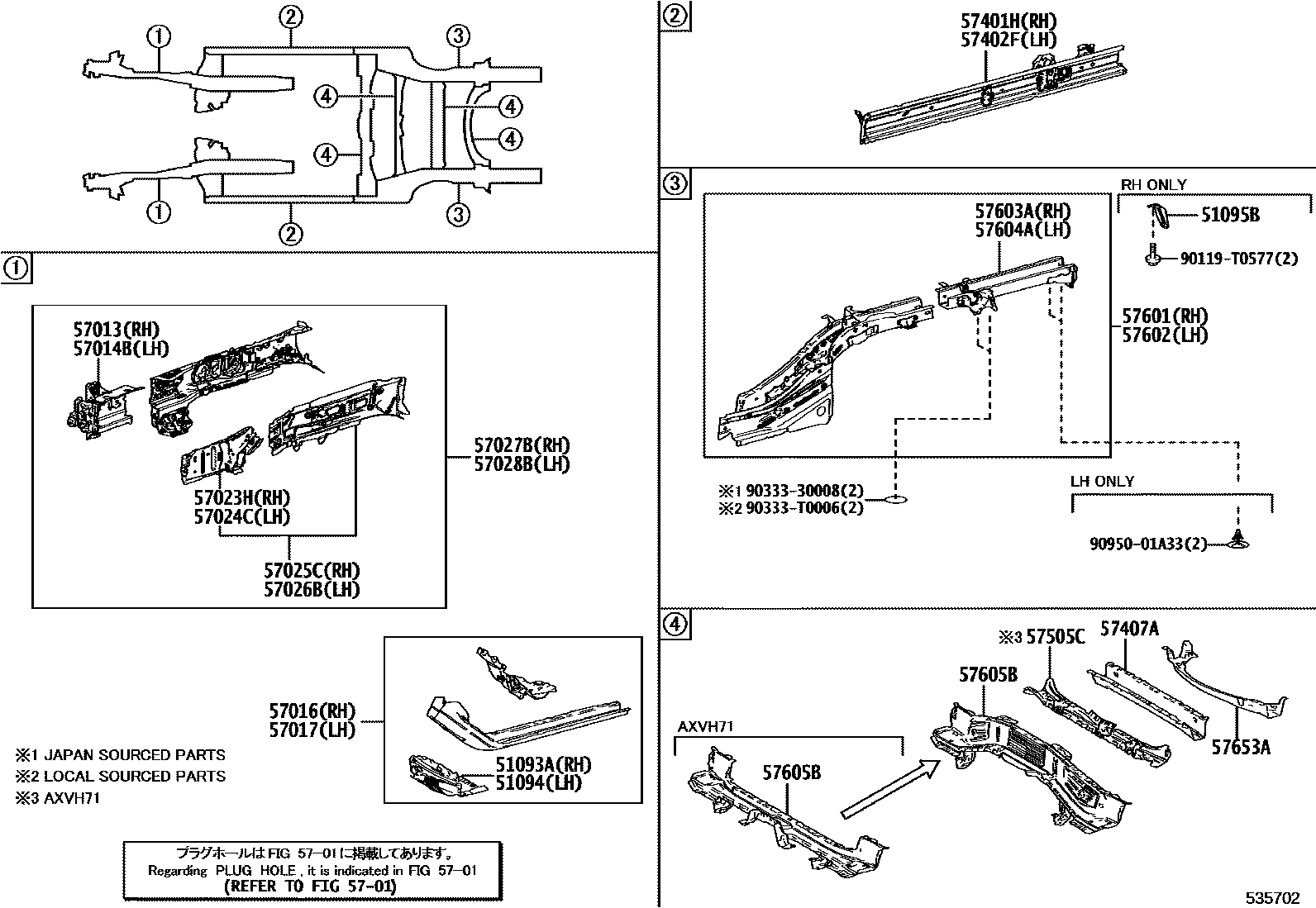

FLOOR SIDE MEMBER

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-06030iASV7#,AXVA70,AXVH71201810-202110

main51093-06030iAXVH71..IND202110-202112

(L)

main51093-33010iAXVH71..IND202110-202112

(J)

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-06030iASV7#,AXVA70,AXVH71201810-202110

main51094-06030iAXVH71..IND202110-202112

(L)

main51094-33010iAXVA70,AXVH71,MXVA71202110-202112

(J)

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-06020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202402

sub57014-06041

main57014-06041iAXVA70,AXVH71,MXVA71202403

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06180iAXVA70,AXVH71,MXVA71201810-202112

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06160iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06905iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06905iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06310iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06320iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06060iASV7#,AXVA70,AXVH71201810-202104

sub57407-06061

main57407-06061iASV7#,AXVA70,AXVH71202104-202110

main57407-06061iAXVH71..IND202110-202112

(L)

main57407-33011iAXVH71..IND202110-202112

(J)

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-06040iAXVH71201810-202110

main57505-06040iAXVH71..IND202110-202112

(L)

main57505-33010iAXVH71..IND202110-202112

(J)

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06460iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06290iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06050iASV7#,AXVA70,AXVH71201810-202110

main57603-06050iAXVH71..IND202110-202112

(L)

main57603-33030iAXVH71..IND202110-202112

(J)

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06080iAXVA70,AXVH71,MXVA71202110-202112

(L)

main57604-06080iASV7#,AXVA70,AXVH71201810-202110

main57604-33030iAXVH71..IND202110-202112

(J)

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06260iASV7#,AXVA70201810-201910

sub57605-06261

main57605-06261iAXVA70,MXVA71202111

(L)

main57605-06261iASV7#,AXVA70201911-202110

main57605-06270iAXVH71202110-202112

(L)

main57605-06270iAXVH71201810-202110

main57605-33131iAXVA70,MXVA71202111

(J)

main57605-33140iAXVH71..IND202110-202112

(J)

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06140iASV7#,AXVA70,AXVH71201810-202110

main57653-06140iAXVH71..IND202110-202112

(L)

main57653-33100iAXVH71..IND202110-202112

(J)

90119T0577

main90119-T0577

9033330008

main90333-30008

90333T0006

main90333-T0006

9095001A33

main90950-01A33

28 parts on this diagram · 1 diagram in section
