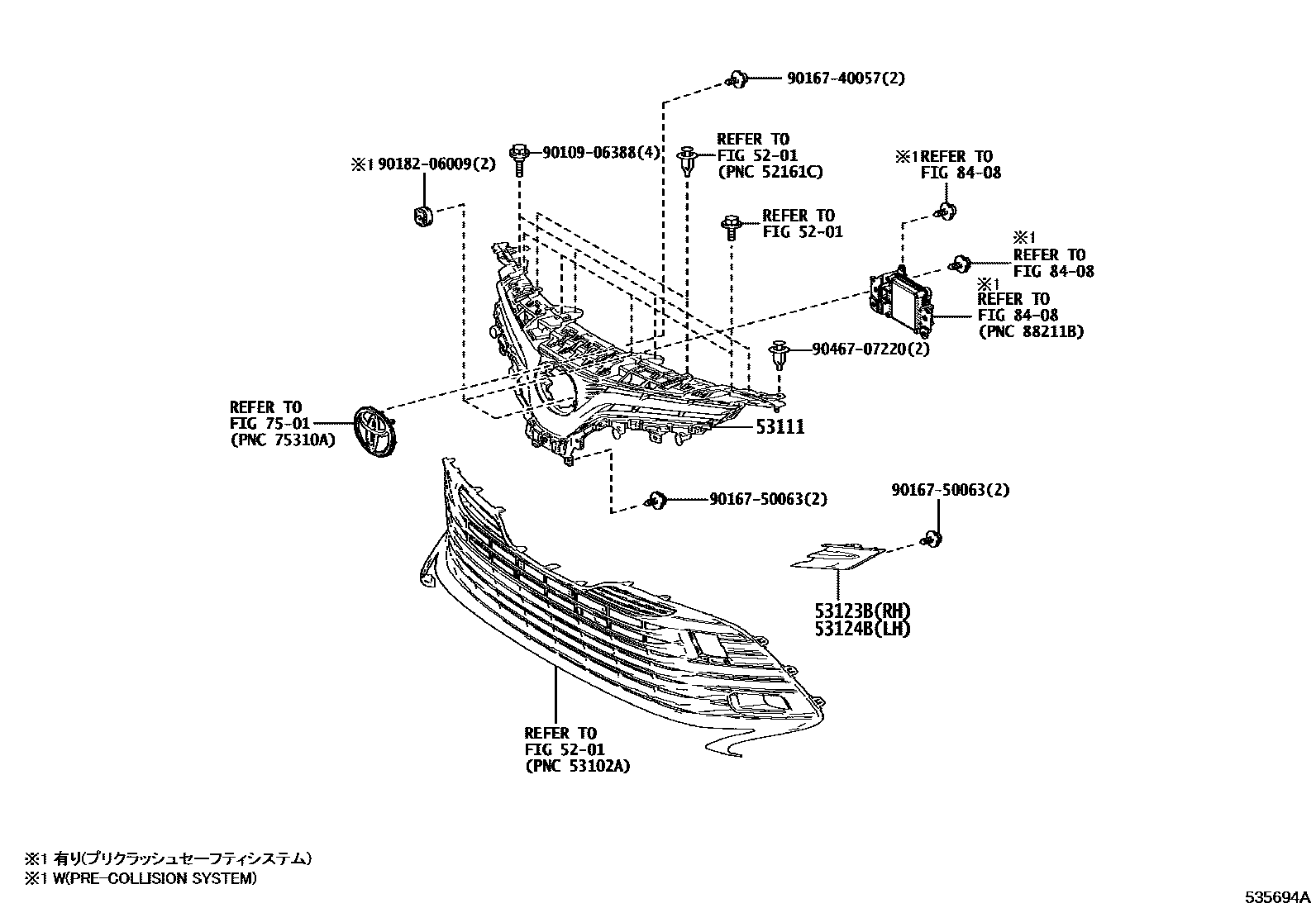

RADIATOR GRILLE

0001 1 0003 1

5201

53111GRILLE, RADIATOR

main53101-06C30iASV7#,AXVA70201810-202110

main53101-06C40iAXVH71..IDN201810-202112

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main53123-06250iAXVA70,MXVA71202111

main53123-06260iAXVH71202111

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main53124-06300iAXVA70,MXVA71202111

main53124-06310iAXVH71202111

7501

8408

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

9018206009

main90182-06009

9046707220

main90467-07220

11 parts on this diagram · 2 diagrams in section
