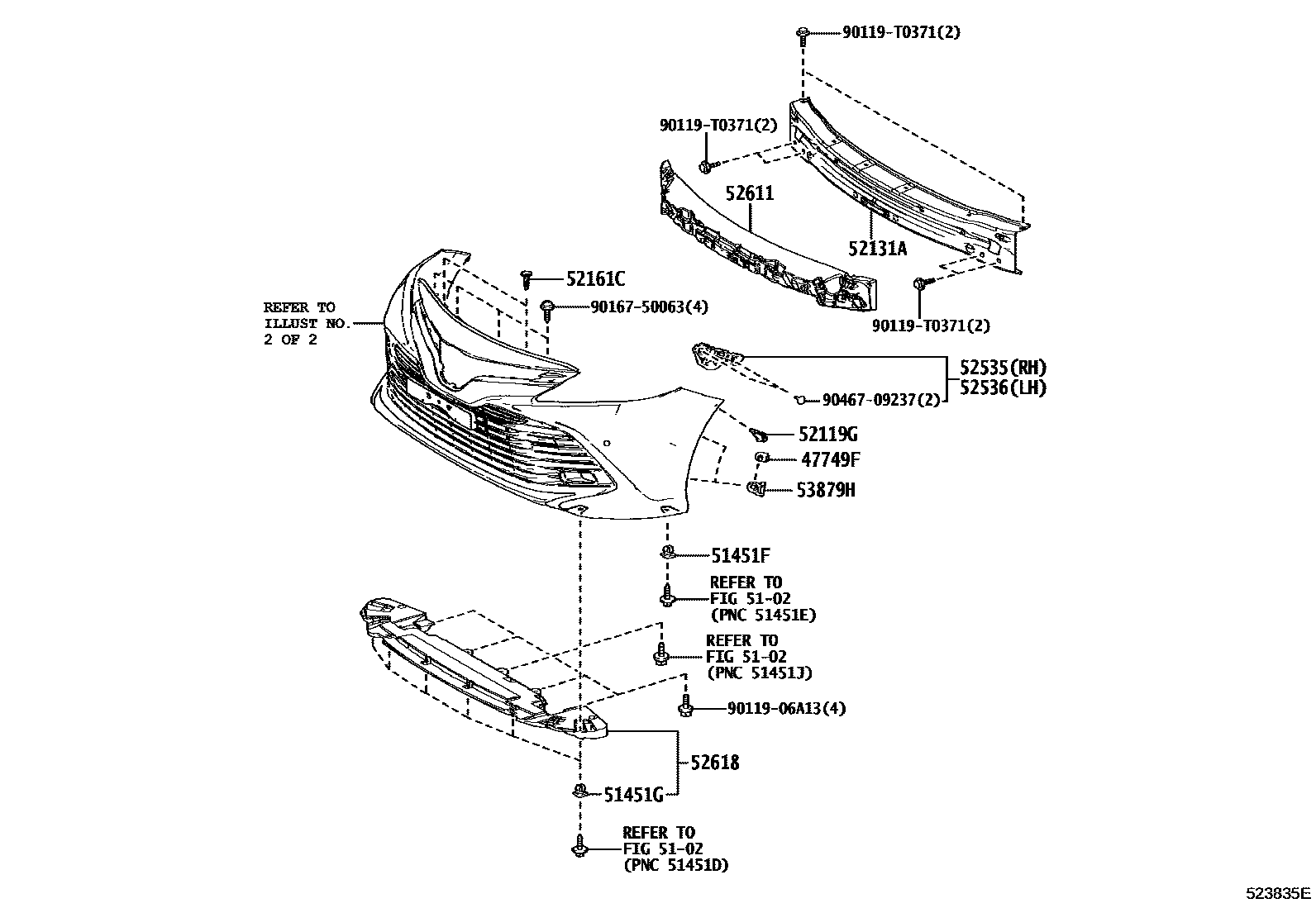

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0007 1

47749FCLIP, PIN HOLD

main47749-33030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

5102

51451FGROMMET, NO.1

main90189-06193iAXVH71..IND202112

(J)

main90189-06237iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

(J)

main90189-T0024iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202108-202112

(L)

51451GGROMMET, NO.2

main90189-06237iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

(J)

main90189-T0024iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202108-202112

(L)

52119GCLIP, NO.1

main90467-05170iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(J)

main90467-T0047iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202108-202112

(L)

52131AREINFORCEMENT, FRONT BUMPER

main52131-06210iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202311

sub52131-06211

main52131-06211iAXVA70,AXVH71,MXVA71202312

52161CPIECE, FRONT BUMPER

main52161-0K040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06490iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main52611-06600iAXVA70,AXVH71,MXVA71202111

52618ABSORBER, FRONT BUMPER, LOWER

main52618-06070iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

53879HRETAINER, FRONT FENDER LINER

main53879-33030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

9011906A13

main90119-06A13

90119T0371

main90119-T0371

9016750063

main90167-50063

9046709237

main90467-09237

16 parts on this diagram · 4 diagrams in section
