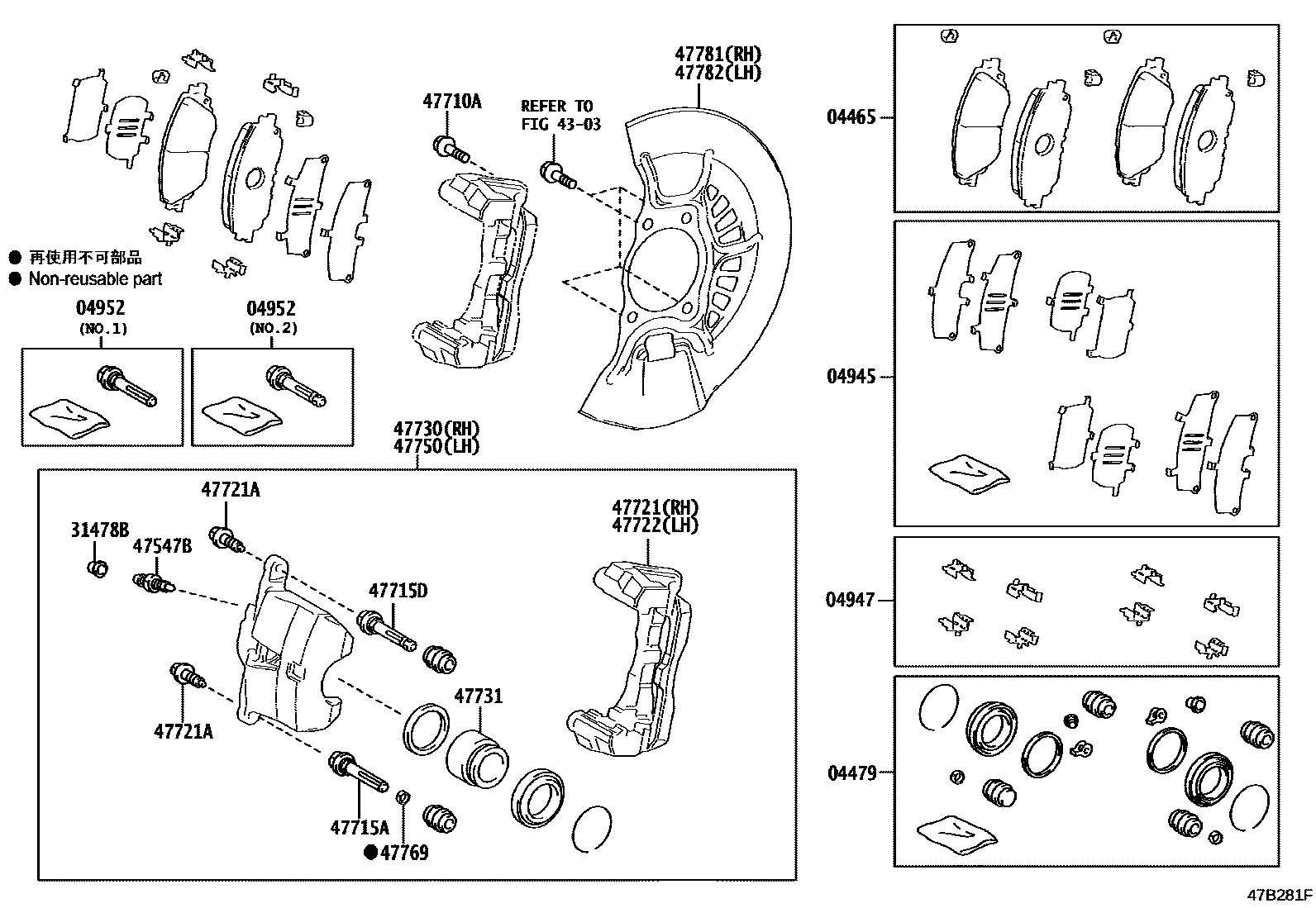

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-06160iAXVA70,AXVH71,MXVA71¥10,100201810-202112

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06330iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06210iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06121iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0K020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NO.1:REFER ILLUST.

main04952-0K020iAXVA70,AXVH71,MXVA71202111

NO.1

main04952-0K030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NO.2:REFER ILLUST.

main04952-0K030iAXVA70,AXVH71,MXVA71202111

NO.2

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0186iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0K220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0K220iAXVA70,AXVH71,MXVA71201810-202112

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06331iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥80201810-202112

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06331iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06331iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47731PISTON, FRONT DISC BRAKE

main47731-06330iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06331iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0K220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202409

main47781-06190iAXVA70,AXVH71,MXVA71202409

(L)

main47781-33060iAXVA70,AXVH71,MXVA71¥1,050202409

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202409

main47782-06190iAXVA70,AXVH71,MXVA71202409

(L)

main47782-33060iAXVA70,AXVH71,MXVA71¥1,050202409

(J)

20 parts on this diagram · 1 diagram in section
