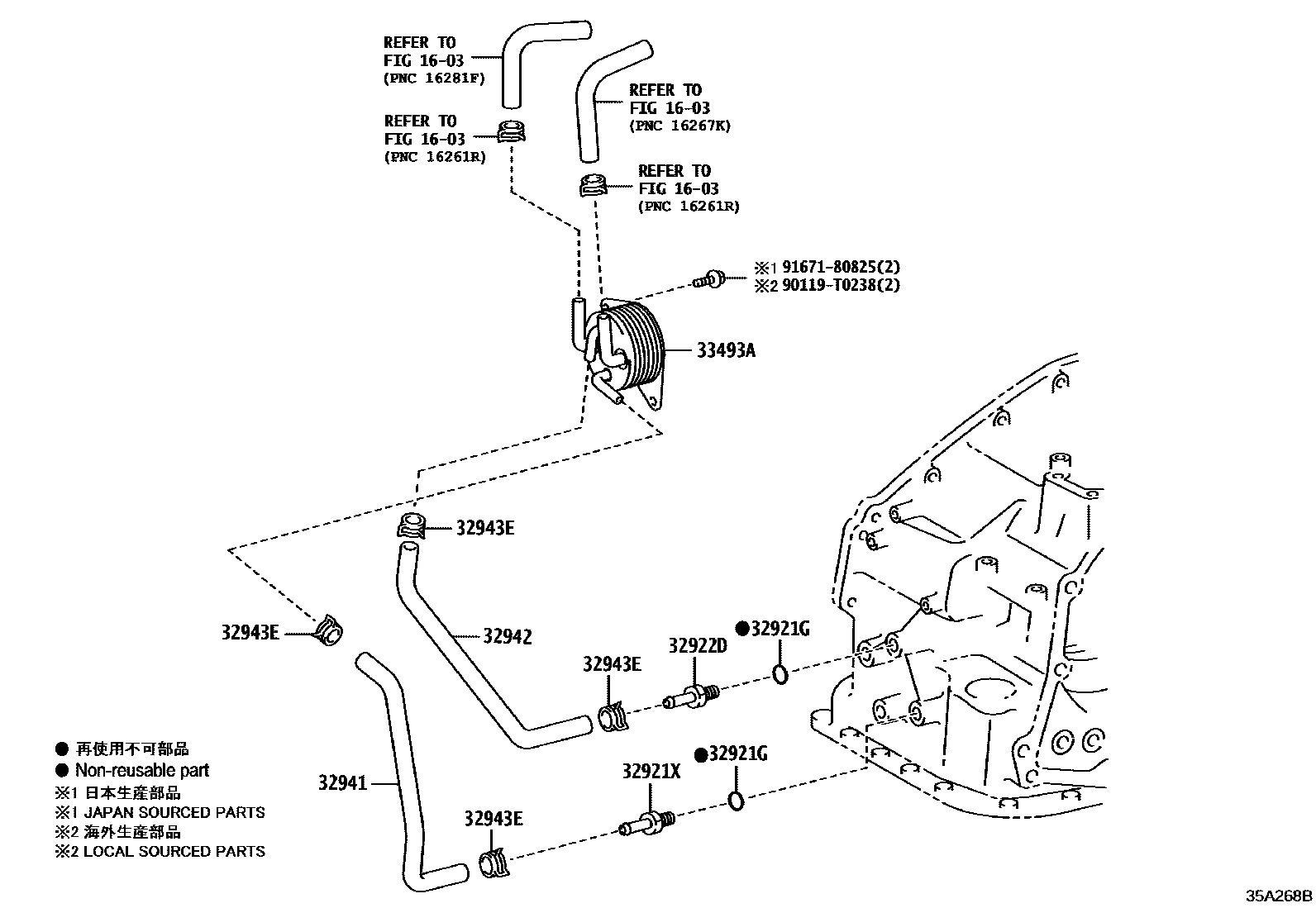

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U761E 0003 1UB80E

1603

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iASV71,AXVA70¥200201810-202110

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iASV70¥750201810-202110

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iASV70¥750201810-202110

32941HOSE, OIL COOLER INLET, NO.1

main32941-06180iAXVA70201810-202110

NO.1

main32941-06190iAXVA70201810-202110

NO.2

main32941-06200iASV70201810-202110

NO.1

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06170iAXVA70201810-202110

NO.1

main32942-06180iAXVA70201810-202110

NO.2

main32942-06190iASV70201810-202110

NO.1

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004iASV7#¥180201810-202110

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33060iAXVA70¥15,800201810-201910

sub33493-33061¥11,900

main33493-33061iAXVA70¥11,900201911-202110

main33493-33070iASV7#201810-202110

90119T0238

main90119-T0238¥80

9167180825

main91671-80825¥80

10 parts on this diagram · 3 diagrams in section
