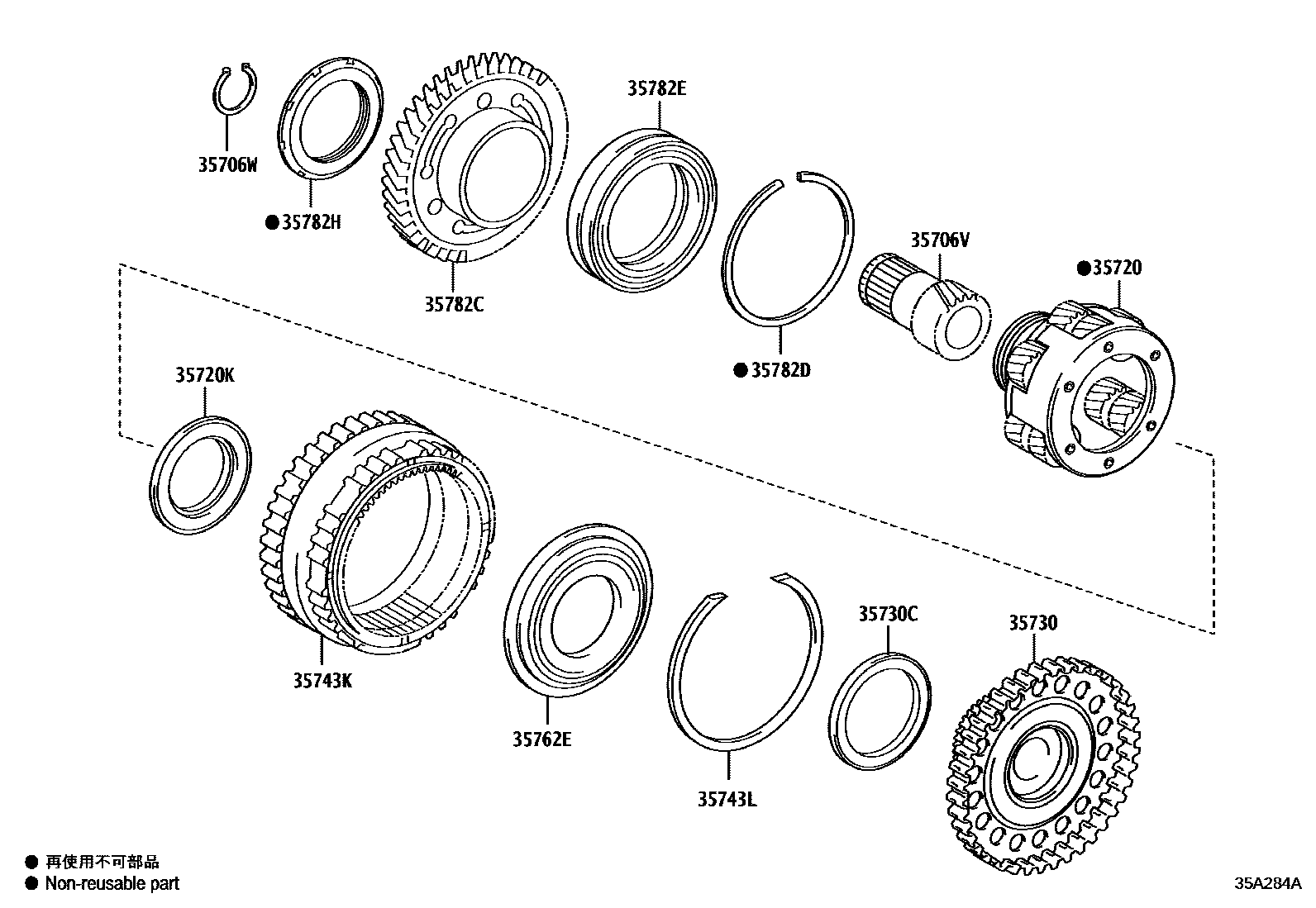

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U760E,U761E 0002 1UB80E(FRONT PLANETARY GEAR) 0003 1UB80E(REAR PLANETARY GEAR)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33040iAXVA70¥3,030201810-202110

AISIN:REFER 35-01

main35706-73010iASV70¥9,300201810-202110

(J)

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASV7#¥60201810-202110

35720GEAR ASSY, FRONT PLANETARY

main35720-33070iASV7#¥39,200201810-202110

main35720-33090iAXVA70¥30,300201810-202110

AISIN:REFER 35-01

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62011iASV70¥1,200201810-202110

(J)

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33030iASV7#¥9,300201810-202110

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASV70¥1,260201810-202110

(J)

35743GEAR, FRONT PLANETARY RING

main35743-33060iAXVA70¥8,500201810-202110

35743KGEAR, PLANETARY RING

main35743-33040iASV7#¥33,300201810-202110

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iASV70¥140201810-202110

(J)

35762EFLANGE, PLANETARY RING GEAR

main35762-73010iASV7#¥1,020201810-202110

35782CGEAR, COUNTER DRIVE

main35782-33040iASV7#¥14,200201810-202110

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99154iASV70¥140201810-202110

(J)

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72002iASV70¥6,800201810-202110

(J)

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASV70¥330201810-202110

(J)

14 parts on this diagram · 3 diagrams in section
