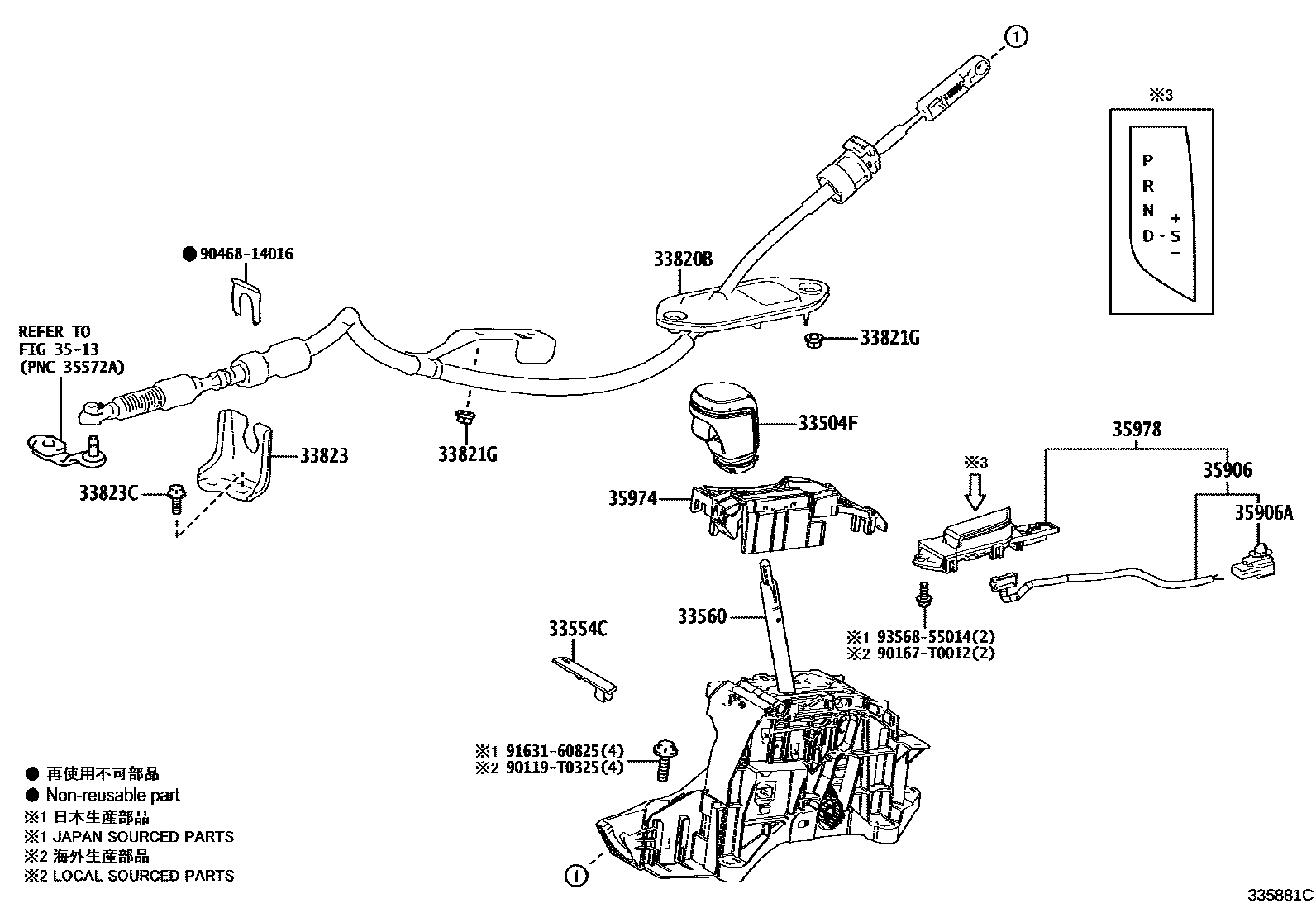

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06390-C0iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

BLACK,TRIM1#,2#,4#

main33504-06390-C0iAXVA70,AXVH71,MXVA71201812-202112

BLACK,TRIM2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-06110iASV7#,AXVA70,AXVH71..(20G,25G,25V,HBD,HBDG,HBDV)..(IDN,TH)201810-202110

main33554-33130iASV7#..LHD201810-202110

main33554-33180iASV70..25V..IDN201810-202110

BRUNEI SPEC

main33554-33180iAXVA70,AXVH71..(25,HBD)..(IND,TH)201810-202112

main33554-33180iAXVH71..RHD..HBDV202111

BURNEI SPEC

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06460iASV7#,AXVA70,AXVH71..IDN,MA,TH201810-202110

main33560-33380iAXVA70,AXVH71,MXVA71..LHD201810-202110

main33560-33400iAXVH71..IND201812-202112

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06560iAXVA70..RHD201810-202110

main33820-06570iASV7#..LHD201810-202110

main33820-06580iASV7#..RHD201810-202110

main33820-06600iAXVH71..IDN201810-202112

main33820-06660iAXVH71..LHD202111

main33820-06670iAXVA70..25Q202111

main33820-06680iMXVA71202111

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-T0007iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

(L)

main90179-06274iAXVH71..IND201812-202112

main90179-06274iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06110iAXVA70201810-202110

main33823-06120iASV7#201810-202110

main33823-06130iAXVH71..IDN,TH201810-202110

main33823-06160iMXVA71202111

main33823-33080iAXVH71..IND201812-202112

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iASV7#201810-202110

(J)

main90119-T0102iASV7#201810-202110

(L)

main90119-T0342iAXVA70,AXVH71..IDN,TH201810-202110

(L)

main91671-80820iAXVA70,AXVH71..(25,25E,25G,25V,HBD)..(IND,TH)201810-202110

(J)

main91671-80820iAXVH71..IND201812-202112

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06310iASV7#,AXVA70..RHD201810-202110

main35906-33180iAXVA70..25Q201810-202110

main35906-33190iAXVH71..LHD202111

main35906-33210iAXVH71..IDN201810-202112

main35906-33270iMXVA71202111

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iASV7#,AXVA70201810-202110

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06180iASV7#,AXVA70,AXVH71..IDN,MA,TH201810-202110

main35974-33240iAXVA70,AXVH71,MXVA71..LHD201810-202110

main35974-33250iAXVH71..IND201812-202112

35978INDICATOR, SHIFT POSITION

main35978-06290iASV7#,AXVA70..RHD201810-202110

main35978-33180iAXVA70..25Q201810-202110

main35978-33190iAXVH71..LHD202111

main35978-33210iAXVH71..IDN201810-202112

main35978-33370iMXVA71202111

90119T0325

main90119-T0325

90167T0012

main90167-T0012

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

17 parts on this diagram · 7 diagrams in section
