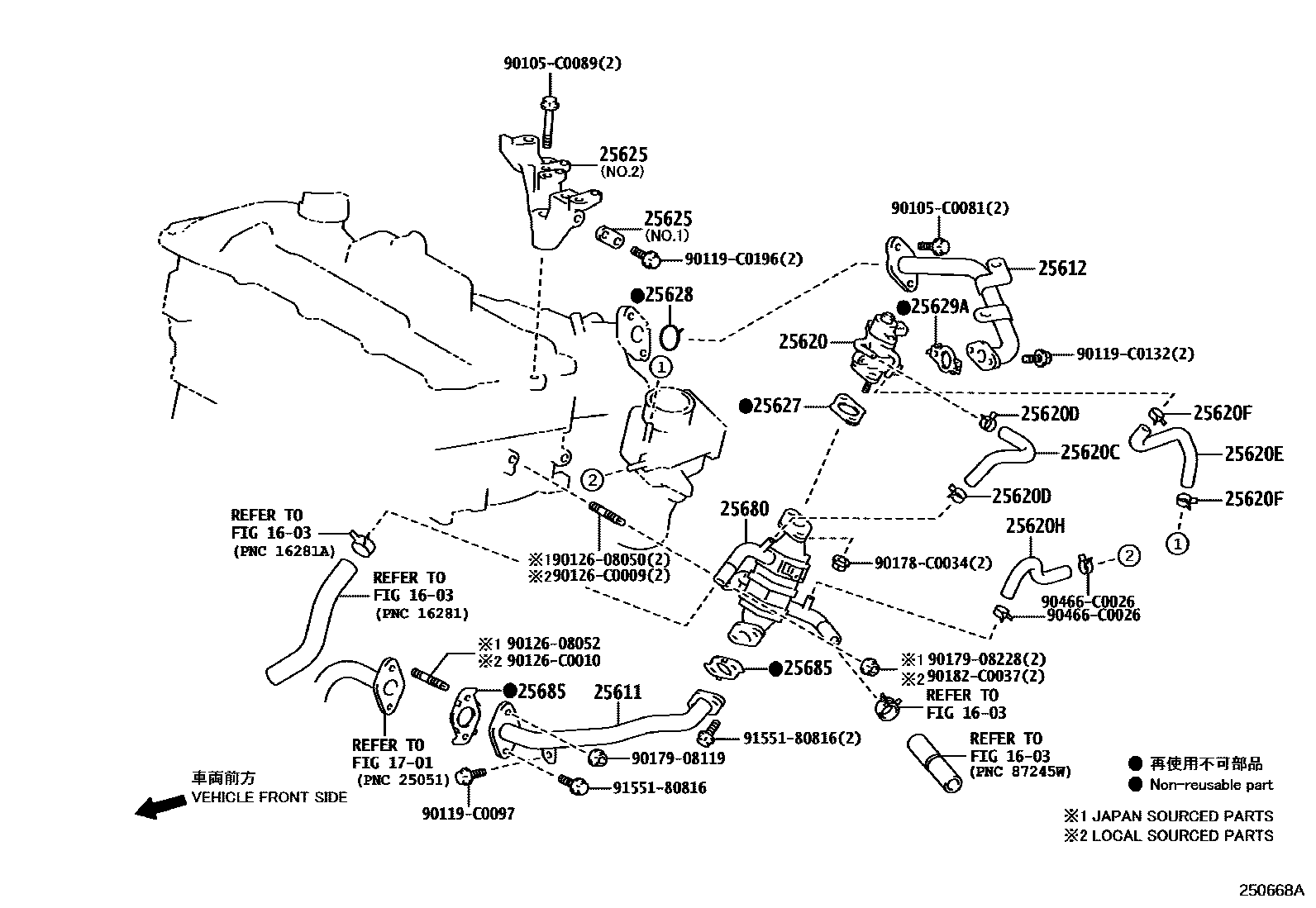

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25611CONNECTOR, EGR PIPE
(L)
(J)
25612PIPE, EGR, NO.2
25620VALVE ASSY, EGR
25620CHOSE, WATER BY-PASS, NO.1
(L)
(J)
25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)
25620EHOSE, WATER BY-PASS NO.2
(L)
(J)
25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)
25620HHOSE ASSY, WATER BY-PASS
(L)
(J)
25625BRACKET, EGR VALVE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25629GASKET, EGR VALVE ADAPTER
25629AGASKET, EGR PIPE, NO.2
25680COOLER ASSY, EGR
25685GASKET, EGR COOLER, NO.1
90105C0081
main90105-C0081
90105C0089
main90105-C0089
90119C0097
main90119-C0097
90119C0132
main90119-C0132
90119C0196
main90119-C0196
9012608050
main90126-08050
9012608052
main90126-08052
90126C0009
main90126-C0009
90126C0010
main90126-C0010
90178C0034
main90178-C0034
9017908119
main90179-08119
9017908228
main90179-08228
90182C0037
main90182-C0037
90466C0026
main90466-C0026
9155180816
main91551-80816
32 parts on this diagram · 5 diagrams in section
