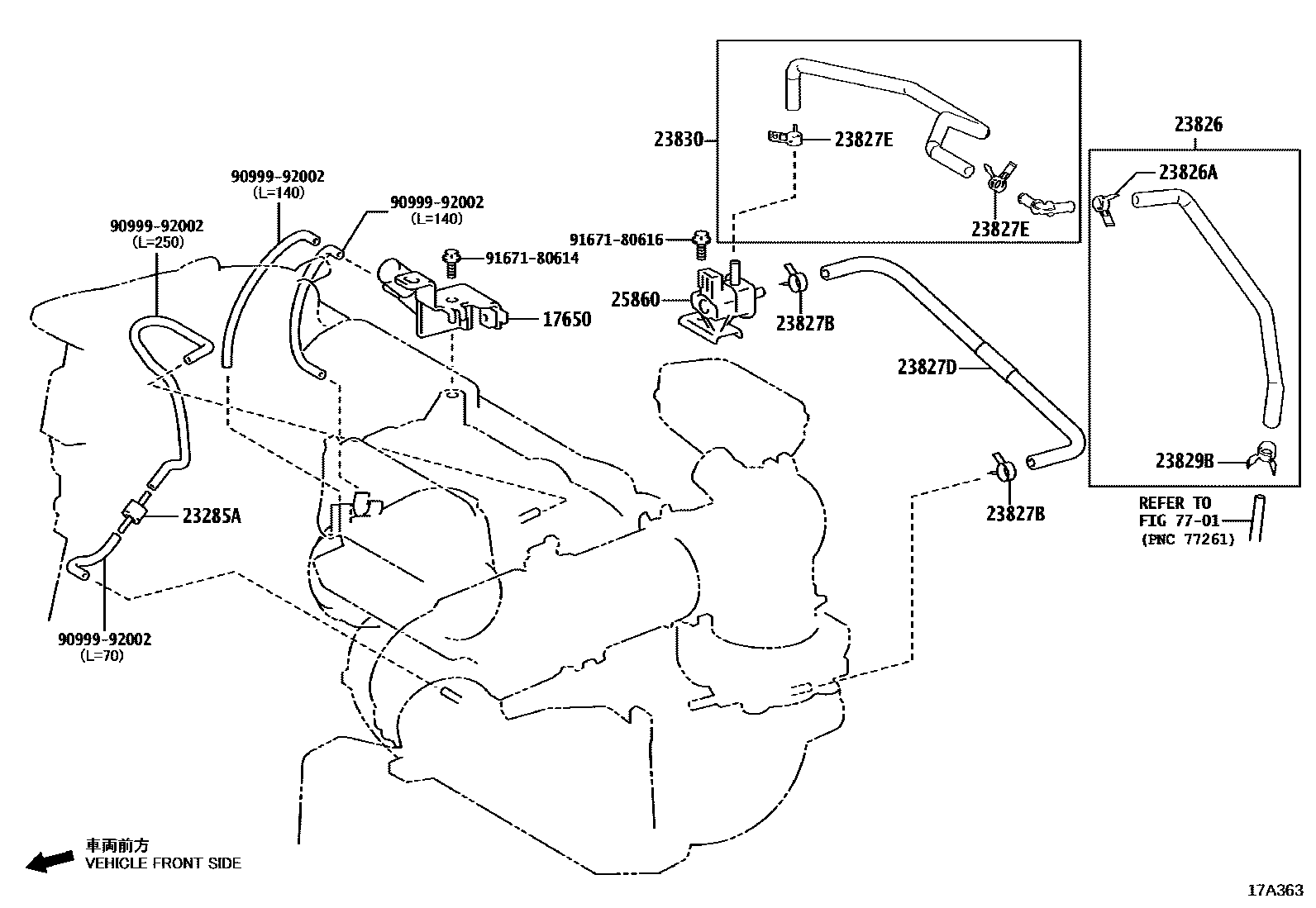

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i2ARFE..ASV70201810-202110

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASV70201810-202110

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-0V270i2ARFE..ASV70201810-202110

main23820-0V280i6AR#..ASV71201810-202110

main23820-F0050iA25AFKB,A25AFKS..AXVA70201810-202110

main23820-F0060iA25AFXS..AXVH71..IDN201810-202112

main23826-24180iM20AFKS..MXVA71202111

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11004i2ARFE,6AR#..ASV7#201810-202110

main90466-13005iA25AFKB,A25AFKS..AXVA70201810-202110

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005i2ARFE..ASV70201810-202110

23827DHOSE, FUEL VAPOR FEED, NO.2

main23826-24020iM20AFKS..MXVA71202111

main23827-0V220i2ARFE..ASV70201810-202110

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11004i2ARFE..ASV70201810-202110

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005i2ARFE..ASV70201810-202110

main90466-15004iA25AFKB,A25AFKS..AXVA70201810-202110

main96136-41901iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0V220i2ARFE..ASV70201810-202110

main23830-0V230i6AR#..ASV71201810-202110

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V150i6AR#..ASV71201810-202110

main25860-24020iM20AFKS..MXVA71202111

main25860-25020iA25AFXS..AXVH71201810-202112

main25860-25040iA25AFKB,A25AFKS..AXVA70201810-202110

main25860-36020i2ARFE..ASV70201810-202110

7701

9099992002

main90999-92002

9167180614

main91671-80614

9167180616

main91671-80616

14 parts on this diagram · 5 diagrams in section
